Summary
This experiment investigates telescope observation quality. Plackett-Burman screening of aperture, focal ratio, eyepiece focal length, tracking rate, and cooling time for image sharpness and limiting magnitude.
The design varies 5 factors: aperture mm (mm), ranging from 80 to 300, focal ratio (f/), ranging from 4 to 12, eyepiece mm (mm), ranging from 6 to 25, tracking rate (arcsec/s), ranging from 0.5 to 2.0, and cooldown min (min), ranging from 15 to 90. The goal is to optimize 2 responses: sharpness (pts) (maximize) and limiting mag (mag) (maximize). Fixed conditions held constant across all runs include mount type = equatorial, site = suburban.
A Plackett-Burman screening design was used to efficiently test 5 factors in only 8 runs. This design assumes interactions are negligible and focuses on identifying the most influential main effects.
Key Findings
For sharpness, the most influential factors were aperture mm (49.1%), eyepiece mm (16.0%), cooldown min (14.8%). The best observed value was 7.5 (at aperture mm = 300, focal ratio = 4, eyepiece mm = 6).
For limiting mag, the most influential factors were aperture mm (44.3%), focal ratio (26.8%), cooldown min (15.5%). The best observed value was 13.2 (at aperture mm = 300, focal ratio = 4, eyepiece mm = 6).
Recommended Next Steps
- Follow up with a response surface design (CCD or Box-Behnken) on the top 3–4 factors to model curvature and find the true optimum.
- Consider whether any fixed factors should be varied in a future study.
- The screening results can guide factor reduction — drop factors contributing less than 5% and re-run with a smaller, more focused design.
Experimental Setup
Factors
| Factor | Low | High | Unit |
|---|---|---|---|
aperture_mm | 80 | 300 | mm |
focal_ratio | 4 | 12 | f/ |
eyepiece_mm | 6 | 25 | mm |
tracking_rate | 0.5 | 2.0 | arcsec/s |
cooldown_min | 15 | 90 | min |
Fixed: mount_type = equatorial, site = suburban
Responses
| Response | Direction | Unit |
|---|---|---|
sharpness | ↑ maximize | pts |
limiting_mag | ↑ maximize | mag |
Configuration
use_cases/153_telescope_observation/config.json
{
"metadata": {
"name": "Telescope Observation Quality",
"description": "Plackett-Burman screening of aperture, focal ratio, eyepiece focal length, tracking rate, and cooling time for image sharpness and limiting magnitude"
},
"factors": [
{
"name": "aperture_mm",
"levels": [
"80",
"300"
],
"type": "continuous",
"unit": "mm"
},
{
"name": "focal_ratio",
"levels": [
"4",
"12"
],
"type": "continuous",
"unit": "f/"
},
{
"name": "eyepiece_mm",
"levels": [
"6",
"25"
],
"type": "continuous",
"unit": "mm"
},
{
"name": "tracking_rate",
"levels": [
"0.5",
"2.0"
],
"type": "continuous",
"unit": "arcsec/s"
},
{
"name": "cooldown_min",
"levels": [
"15",
"90"
],
"type": "continuous",
"unit": "min"
}
],
"fixed_factors": {
"mount_type": "equatorial",
"site": "suburban"
},
"responses": [
{
"name": "sharpness",
"optimize": "maximize",
"unit": "pts"
},
{
"name": "limiting_mag",
"optimize": "maximize",
"unit": "mag"
}
],
"settings": {
"operation": "plackett_burman",
"test_script": "use_cases/153_telescope_observation/sim.sh"
}
}
Experimental Matrix
The Plackett-Burman Design produces 8 runs. Each row is one experiment with specific factor settings.
| Run | aperture_mm | focal_ratio | eyepiece_mm | tracking_rate | cooldown_min |
|---|---|---|---|---|---|
| 1 | 300 | 12 | 25 | 0.5 | 15 |
| 2 | 80 | 4 | 25 | 2.0 | 15 |
| 3 | 80 | 12 | 6 | 2.0 | 15 |
| 4 | 300 | 12 | 25 | 2.0 | 90 |
| 5 | 80 | 12 | 6 | 0.5 | 90 |
| 6 | 300 | 4 | 6 | 2.0 | 90 |
| 7 | 80 | 4 | 25 | 0.5 | 90 |
| 8 | 300 | 4 | 6 | 0.5 | 15 |
Step-by-Step Workflow
1
Preview the design
Terminal
$ doe info --config use_cases/153_telescope_observation/config.json
2
Generate the runner script
Terminal
$ doe generate --config use_cases/153_telescope_observation/config.json \
--output use_cases/153_telescope_observation/results/run.sh --seed 42
3
Execute the experiments
Terminal
$ bash use_cases/153_telescope_observation/results/run.sh
4
Analyze results
Terminal
$ doe analyze --config use_cases/153_telescope_observation/config.json
5
Get optimization recommendations
Terminal
$ doe optimize --config use_cases/153_telescope_observation/config.json
6
Multi-objective optimization
With 2 competing responses, use --multi to find the best compromise via Derringer–Suich desirability.
Terminal
$ doe optimize --config use_cases/153_telescope_observation/config.json --multi
7
Generate the HTML report
Terminal
$ doe report --config use_cases/153_telescope_observation/config.json \
--output use_cases/153_telescope_observation/results/report.html
Features Exercised
| Feature | Value |
|---|---|
| Design type | plackett_burman |
| Factor types | continuous (all 5) |
| Arg style | double-dash |
| Responses | 2 (sharpness ↑, limiting_mag ↑) |
| Total runs | 8 |
Analysis Results
Generated from actual experiment runs using the DOE Helper Tool.
Response: sharpness
Top factors: aperture_mm (49.1%), eyepiece_mm (16.0%), cooldown_min (14.8%).
ANOVA
| Source | DF | SS | MS | F | p-value |
|---|---|---|---|---|---|
| Source | DF | SS | MS | F | p-value |
| aperture_mm | 1 | 8.6113 | 8.6113 | 7.960 | 0.0371 |
| focal_ratio | 1 | 0.6613 | 0.6613 | 0.611 | 0.4697 |
| eyepiece_mm | 1 | 0.9112 | 0.9112 | 0.842 | 0.4008 |
| tracking_rate | 1 | 0.1513 | 0.1513 | 0.140 | 0.7238 |
| cooldown_min | 1 | 0.7812 | 0.7812 | 0.722 | 0.4342 |
| aperture_mm*focal_ratio | 1 | 0.9112 | 0.9112 | 0.842 | 0.4008 |
| aperture_mm*eyepiece_mm | 1 | 0.6613 | 0.6613 | 0.611 | 0.4697 |
| aperture_mm*tracking_rate | 1 | 0.7812 | 0.7812 | 0.722 | 0.4342 |
| aperture_mm*cooldown_min | 1 | 0.1512 | 0.1512 | 0.140 | 0.7238 |
| focal_ratio*eyepiece_mm | 1 | 8.6113 | 8.6113 | 7.960 | 0.0371 |
| focal_ratio*tracking_rate | 1 | 4.0613 | 4.0613 | 3.754 | 0.1104 |
| focal_ratio*cooldown_min | 1 | 3.5113 | 3.5113 | 3.246 | 0.1315 |
| eyepiece_mm*tracking_rate | 1 | 3.5112 | 3.5112 | 3.246 | 0.1315 |
| eyepiece_mm*cooldown_min | 1 | 4.0612 | 4.0612 | 3.754 | 0.1104 |
| tracking_rate*cooldown_min | 1 | 8.6112 | 8.6112 | 7.960 | 0.0371 |
| Error | (Lenth | PSE) | 5 | 5.4094 | 1.0819 |
| Total | 7 | 18.6887 | 2.6698 |

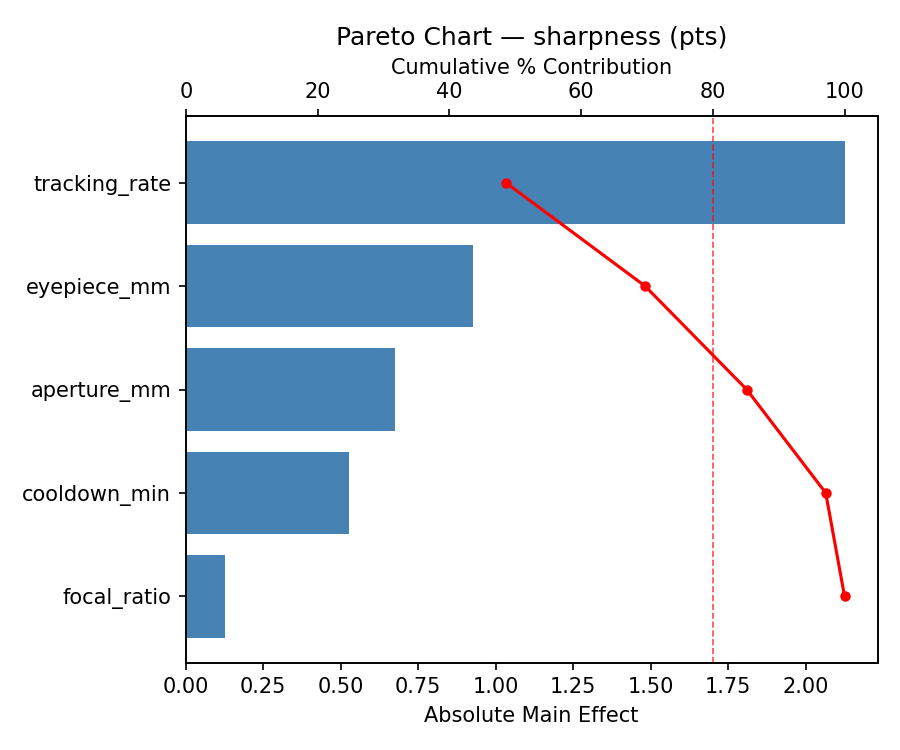

Pareto Chart

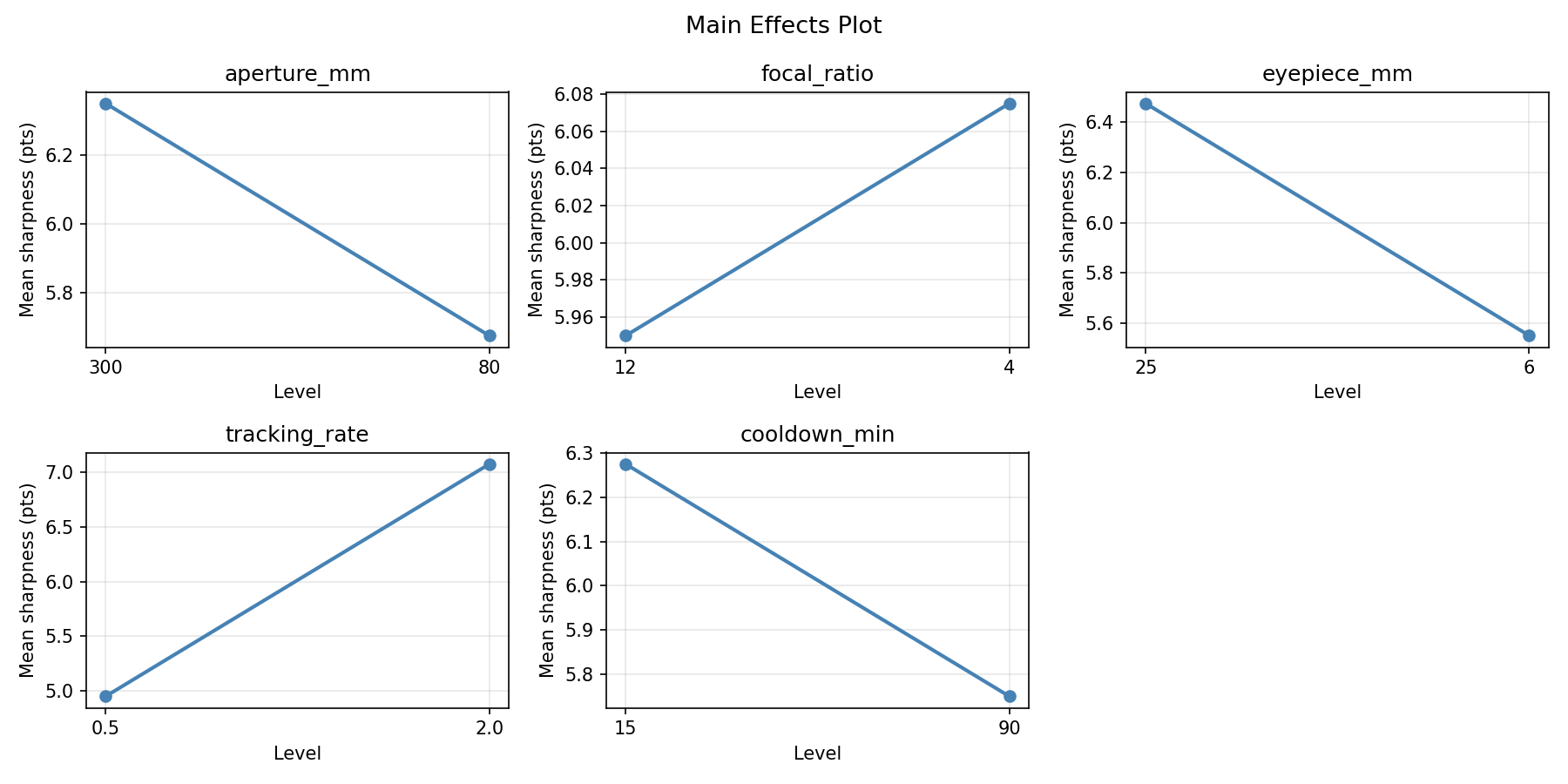

Main Effects Plot

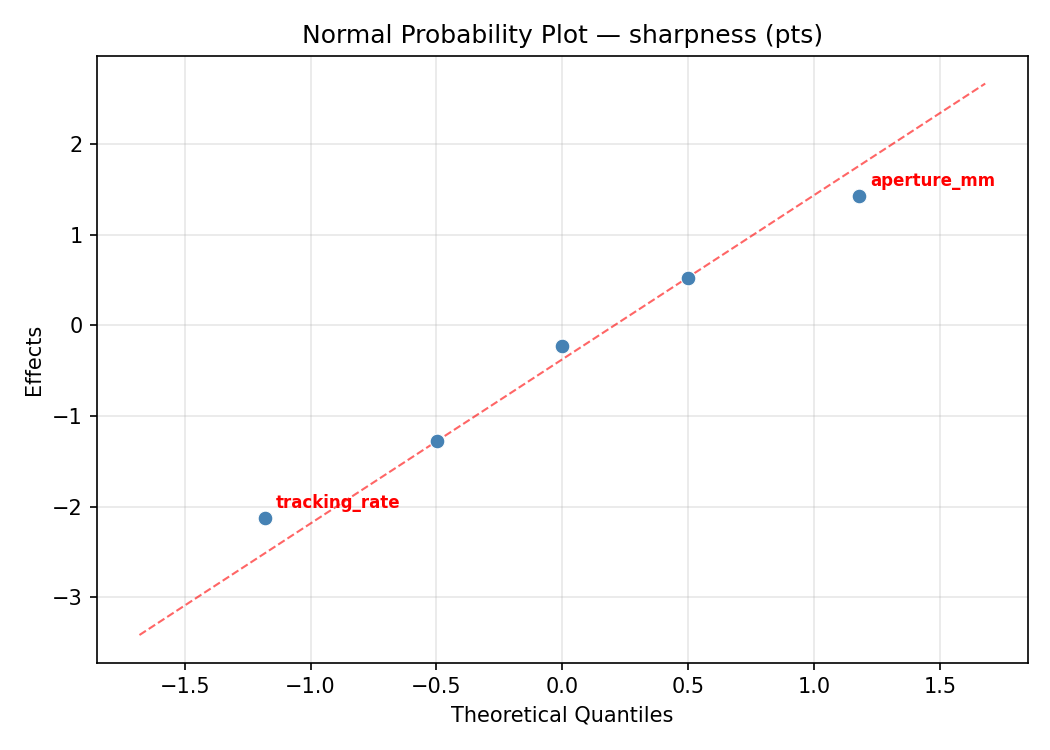

Normal Probability Plot of Effects

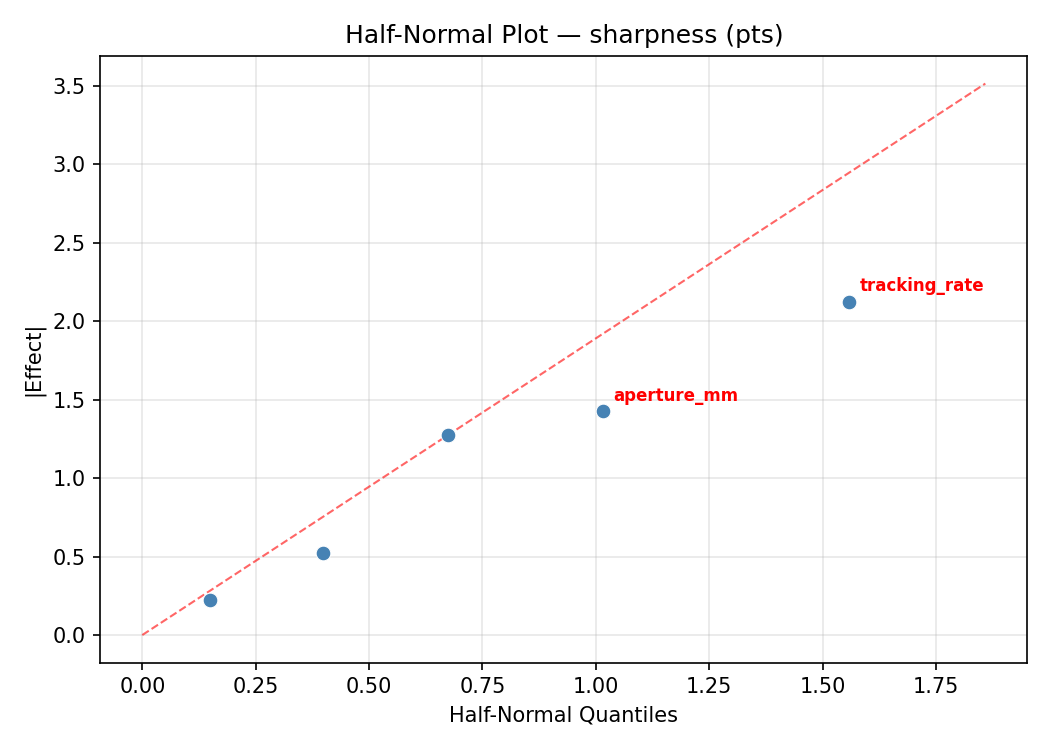

Half-Normal Plot of Effects

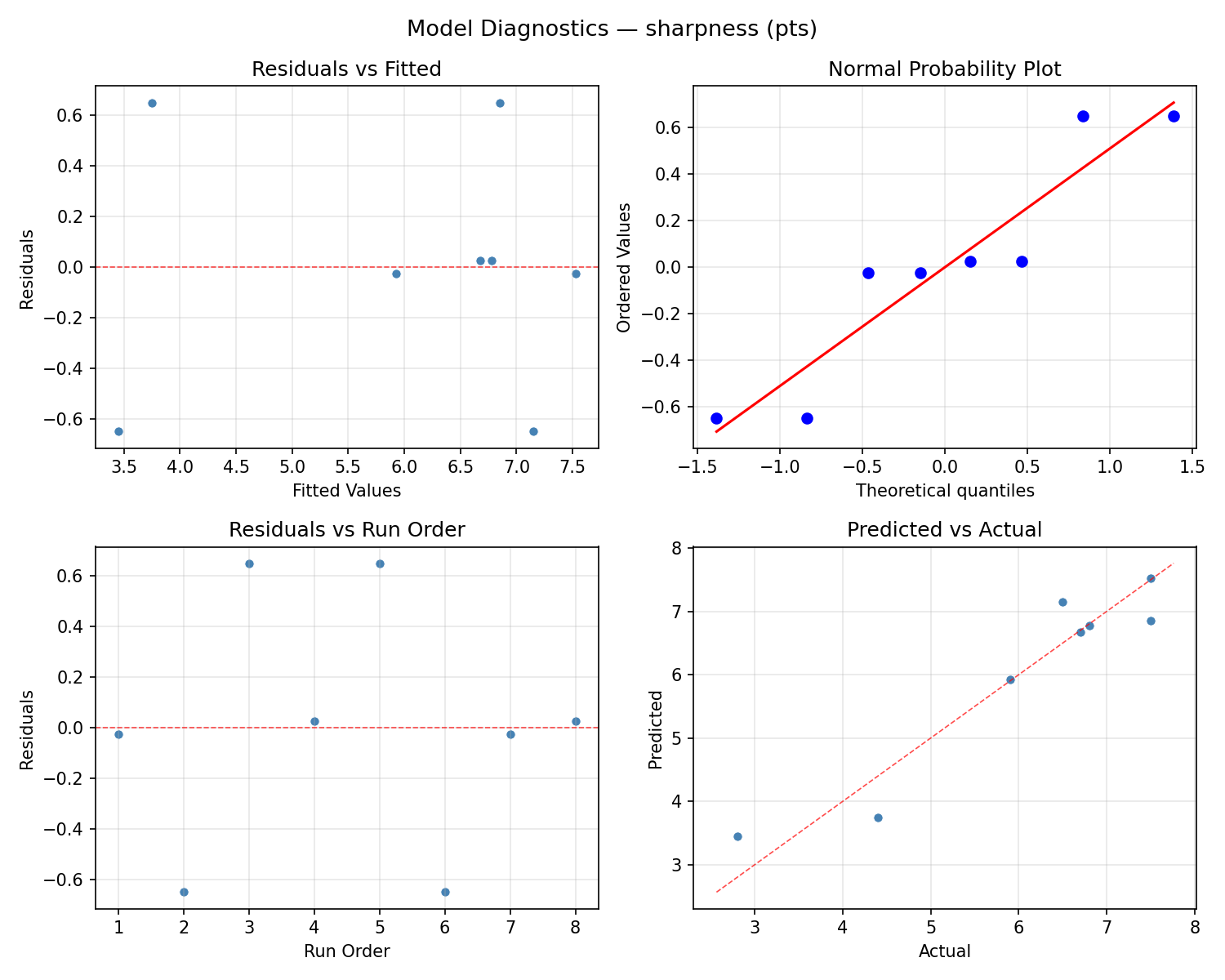

Model Diagnostics
Response: limiting_mag
Top factors: aperture_mm (44.3%), focal_ratio (26.8%), cooldown_min (15.5%).
ANOVA
| Source | DF | SS | MS | F | p-value |
|---|---|---|---|---|---|
| Source | DF | SS | MS | F | p-value |
| aperture_mm | 1 | 9.2450 | 9.2450 | 15.218 | 0.0114 |
| focal_ratio | 1 | 3.3800 | 3.3800 | 5.564 | 0.0649 |
| eyepiece_mm | 1 | 0.1250 | 0.1250 | 0.206 | 0.6691 |
| tracking_rate | 1 | 0.3200 | 0.3200 | 0.527 | 0.5005 |
| cooldown_min | 1 | 1.1250 | 1.1250 | 1.852 | 0.2317 |
| aperture_mm*focal_ratio | 1 | 0.1250 | 0.1250 | 0.206 | 0.6691 |
| aperture_mm*eyepiece_mm | 1 | 3.3800 | 3.3800 | 5.564 | 0.0649 |
| aperture_mm*tracking_rate | 1 | 1.1250 | 1.1250 | 1.852 | 0.2317 |
| aperture_mm*cooldown_min | 1 | 0.3200 | 0.3200 | 0.527 | 0.5005 |
| focal_ratio*eyepiece_mm | 1 | 9.2450 | 9.2450 | 15.218 | 0.0114 |
| focal_ratio*tracking_rate | 1 | 8.8200 | 8.8200 | 14.519 | 0.0125 |
| focal_ratio*cooldown_min | 1 | 0.4050 | 0.4050 | 0.667 | 0.4513 |
| eyepiece_mm*tracking_rate | 1 | 0.4050 | 0.4050 | 0.667 | 0.4513 |
| eyepiece_mm*cooldown_min | 1 | 8.8200 | 8.8200 | 14.519 | 0.0125 |
| tracking_rate*cooldown_min | 1 | 9.2450 | 9.2450 | 15.218 | 0.0114 |
| Error | (Lenth | PSE) | 5 | 3.0375 | 0.6075 |
| Total | 7 | 23.4200 | 3.3457 |

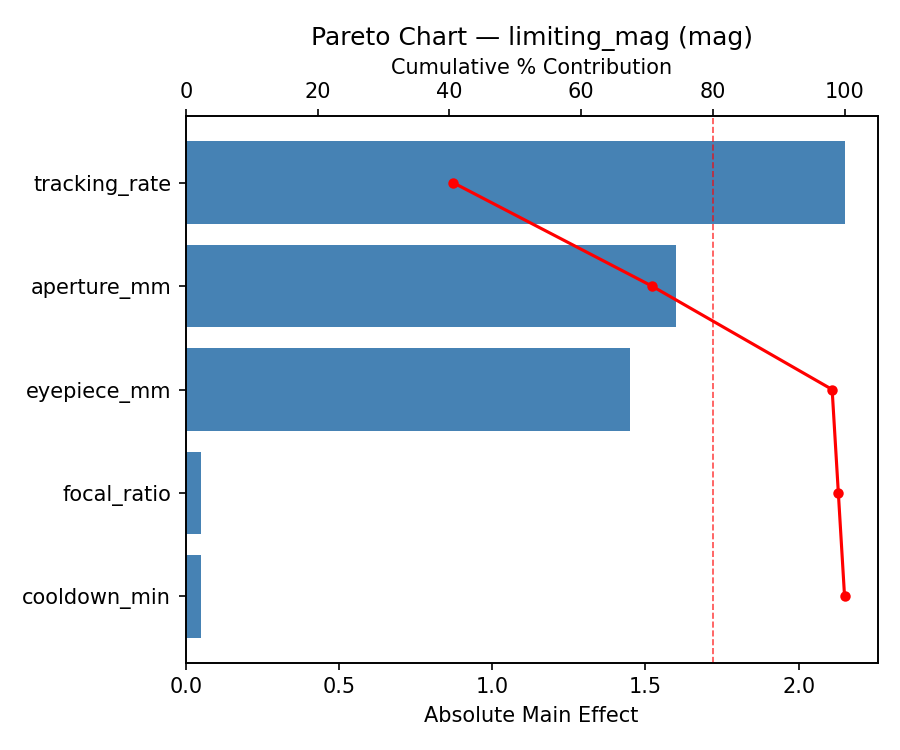

Pareto Chart

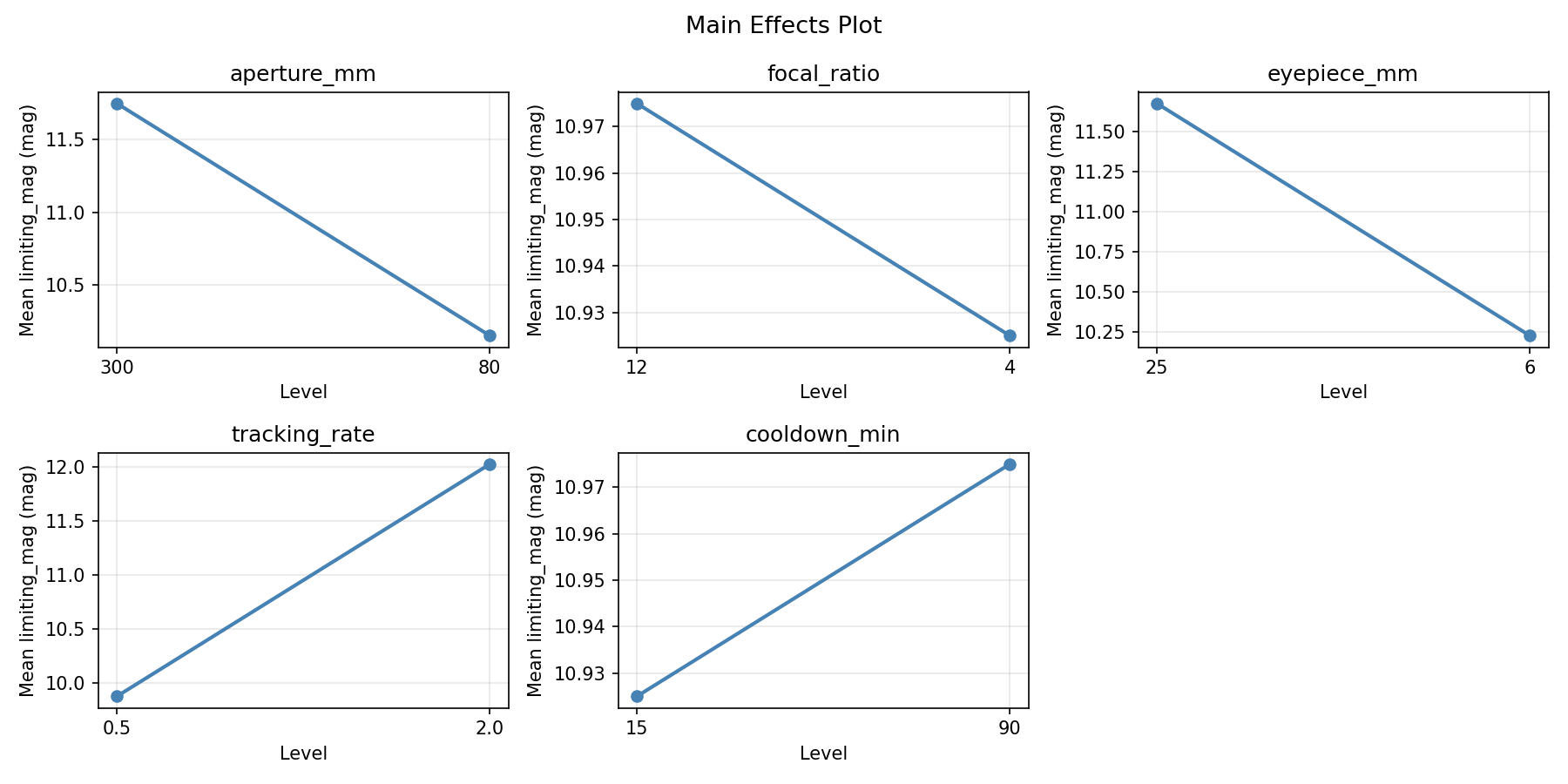

Main Effects Plot
Normal Probability Plot of Effects

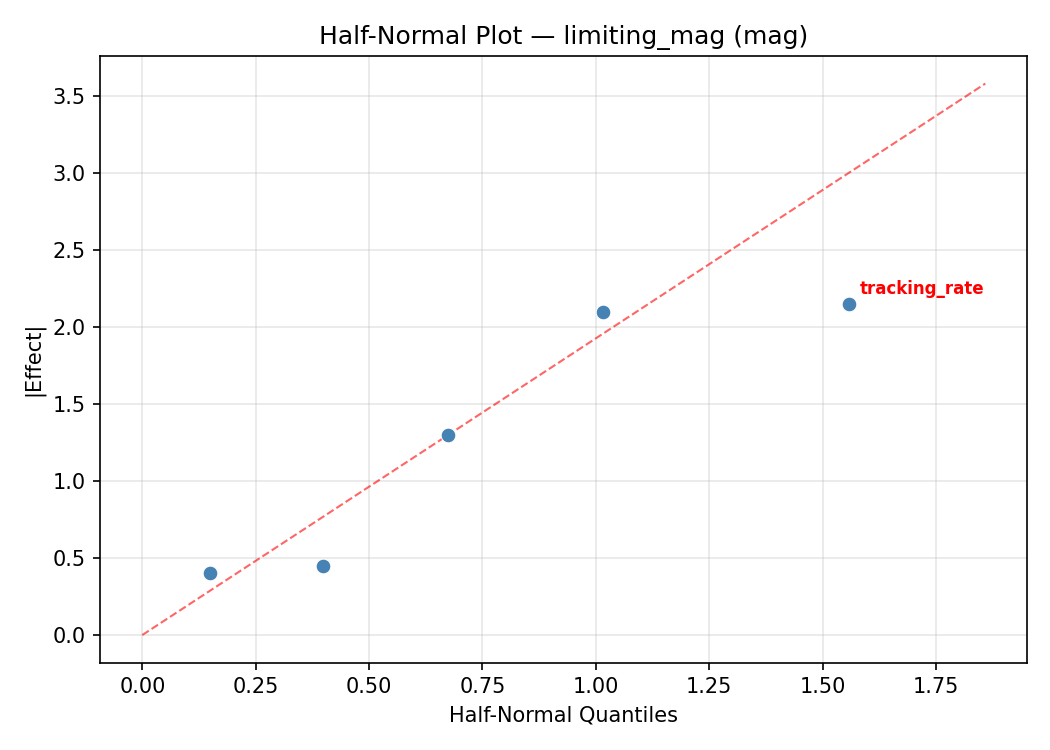

Half-Normal Plot of Effects

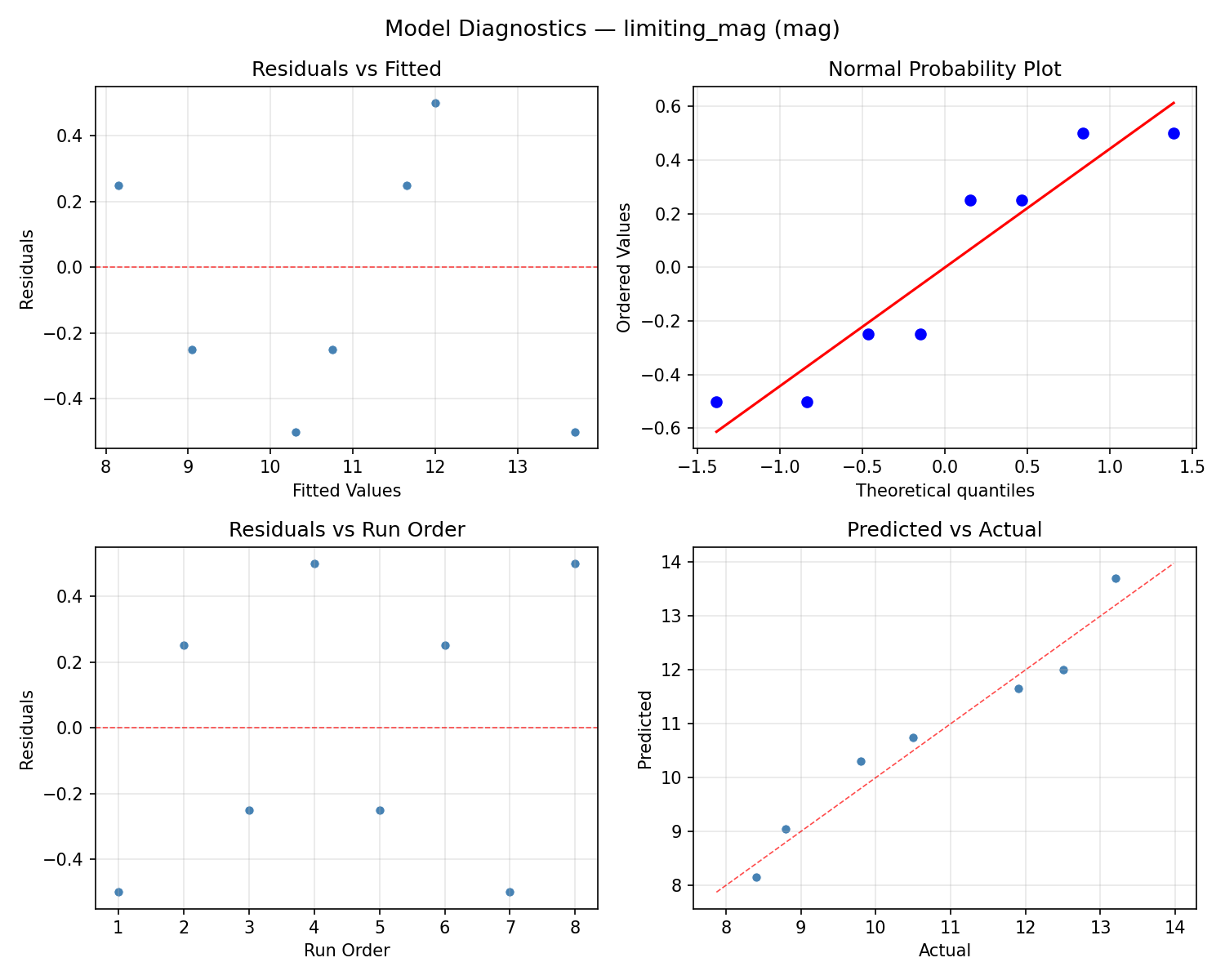

Model Diagnostics

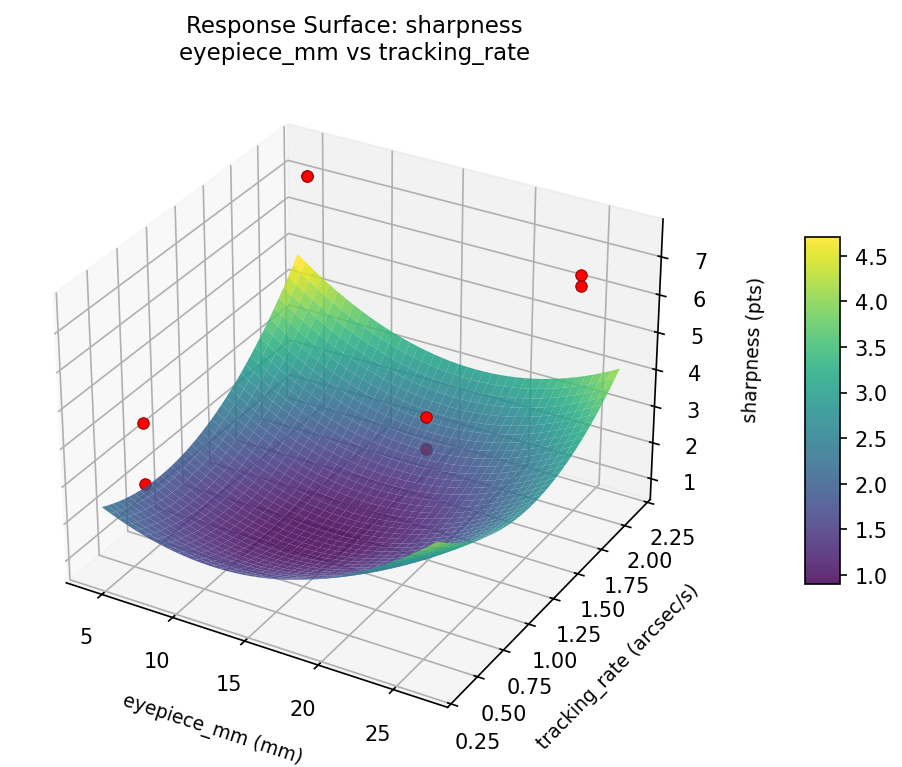

Response Surface Plots
3D surfaces fitted with quadratic RSM. Red dots are observed data points.

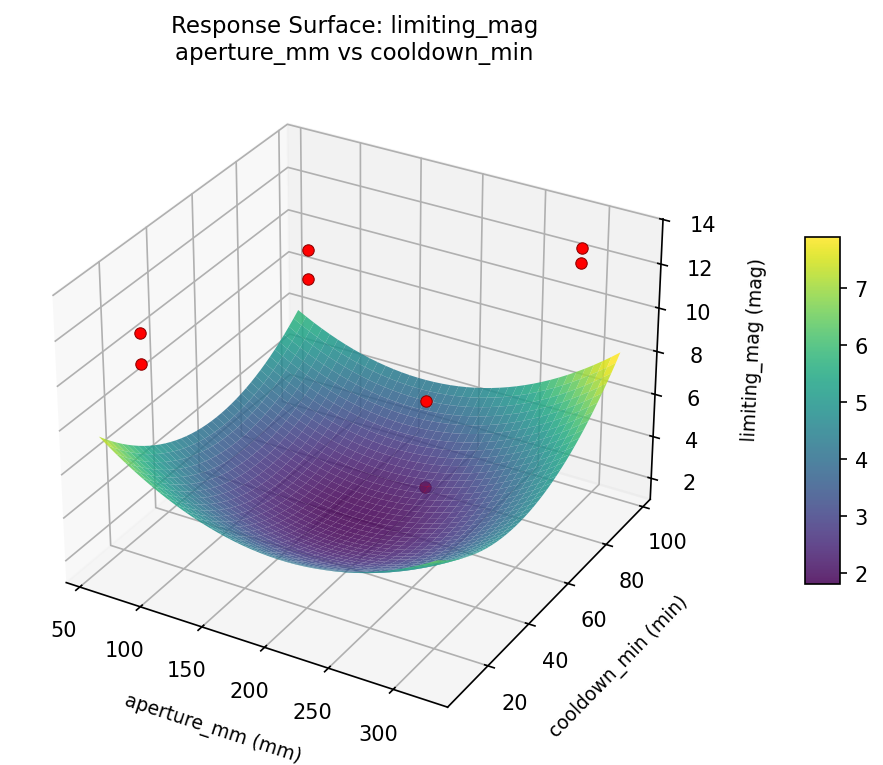

limiting mag aperture mm vs cooldown min
limiting mag aperture mm vs eyepiece mm

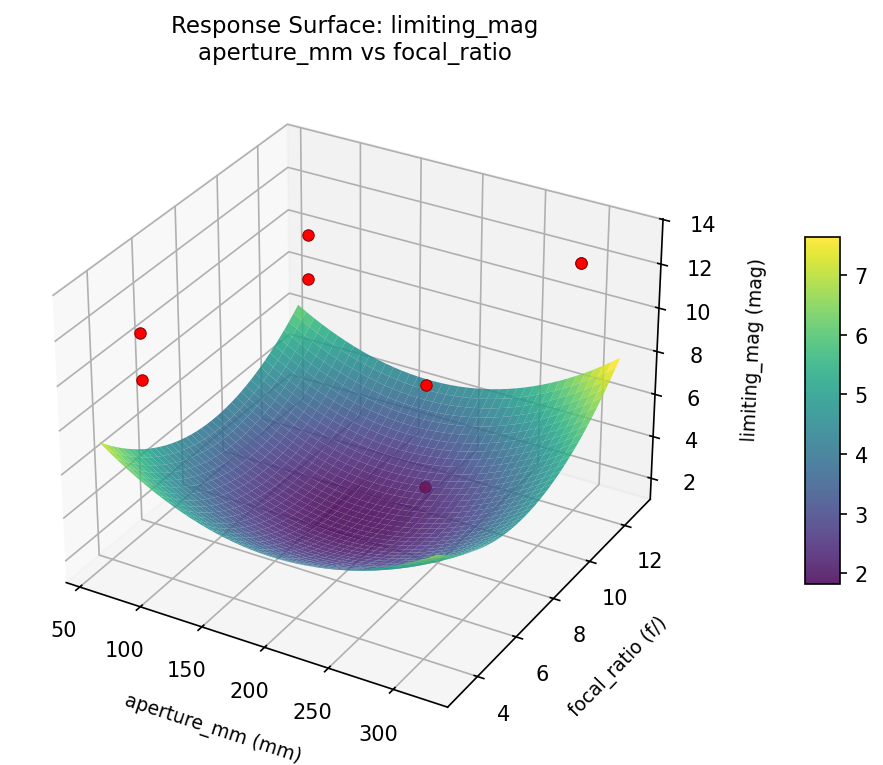

limiting mag aperture mm vs focal ratio

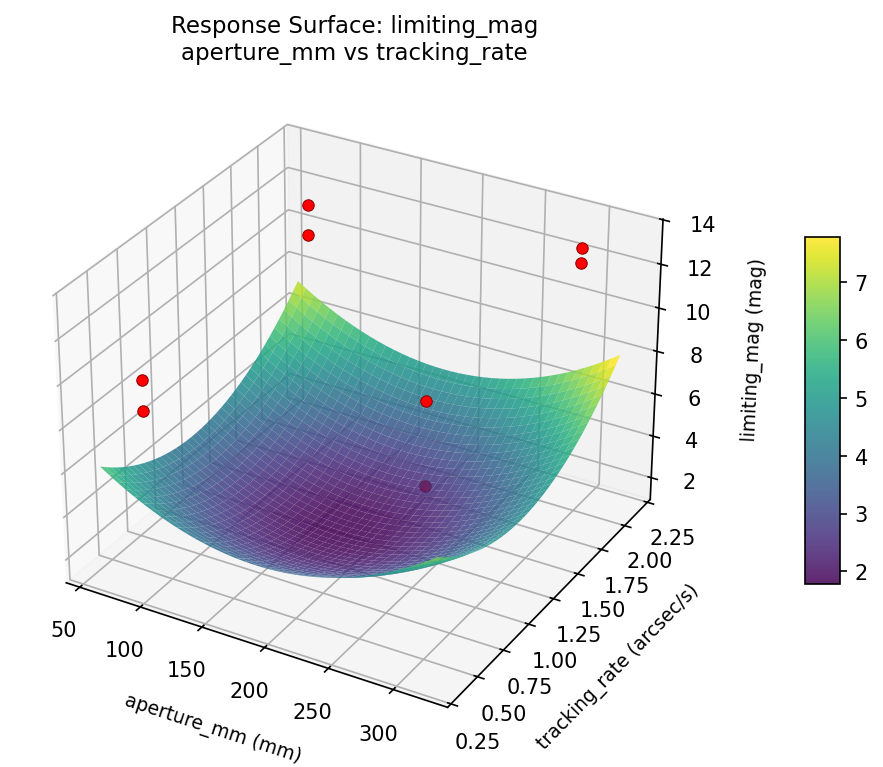

limiting mag aperture mm vs tracking rate

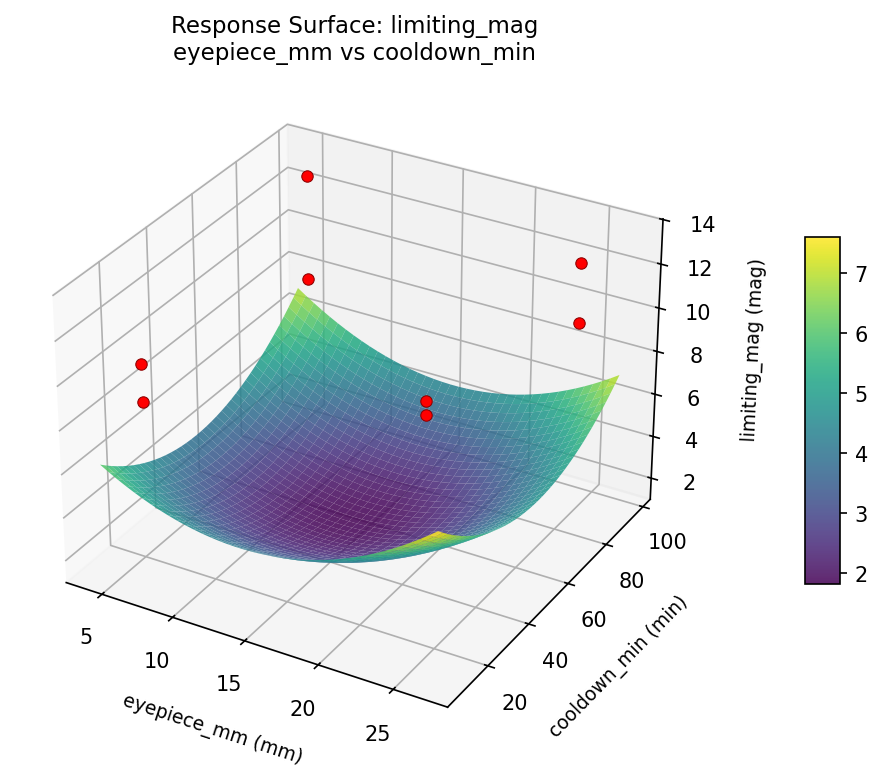

limiting mag eyepiece mm vs cooldown min

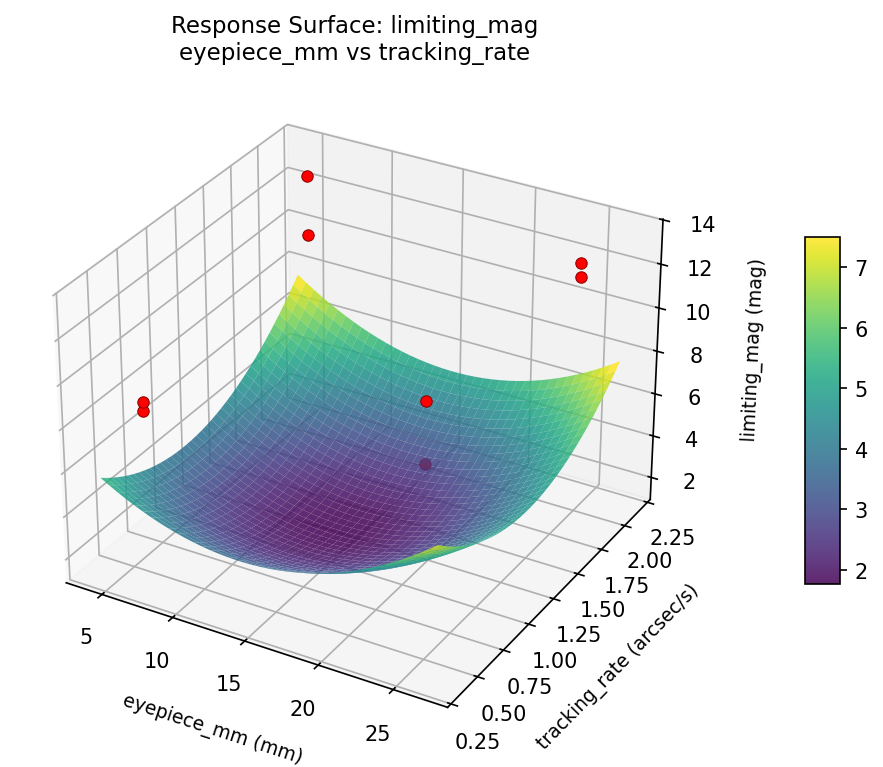

limiting mag eyepiece mm vs tracking rate
limiting mag focal ratio vs cooldown min

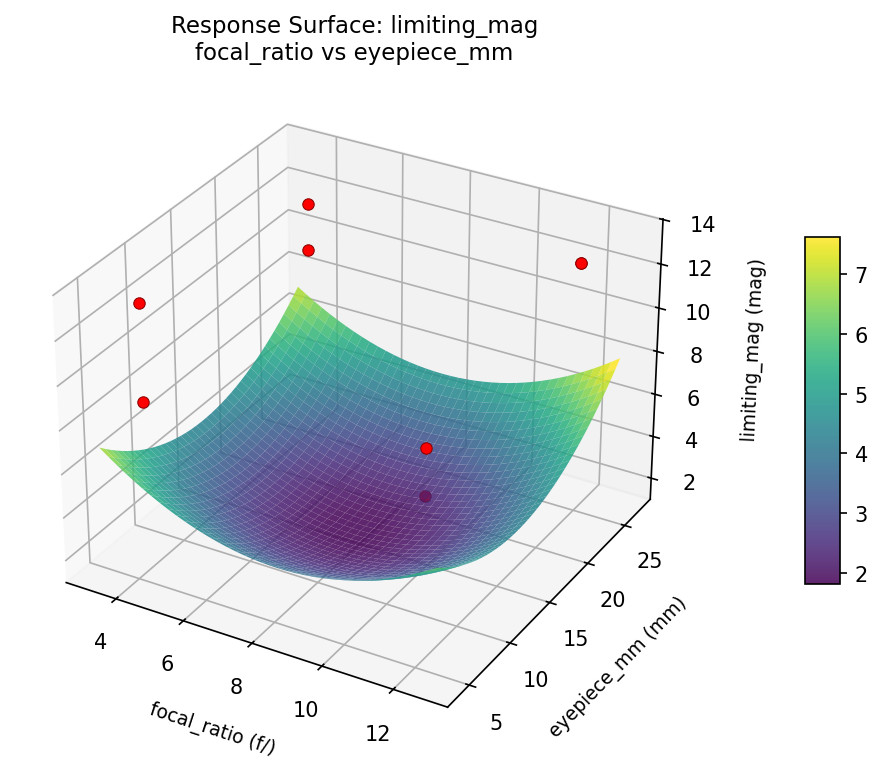

limiting mag focal ratio vs eyepiece mm
limiting mag focal ratio vs tracking rate

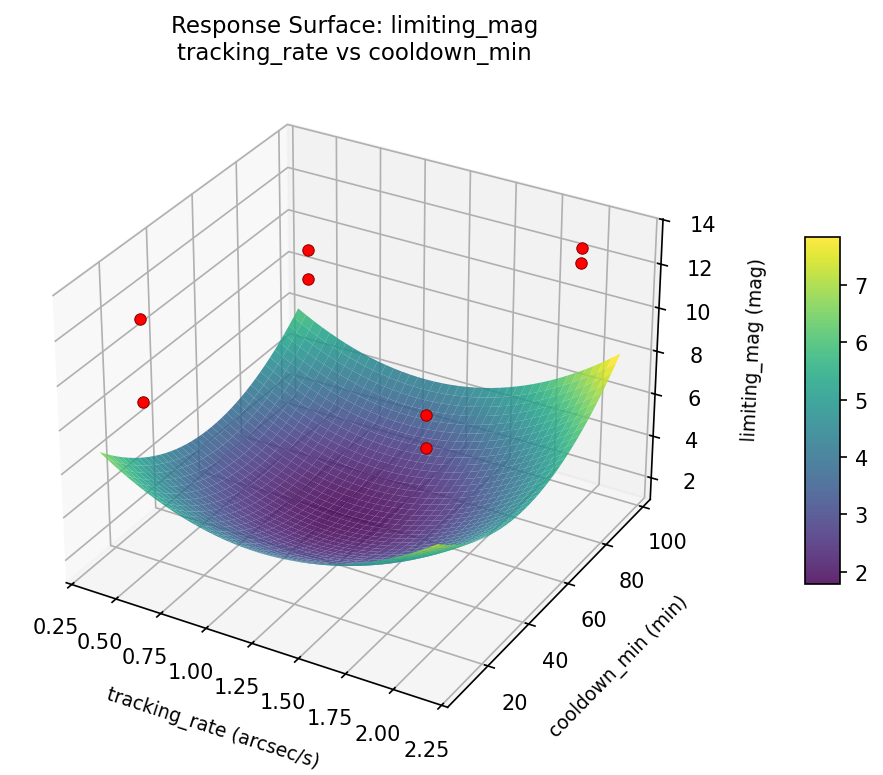

limiting mag tracking rate vs cooldown min

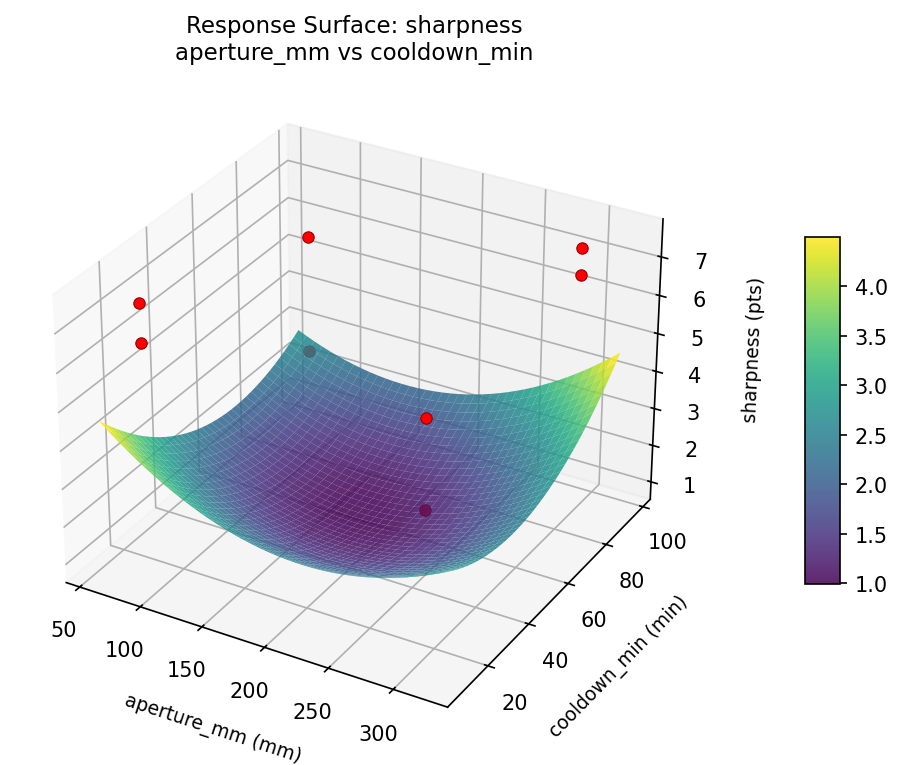

sharpness aperture mm vs cooldown min

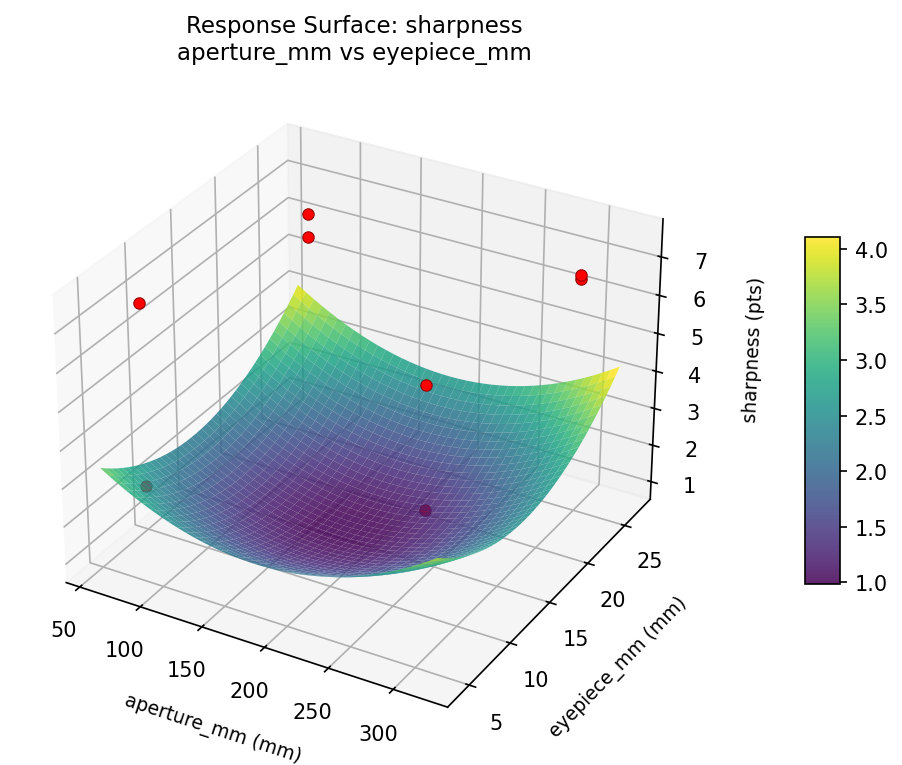

sharpness aperture mm vs eyepiece mm

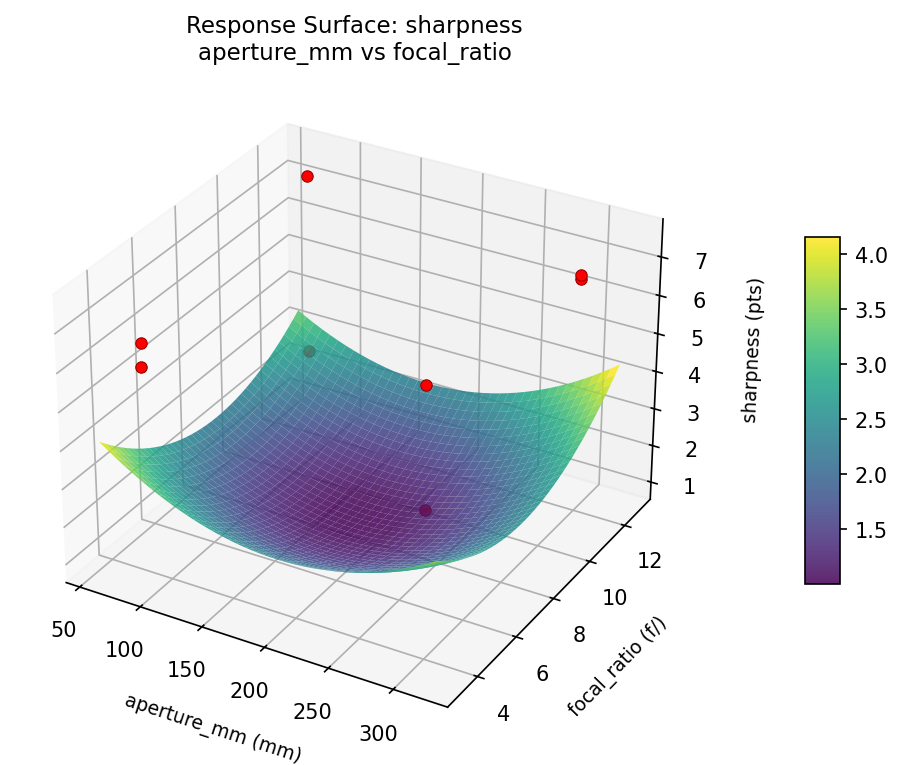

sharpness aperture mm vs focal ratio

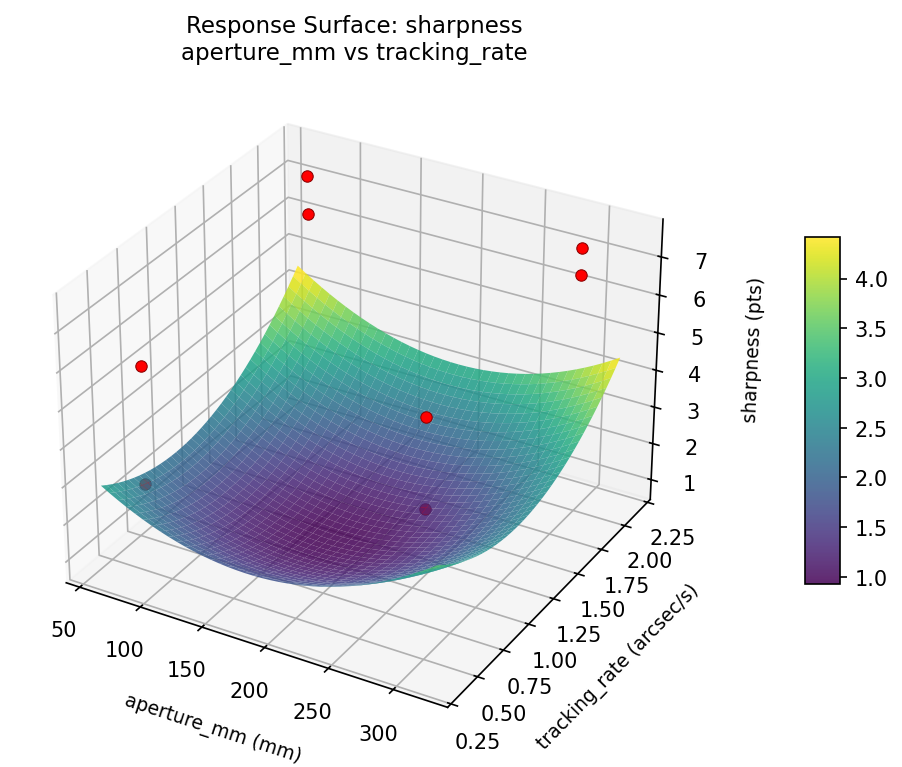

sharpness aperture mm vs tracking rate

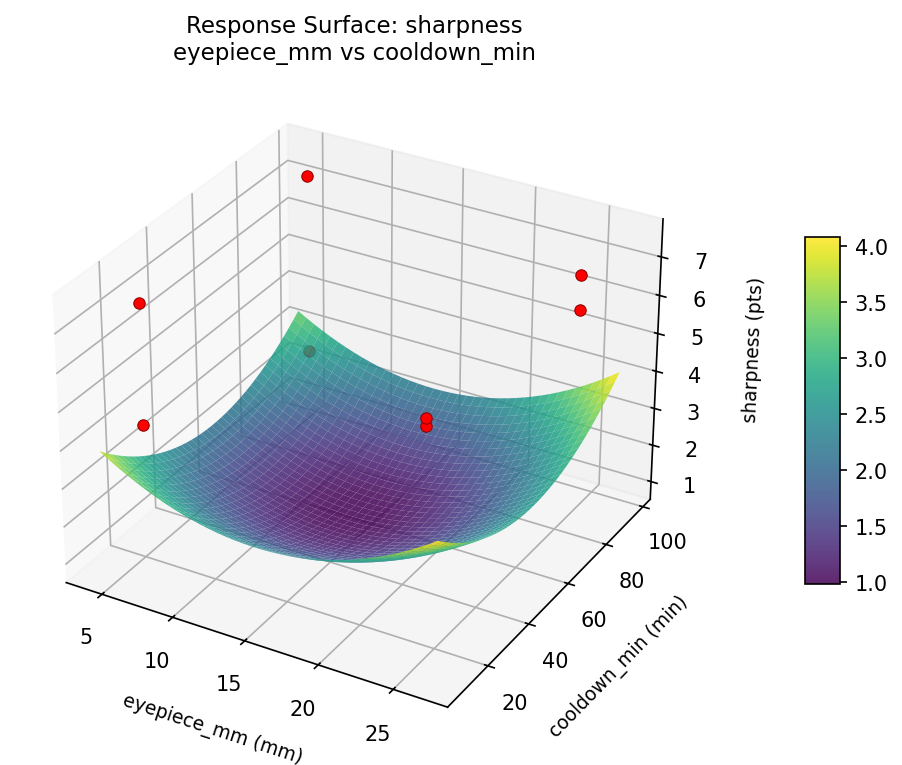

sharpness eyepiece mm vs cooldown min
sharpness eyepiece mm vs tracking rate
sharpness focal ratio vs cooldown min

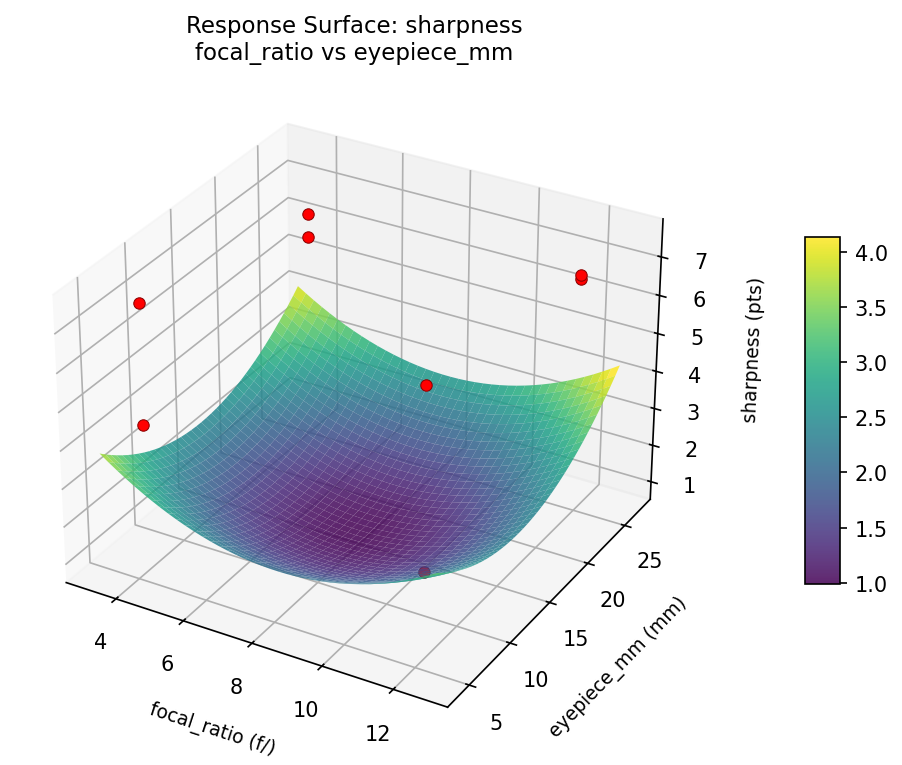

sharpness focal ratio vs eyepiece mm

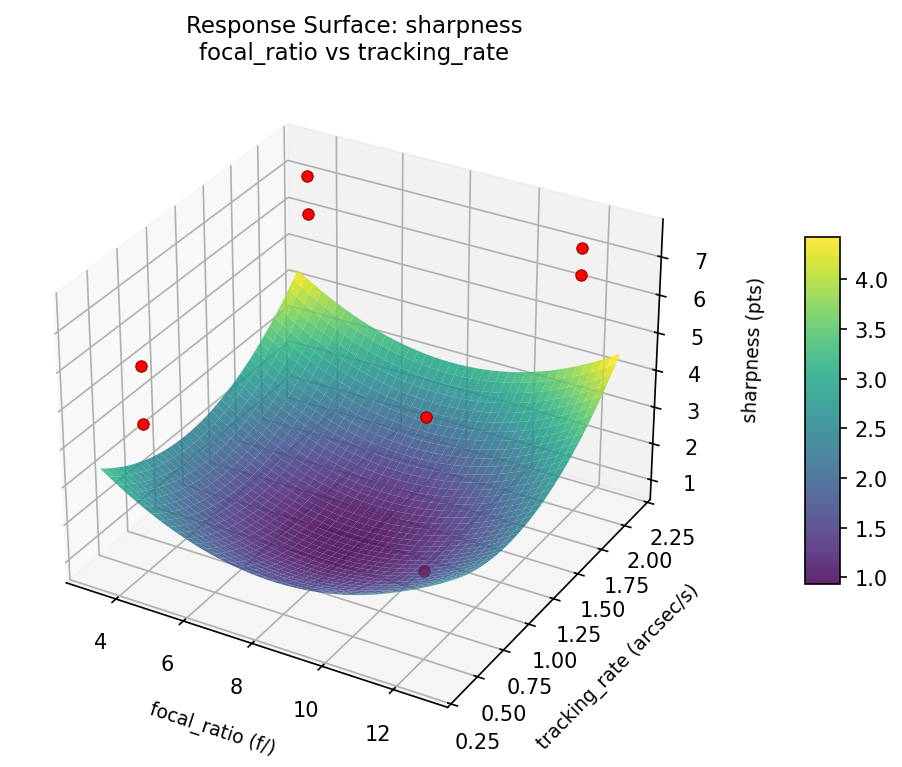

sharpness focal ratio vs tracking rate

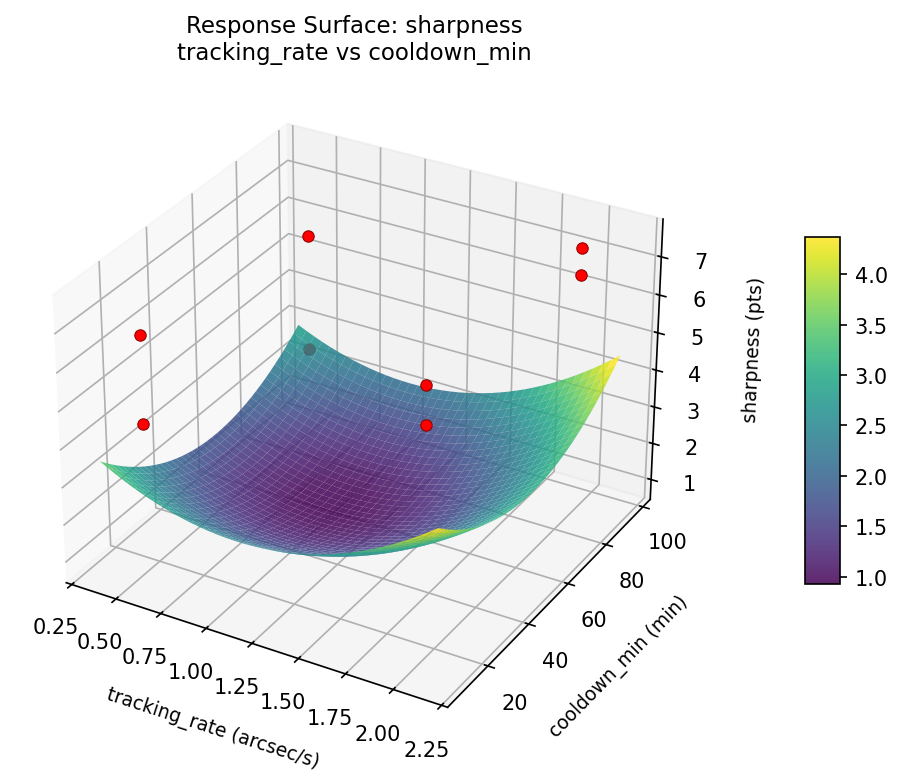

sharpness tracking rate vs cooldown min
Multi-Objective Optimization
When responses compete, Derringer–Suich desirability finds the best compromise. Each response is scaled to a 0–1 desirability, then combined via a weighted geometric mean.
Overall Desirability
D = 0.9545
Per-Response Desirability
| Response | Weight | Desirability | Predicted | Dir |
|---|---|---|---|---|
sharpness |
1.5 |
0.9545
|
7.50 0.9545 7.50 pts | ↑ |
limiting_mag |
1.0 |
0.9545
|
13.20 0.9545 13.20 mag | ↑ |
Recommended Settings
| Factor | Value |
|---|---|
aperture_mm | 80 mm |
focal_ratio | 4 f/ |
eyepiece_mm | 25 mm |
tracking_rate | 0.5 arcsec/s |
cooldown_min | 90 min |
Source: from observed run #1
Trade-off Summary
Sacrifice = how much worse than single-objective best.
| Response | Predicted | Best Observed | Sacrifice |
|---|---|---|---|
limiting_mag | 13.20 | 13.20 | +0.00 |
Top 3 Runs by Desirability
| Run | D | Factor Settings |
|---|---|---|
| #8 | 0.8203 | aperture_mm=80, focal_ratio=12, eyepiece_mm=6, tracking_rate=2.0, cooldown_min=15 |
| #4 | 0.8086 | aperture_mm=300, focal_ratio=4, eyepiece_mm=6, tracking_rate=2.0, cooldown_min=90 |
Model Quality
| Response | R² | Type |
|---|---|---|
limiting_mag | 0.5047 | linear |
Full Multi-Objective Output
doe optimize --multi
============================================================
MULTI-OBJECTIVE OPTIMIZATION
Method: Derringer-Suich Desirability Function
============================================================
Overall desirability: D = 0.9545
Response Weight Desirability Predicted Direction
---------------------------------------------------------------------
sharpness 1.5 0.9545 7.50 pts ↑
limiting_mag 1.0 0.9545 13.20 mag ↑
Recommended settings:
aperture_mm = 80 mm
focal_ratio = 4 f/
eyepiece_mm = 25 mm
tracking_rate = 0.5 arcsec/s
cooldown_min = 90 min
(from observed run #1)
Trade-off summary:
sharpness: 7.50 (best observed: 7.50, sacrifice: +0.00)
limiting_mag: 13.20 (best observed: 13.20, sacrifice: +0.00)
Model quality:
sharpness: R² = 0.7634 (linear)
limiting_mag: R² = 0.5047 (linear)
Top 3 observed runs by overall desirability:
1. Run #1 (D=0.9545): aperture_mm=80, focal_ratio=4, eyepiece_mm=25, tracking_rate=0.5, cooldown_min=90
2. Run #8 (D=0.8203): aperture_mm=80, focal_ratio=12, eyepiece_mm=6, tracking_rate=2.0, cooldown_min=15
3. Run #4 (D=0.8086): aperture_mm=300, focal_ratio=4, eyepiece_mm=6, tracking_rate=2.0, cooldown_min=90
Full Analysis Output
doe analyze
=== Main Effects: sharpness ===
Factor Effect Std Error % Contribution
--------------------------------------------------------------
aperture_mm -2.0750 0.5777 49.1%
eyepiece_mm -0.6750 0.5777 16.0%
cooldown_min 0.6250 0.5777 14.8%
focal_ratio 0.5750 0.5777 13.6%
tracking_rate 0.2750 0.5777 6.5%
=== ANOVA Table: sharpness ===
Source DF SS MS F p-value
-----------------------------------------------------------------------------
aperture_mm 1 8.6113 8.6113 7.960 0.0371
focal_ratio 1 0.6613 0.6613 0.611 0.4697
eyepiece_mm 1 0.9112 0.9112 0.842 0.4008
tracking_rate 1 0.1513 0.1513 0.140 0.7238
cooldown_min 1 0.7812 0.7812 0.722 0.4342
aperture_mm*focal_ratio 1 0.9112 0.9112 0.842 0.4008
aperture_mm*eyepiece_mm 1 0.6613 0.6613 0.611 0.4697
aperture_mm*tracking_rate 1 0.7812 0.7812 0.722 0.4342
aperture_mm*cooldown_min 1 0.1512 0.1512 0.140 0.7238
focal_ratio*eyepiece_mm 1 8.6113 8.6113 7.960 0.0371
focal_ratio*tracking_rate 1 4.0613 4.0613 3.754 0.1104
focal_ratio*cooldown_min 1 3.5113 3.5113 3.246 0.1315
eyepiece_mm*tracking_rate 1 3.5112 3.5112 3.246 0.1315
eyepiece_mm*cooldown_min 1 4.0612 4.0612 3.754 0.1104
tracking_rate*cooldown_min 1 8.6112 8.6112 7.960 0.0371
Error (Lenth PSE) 5 5.4094 1.0819
Total 7 18.6887 2.6698
Note: Error estimated using Lenth's pseudo-standard-error (unreplicated design)
=== Interaction Effects: sharpness ===
Factor A Factor B Interaction % Contribution
------------------------------------------------------------------------
focal_ratio eyepiece_mm 2.0750 17.6%
tracking_rate cooldown_min 2.0750 17.6%
focal_ratio tracking_rate 1.4250 12.1%
eyepiece_mm cooldown_min 1.4250 12.1%
focal_ratio cooldown_min -1.3250 11.2%
eyepiece_mm tracking_rate -1.3250 11.2%
aperture_mm focal_ratio 0.6750 5.7%
aperture_mm tracking_rate -0.6250 5.3%
aperture_mm eyepiece_mm -0.5750 4.9%
aperture_mm cooldown_min -0.2750 2.3%
=== Summary Statistics: sharpness ===
aperture_mm:
Level N Mean Std Min Max
------------------------------------------------------------
300 4 7.0500 0.5260 6.5000 7.5000
80 4 4.9750 1.7557 2.8000 6.8000
focal_ratio:
Level N Mean Std Min Max
------------------------------------------------------------
12 4 5.7250 2.0565 2.8000 7.5000
4 4 6.3000 1.3342 4.4000 7.5000
eyepiece_mm:
Level N Mean Std Min Max
------------------------------------------------------------
25 4 6.3500 1.3478 4.4000 7.5000
6 4 5.6750 2.0271 2.8000 7.5000
tracking_rate:
Level N Mean Std Min Max
------------------------------------------------------------
0.5 4 5.8750 1.0404 4.4000 6.7000
2.0 4 6.1500 2.2576 2.8000 7.5000
cooldown_min:
Level N Mean Std Min Max
------------------------------------------------------------
15 4 5.7000 1.9374 2.8000 6.8000
90 4 6.3250 1.4886 4.4000 7.5000
=== Main Effects: limiting_mag ===
Factor Effect Std Error % Contribution
--------------------------------------------------------------
aperture_mm -2.1500 0.6467 44.3%
focal_ratio 1.3000 0.6467 26.8%
cooldown_min -0.7500 0.6467 15.5%
tracking_rate 0.4000 0.6467 8.2%
eyepiece_mm -0.2500 0.6467 5.2%
=== ANOVA Table: limiting_mag ===
Source DF SS MS F p-value
-----------------------------------------------------------------------------
aperture_mm 1 9.2450 9.2450 15.218 0.0114
focal_ratio 1 3.3800 3.3800 5.564 0.0649
eyepiece_mm 1 0.1250 0.1250 0.206 0.6691
tracking_rate 1 0.3200 0.3200 0.527 0.5005
cooldown_min 1 1.1250 1.1250 1.852 0.2317
aperture_mm*focal_ratio 1 0.1250 0.1250 0.206 0.6691
aperture_mm*eyepiece_mm 1 3.3800 3.3800 5.564 0.0649
aperture_mm*tracking_rate 1 1.1250 1.1250 1.852 0.2317
aperture_mm*cooldown_min 1 0.3200 0.3200 0.527 0.5005
focal_ratio*eyepiece_mm 1 9.2450 9.2450 15.218 0.0114
focal_ratio*tracking_rate 1 8.8200 8.8200 14.519 0.0125
focal_ratio*cooldown_min 1 0.4050 0.4050 0.667 0.4513
eyepiece_mm*tracking_rate 1 0.4050 0.4050 0.667 0.4513
eyepiece_mm*cooldown_min 1 8.8200 8.8200 14.519 0.0125
tracking_rate*cooldown_min 1 9.2450 9.2450 15.218 0.0114
Error (Lenth PSE) 5 3.0375 0.6075
Total 7 23.4200 3.3457
Note: Error estimated using Lenth's pseudo-standard-error (unreplicated design)
=== Interaction Effects: limiting_mag ===
Factor A Factor B Interaction % Contribution
------------------------------------------------------------------------
focal_ratio eyepiece_mm 2.1500 17.8%
tracking_rate cooldown_min 2.1500 17.8%
focal_ratio tracking_rate 2.1000 17.4%
eyepiece_mm cooldown_min 2.1000 17.4%
aperture_mm eyepiece_mm -1.3000 10.7%
aperture_mm tracking_rate 0.7500 6.2%
focal_ratio cooldown_min -0.4500 3.7%
eyepiece_mm tracking_rate -0.4500 3.7%
aperture_mm cooldown_min -0.4000 3.3%
aperture_mm focal_ratio 0.2500 2.1%
=== Summary Statistics: limiting_mag ===
aperture_mm:
Level N Mean Std Min Max
------------------------------------------------------------
300 4 12.0250 1.1471 10.5000 13.2000
80 4 9.8750 1.8464 8.4000 12.5000
focal_ratio:
Level N Mean Std Min Max
------------------------------------------------------------
12 4 10.3000 1.7068 8.4000 12.5000
4 4 11.6000 1.9408 8.8000 13.2000
eyepiece_mm:
Level N Mean Std Min Max
------------------------------------------------------------
25 4 11.0750 1.7858 8.8000 12.5000
6 4 10.8250 2.1391 8.4000 13.2000
tracking_rate:
Level N Mean Std Min Max
------------------------------------------------------------
0.5 4 10.7500 1.7407 8.8000 12.5000
2.0 4 11.1500 2.1610 8.4000 13.2000
cooldown_min:
Level N Mean Std Min Max
------------------------------------------------------------
15 4 11.3250 1.9704 8.4000 12.5000
90 4 10.5750 1.8839 8.8000 13.2000
Optimization Recommendations
doe optimize
=== Optimization: sharpness ===
Direction: maximize
Best observed run: #1
aperture_mm = 300
focal_ratio = 4
eyepiece_mm = 6
tracking_rate = 0.5
cooldown_min = 15
Value: 7.5
RSM Model (linear, R² = 0.9967, Adj R² = 0.9883):
Coefficients:
intercept +6.0125
aperture_mm +0.8625
focal_ratio -0.5125
eyepiece_mm +0.2875
tracking_rate +0.6375
cooldown_min -0.9125
Predicted optimum (from linear model, at observed points):
aperture_mm = 80
focal_ratio = 4
eyepiece_mm = 25
tracking_rate = 2.0
cooldown_min = 15
Predicted value: 7.5000
Surface optimum (via L-BFGS-B, linear model):
aperture_mm = 300
focal_ratio = 4
eyepiece_mm = 25
tracking_rate = 2
cooldown_min = 15
Predicted value: 9.2250
Model quality: Excellent fit — surface predictions are reliable.
Factor importance:
1. cooldown_min (effect: -1.8, contribution: 28.4%)
2. aperture_mm (effect: -1.7, contribution: 26.8%)
3. tracking_rate (effect: 1.3, contribution: 19.8%)
4. focal_ratio (effect: 1.0, contribution: 16.0%)
5. eyepiece_mm (effect: -0.6, contribution: 8.9%)
=== Optimization: limiting_mag ===
Direction: maximize
Best observed run: #1
aperture_mm = 300
focal_ratio = 4
eyepiece_mm = 6
tracking_rate = 0.5
cooldown_min = 15
Value: 13.2
RSM Model (linear, R² = 0.9989, Adj R² = 0.9963):
Coefficients:
intercept +10.9500
aperture_mm +1.5750
focal_ratio -0.3000
eyepiece_mm -0.0250
tracking_rate +0.2250
cooldown_min -0.5500
Predicted optimum (from linear model, at observed points):
aperture_mm = 300
focal_ratio = 4
eyepiece_mm = 6
tracking_rate = 0.5
cooldown_min = 15
Predicted value: 13.1750
Surface optimum (via L-BFGS-B, linear model):
aperture_mm = 300
focal_ratio = 4
eyepiece_mm = 6
tracking_rate = 2
cooldown_min = 15
Predicted value: 13.6250
Model quality: Excellent fit — surface predictions are reliable.
Factor importance:
1. aperture_mm (effect: -3.2, contribution: 58.9%)
2. cooldown_min (effect: -1.1, contribution: 20.6%)
3. focal_ratio (effect: 0.6, contribution: 11.2%)
4. tracking_rate (effect: 0.5, contribution: 8.4%)
5. eyepiece_mm (effect: 0.0, contribution: 0.9%)
