Summary
This experiment investigates pig farrowing pen design. Central composite design to maximize piglet survival and sow comfort by tuning creep area temperature, pen floor type heating, and space allowance.
The design varies 3 factors: creep temp c (C), ranging from 28 to 35, heat mat pct (%), ranging from 0 to 100, and space m2 (m2), ranging from 4 to 7. The goal is to optimize 2 responses: piglet survival pct (%) (maximize) and sow comfort (pts) (maximize). Fixed conditions held constant across all runs include breed = large_white, litter size = 12.
A Central Composite Design (CCD) was selected to fit a full quadratic response surface model, including curvature and interaction effects. With 3 factors this produces 22 runs including center points and axial (star) points that extend beyond the factorial range.
Quadratic response surface models were fitted to capture potential curvature and factor interactions. The RSM contour plots below visualize how pairs of factors jointly affect each response.
Key Findings
For piglet survival pct, the most influential factors were heat mat pct (40.0%), creep temp c (30.9%), space m2 (29.1%). The best observed value was 91.0 (at creep temp c = 25.1099, heat mat pct = 50, space m2 = 5.5).
For sow comfort, the most influential factors were space m2 (34.9%), creep temp c (33.6%), heat mat pct (31.5%). The best observed value was 7.3 (at creep temp c = 25.1099, heat mat pct = 50, space m2 = 5.5).
Recommended Next Steps
- Run confirmation experiments at the predicted optimal settings to validate the model.
- Consider whether any fixed factors should be varied in a future study.
Experimental Setup
Factors
| Factor | Low | High | Unit |
|---|---|---|---|
creep_temp_c | 28 | 35 | C |
heat_mat_pct | 0 | 100 | % |
space_m2 | 4 | 7 | m2 |
Fixed: breed = large_white, litter_size = 12
Responses
| Response | Direction | Unit |
|---|---|---|
piglet_survival_pct | ↑ maximize | % |
sow_comfort | ↑ maximize | pts |
Configuration
use_cases/295_pig_farrowing/config.json
{
"metadata": {
"name": "Pig Farrowing Pen Design",
"description": "Central composite design to maximize piglet survival and sow comfort by tuning creep area temperature, pen floor type heating, and space allowance"
},
"factors": [
{
"name": "creep_temp_c",
"levels": [
"28",
"35"
],
"type": "continuous",
"unit": "C"
},
{
"name": "heat_mat_pct",
"levels": [
"0",
"100"
],
"type": "continuous",
"unit": "%"
},
{
"name": "space_m2",
"levels": [
"4",
"7"
],
"type": "continuous",
"unit": "m2"
}
],
"fixed_factors": {
"breed": "large_white",
"litter_size": "12"
},
"responses": [
{
"name": "piglet_survival_pct",
"optimize": "maximize",
"unit": "%"
},
{
"name": "sow_comfort",
"optimize": "maximize",
"unit": "pts"
}
],
"settings": {
"operation": "central_composite",
"test_script": "use_cases/295_pig_farrowing/sim.sh"
}
}
Experimental Matrix
The Central Composite Design produces 22 runs. Each row is one experiment with specific factor settings.
| Run | creep_temp_c | heat_mat_pct | space_m2 |
|---|---|---|---|
| 1 | 31.5 | 50 | 5.5 |
| 2 | 35 | 0 | 7 |
| 3 | 28 | 100 | 4 |
| 4 | 31.5 | 141.287 | 5.5 |
| 5 | 31.5 | 50 | 5.5 |
| 6 | 25.1099 | 50 | 5.5 |
| 7 | 31.5 | 50 | 2.76139 |
| 8 | 31.5 | 50 | 5.5 |
| 9 | 35 | 100 | 4 |
| 10 | 37.8901 | 50 | 5.5 |
| 11 | 31.5 | 50 | 5.5 |
| 12 | 31.5 | -41.2871 | 5.5 |
| 13 | 31.5 | 50 | 5.5 |
| 14 | 28 | 0 | 7 |
| 15 | 31.5 | 50 | 5.5 |
| 16 | 35 | 0 | 4 |
| 17 | 31.5 | 50 | 8.23861 |
| 18 | 35 | 100 | 7 |
| 19 | 31.5 | 50 | 5.5 |
| 20 | 28 | 0 | 4 |
| 21 | 28 | 100 | 7 |
| 22 | 31.5 | 50 | 5.5 |
Step-by-Step Workflow
1
Preview the design
Terminal
$ doe info --config use_cases/295_pig_farrowing/config.json
2
Generate the runner script
Terminal
$ doe generate --config use_cases/295_pig_farrowing/config.json \
--output use_cases/295_pig_farrowing/results/run.sh --seed 42
3
Execute the experiments
Terminal
$ bash use_cases/295_pig_farrowing/results/run.sh
4
Analyze results
Terminal
$ doe analyze --config use_cases/295_pig_farrowing/config.json
5
Get optimization recommendations
Terminal
$ doe optimize --config use_cases/295_pig_farrowing/config.json
6
Multi-objective optimization
With 2 competing responses, use --multi to find the best compromise via Derringer–Suich desirability.
Terminal
$ doe optimize --config use_cases/295_pig_farrowing/config.json --multi
7
Generate the HTML report
Terminal
$ doe report --config use_cases/295_pig_farrowing/config.json \
--output use_cases/295_pig_farrowing/results/report.html
Features Exercised
| Feature | Value |
|---|---|
| Design type | central_composite |
| Factor types | continuous (all 3) |
| Arg style | double-dash |
| Responses | 2 (piglet_survival_pct ↑, sow_comfort ↑) |
| Total runs | 22 |
Analysis Results
Generated from actual experiment runs using the DOE Helper Tool.
Response: piglet_survival_pct
Top factors: heat_mat_pct (40.0%), creep_temp_c (30.9%), space_m2 (29.1%).
ANOVA
| Source | DF | SS | MS | F | p-value |
|---|---|---|---|---|---|
| Source | DF | SS | MS | F | p-value |
| creep_temp_c | 4 | 115.7879 | 28.9470 | 1.343 | 0.3264 |
| heat_mat_pct | 4 | 293.5379 | 73.3845 | 3.405 | 0.0587 |
| space_m2 | 4 | 238.4545 | 59.6136 | 2.766 | 0.0944 |
| Lack | of | Fit | 2 | 0.0000 | 0.0000 |
| Pure | Error | 7 | 150.8750 | ||
| Error | 9 | 51.6742 | 21.5536 | ||
| Total | 21 | 699.4545 | 33.3074 |

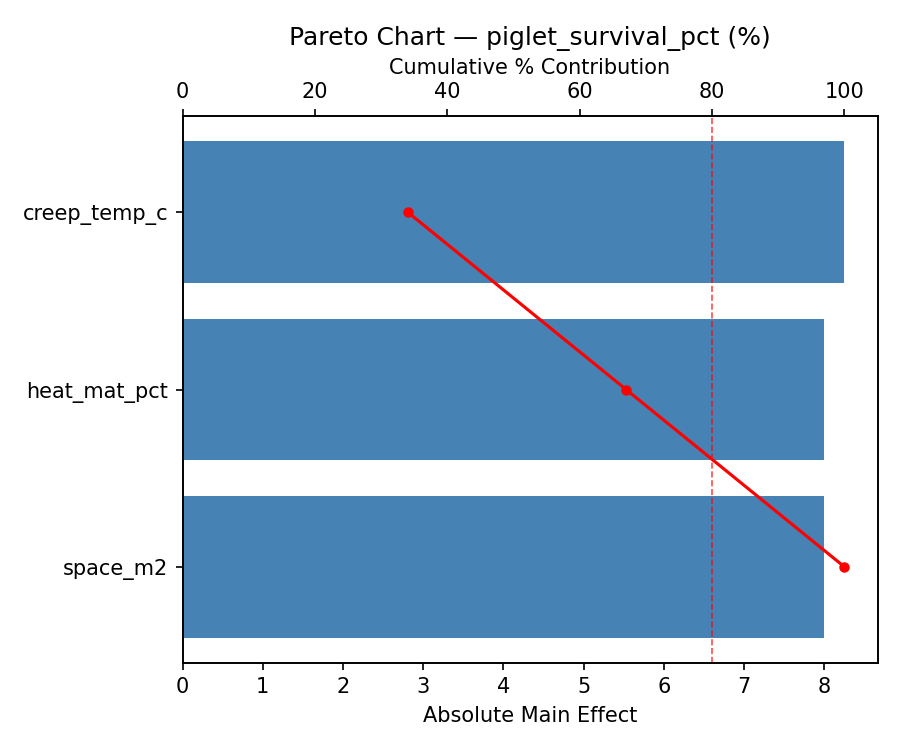

Pareto Chart

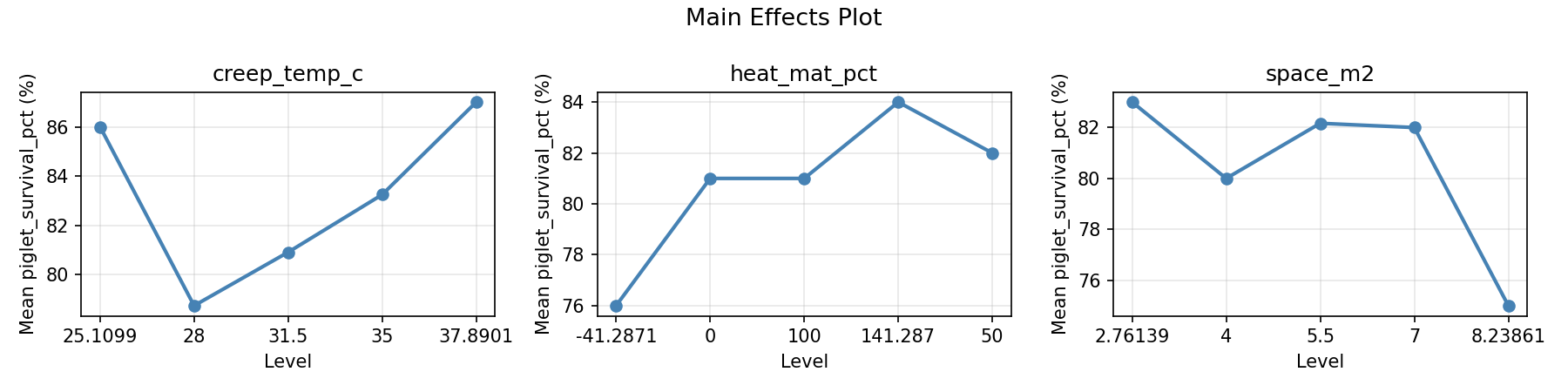

Main Effects Plot

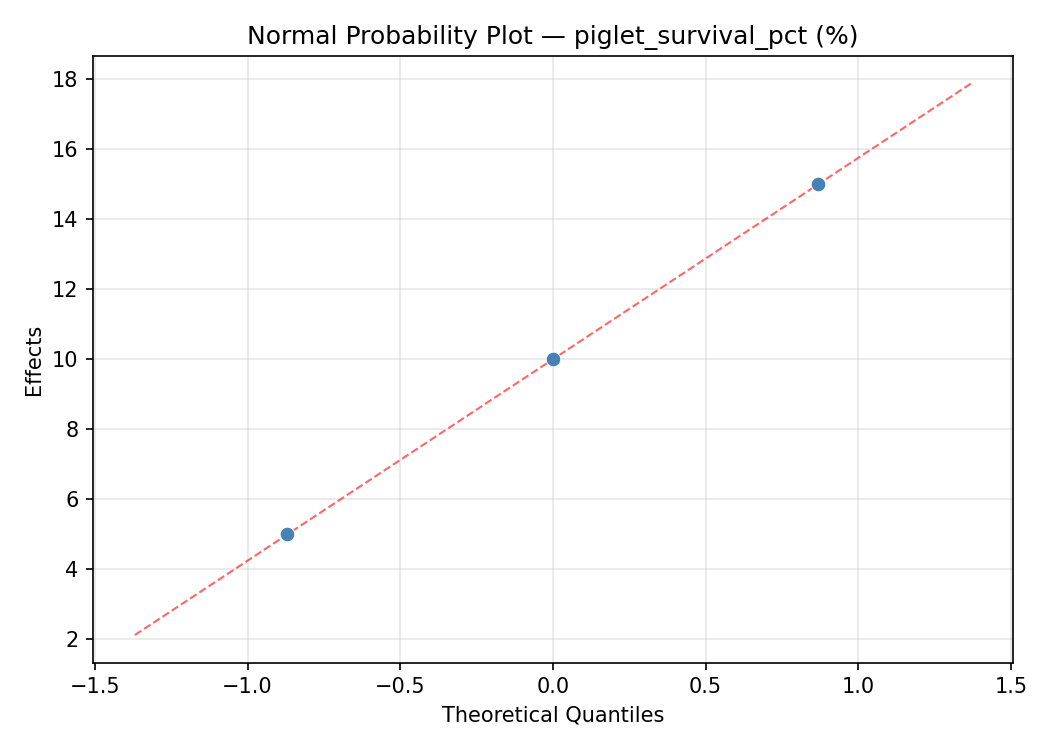

Normal Probability Plot of Effects

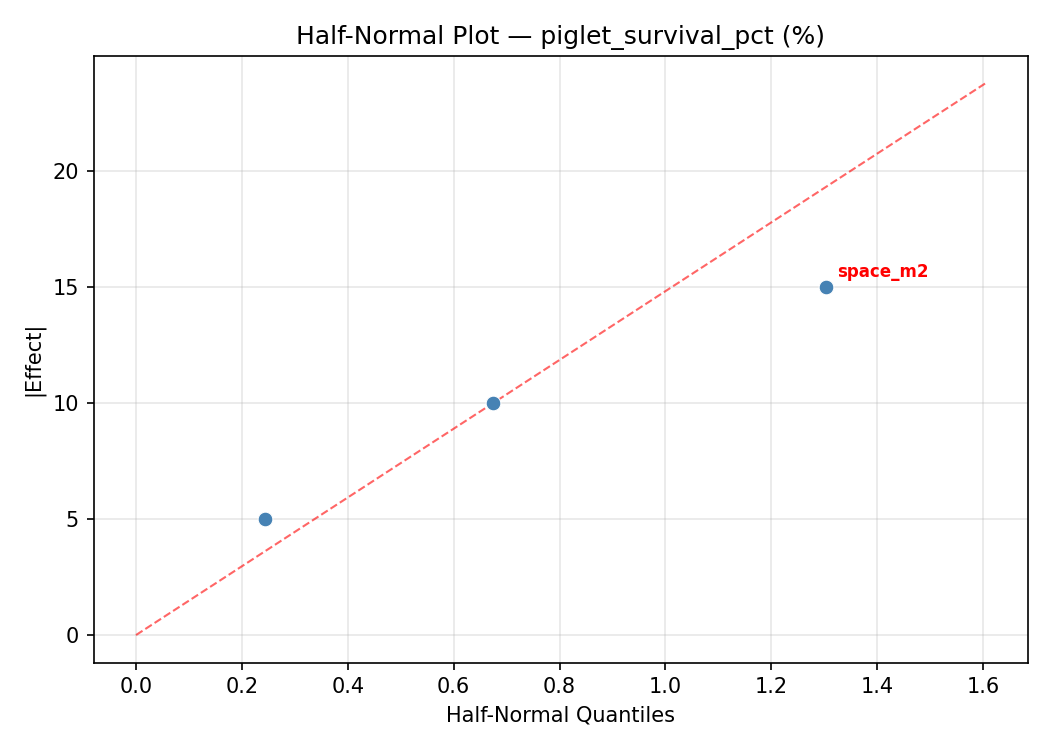

Half-Normal Plot of Effects

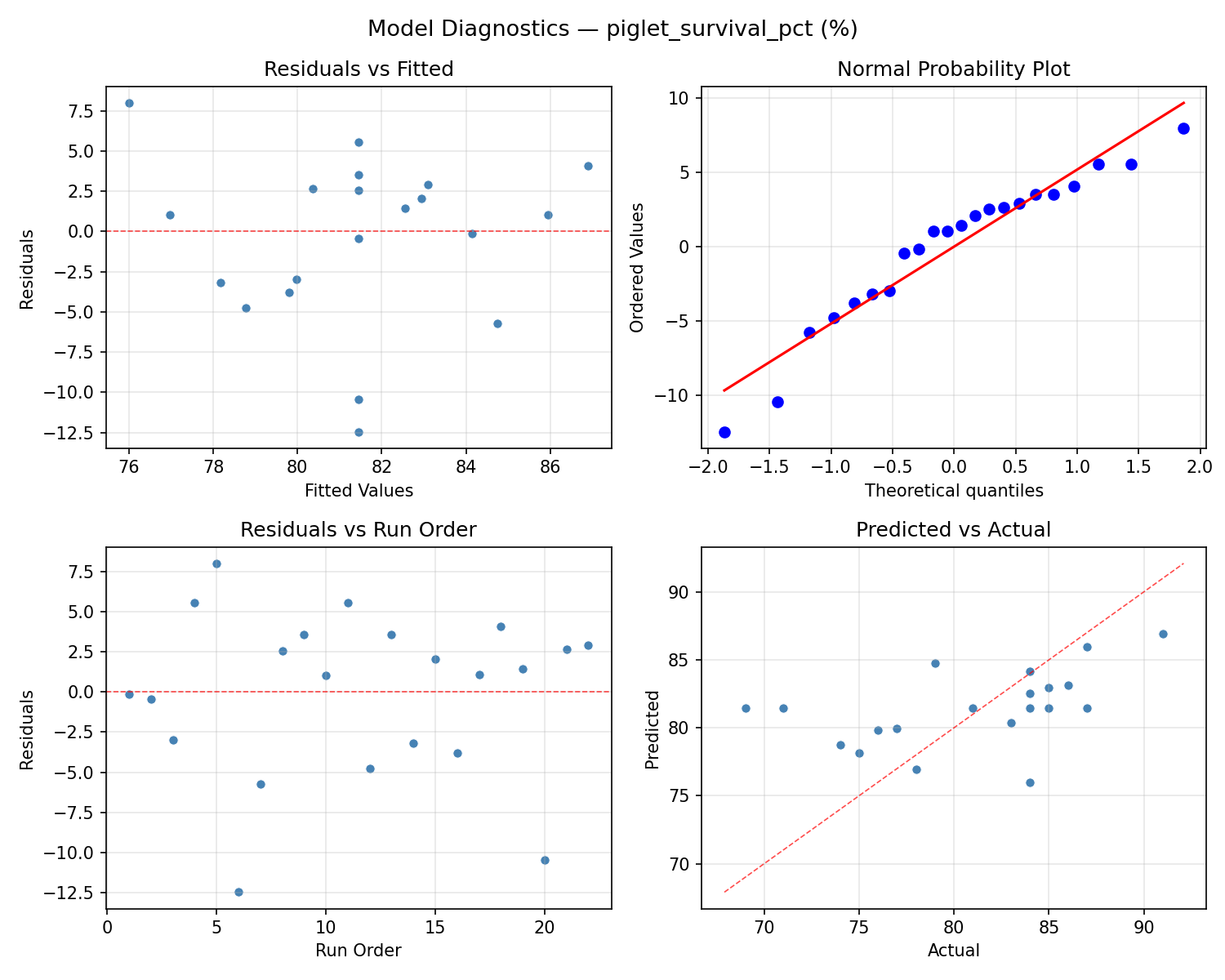

Model Diagnostics
Response: sow_comfort
Top factors: space_m2 (34.9%), creep_temp_c (33.6%), heat_mat_pct (31.5%).
ANOVA
| Source | DF | SS | MS | F | p-value |
|---|---|---|---|---|---|
| Source | DF | SS | MS | F | p-value |
| creep_temp_c | 4 | 8.6933 | 2.1733 | 4.422 | 0.0299 |
| heat_mat_pct | 4 | 12.2300 | 3.0575 | 6.222 | 0.0110 |
| space_m2 | 4 | 15.9458 | 3.9865 | 8.112 | 0.0047 |
| Lack | of | Fit | 2 | 0.0000 | 0.0000 |
| Pure | Error | 7 | 3.4400 | ||
| Error | 9 | 0.0000 | 0.4914 | ||
| Total | 21 | 35.9800 | 1.7133 |

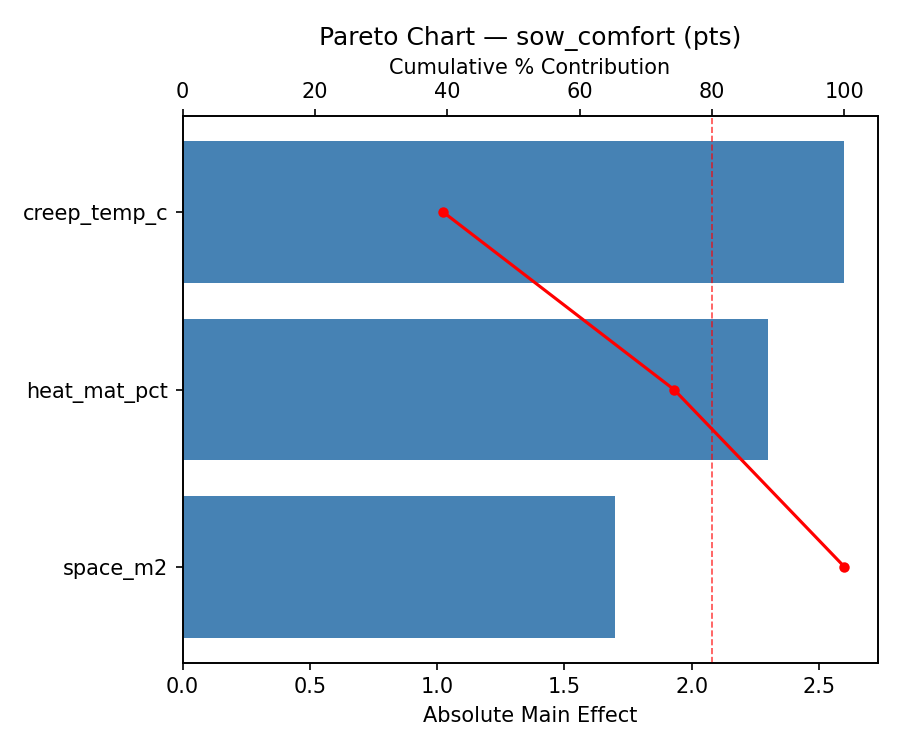

Pareto Chart

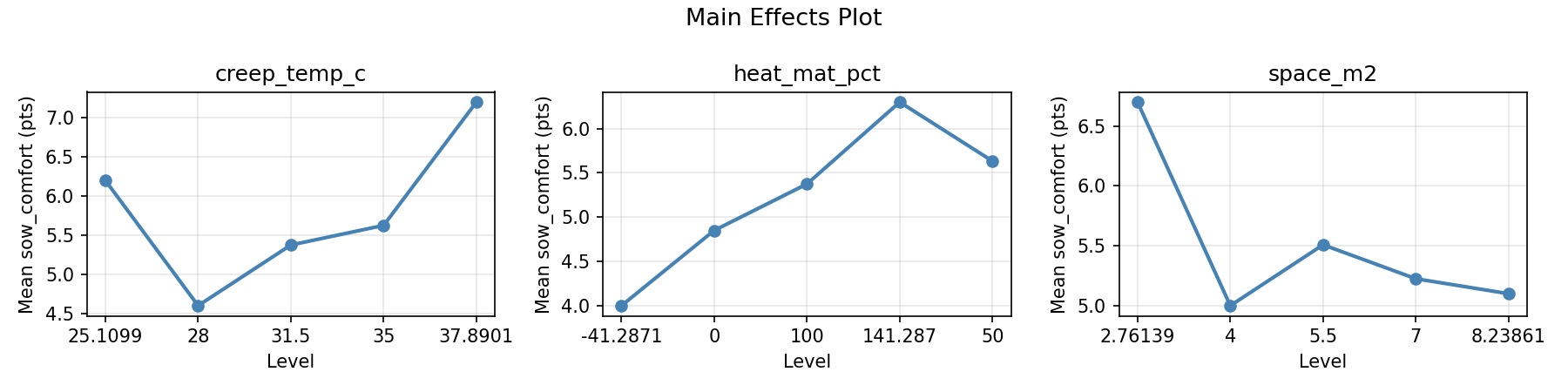

Main Effects Plot

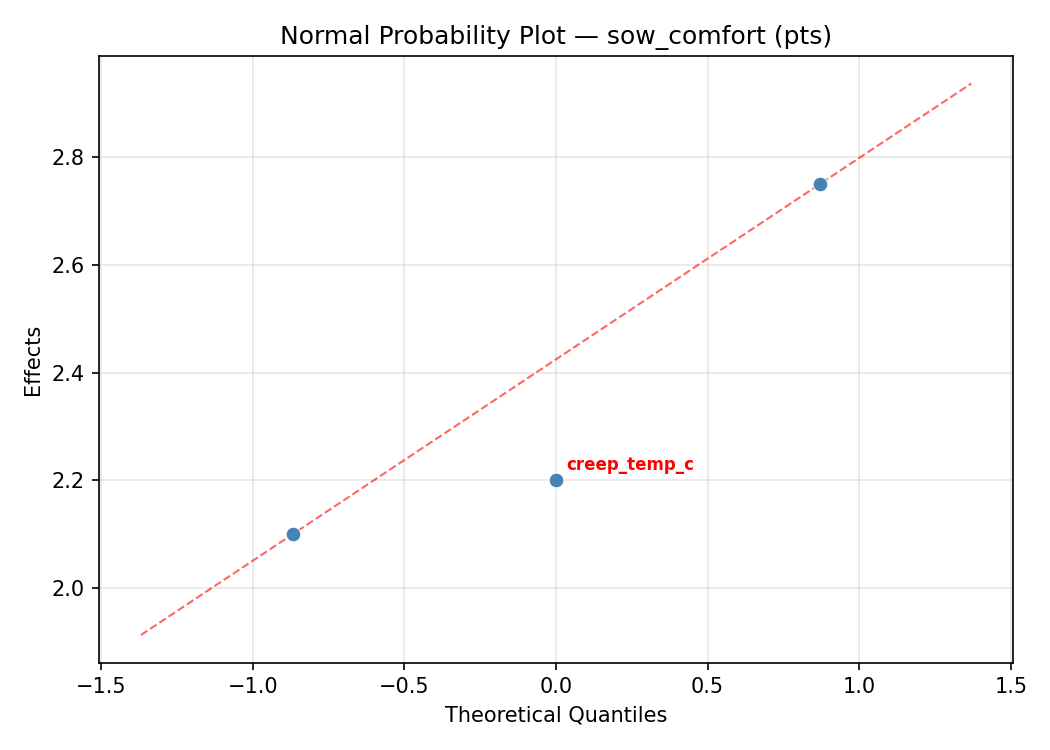

Normal Probability Plot of Effects

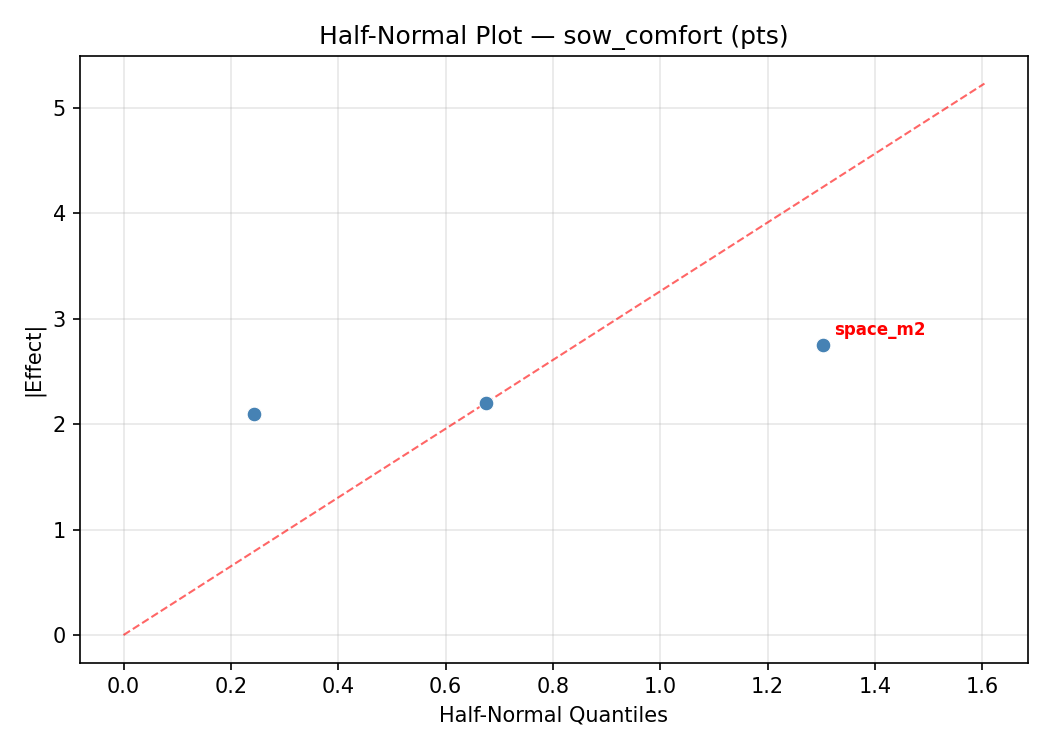

Half-Normal Plot of Effects

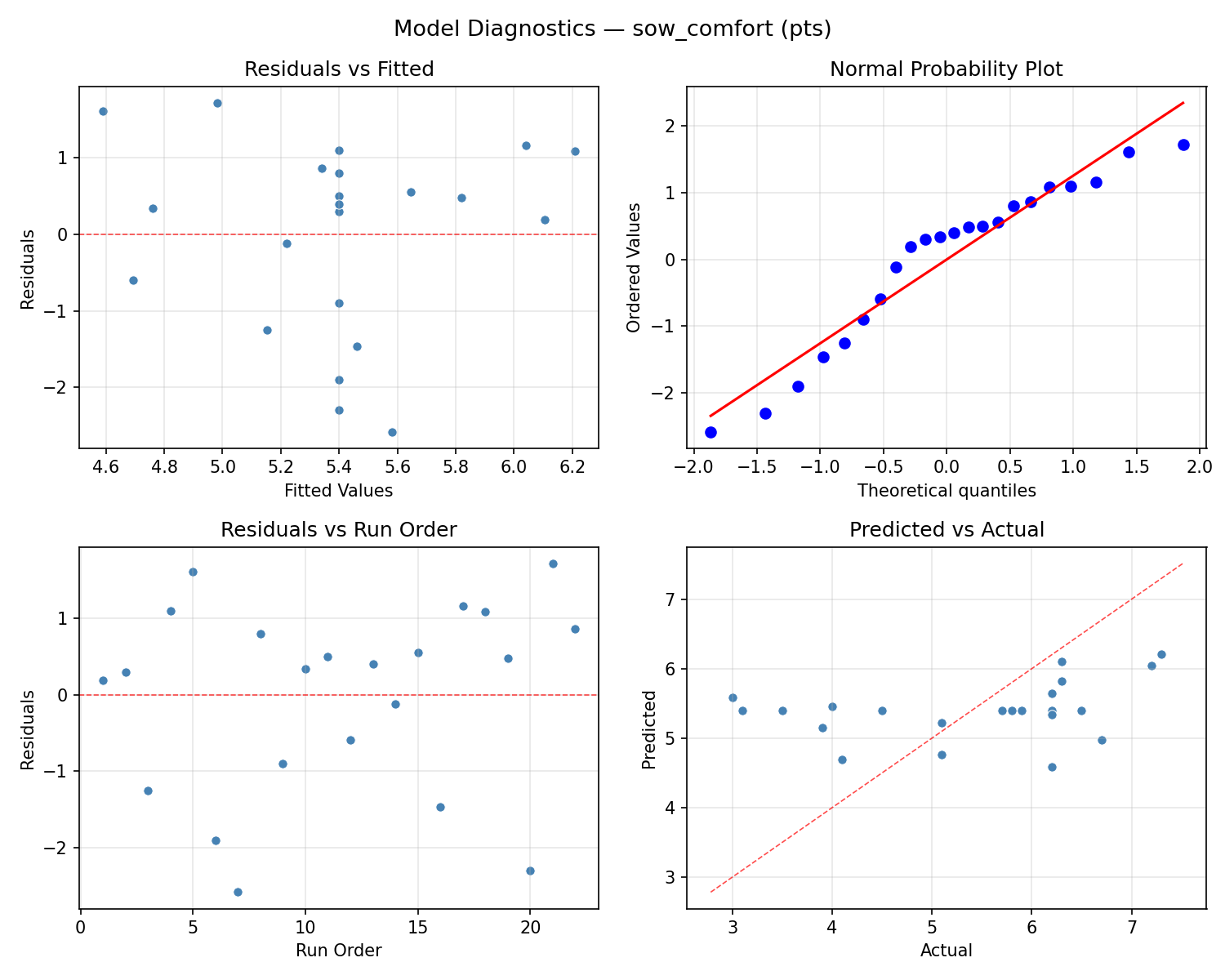

Model Diagnostics
Response Surface Plots
3D surfaces fitted with quadratic RSM. Red dots are observed data points.

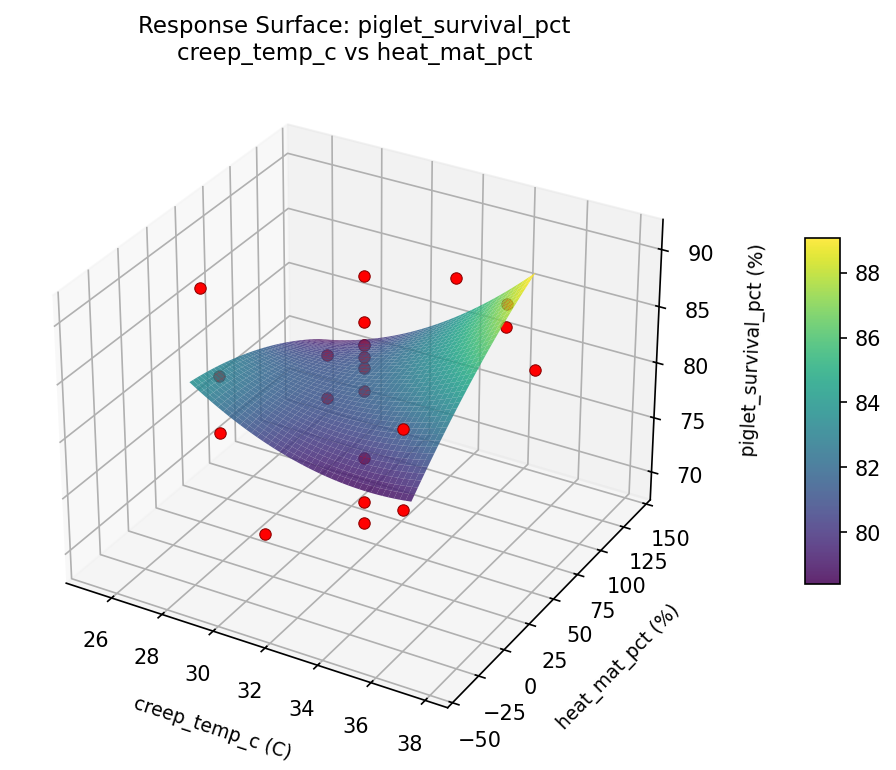

piglet survival pct creep temp c vs heat mat pct

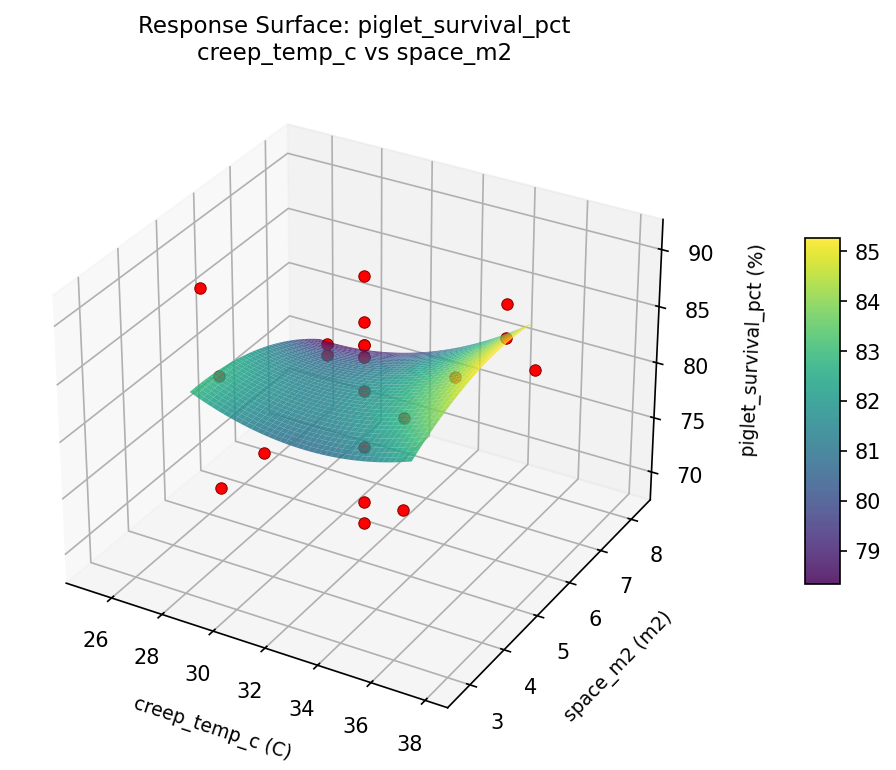

piglet survival pct creep temp c vs space m2
piglet survival pct heat mat pct vs space m2

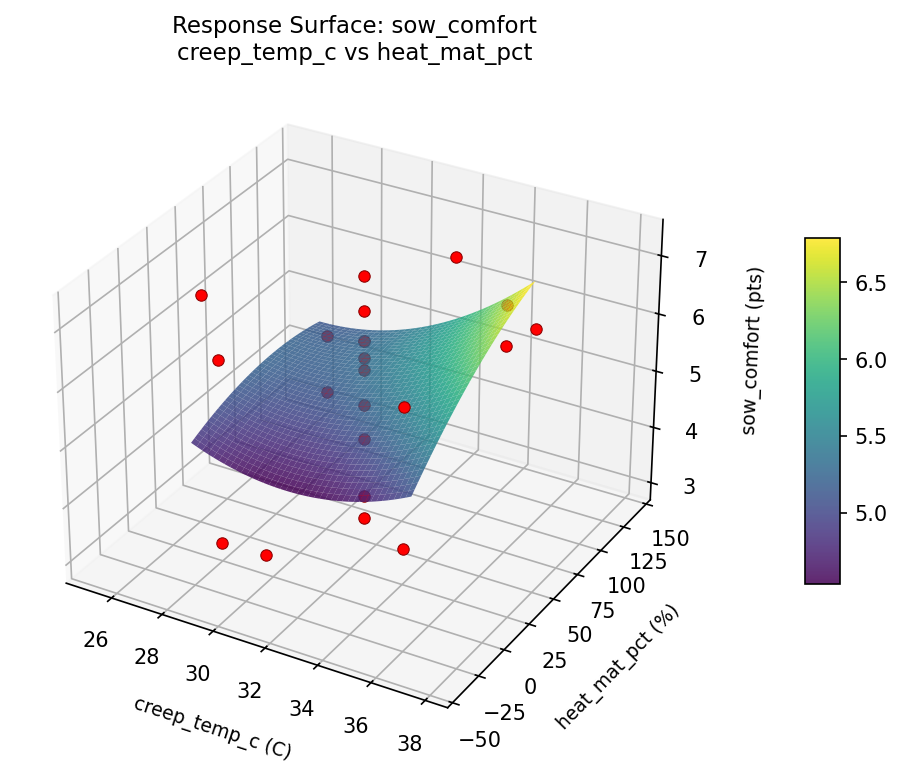

sow comfort creep temp c vs heat mat pct

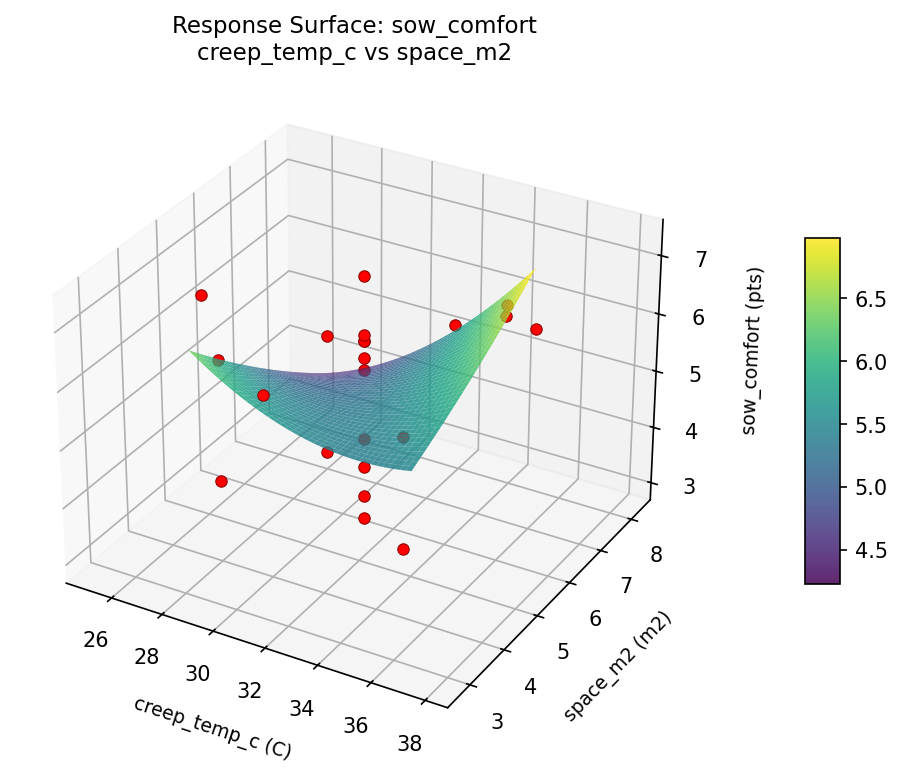

sow comfort creep temp c vs space m2

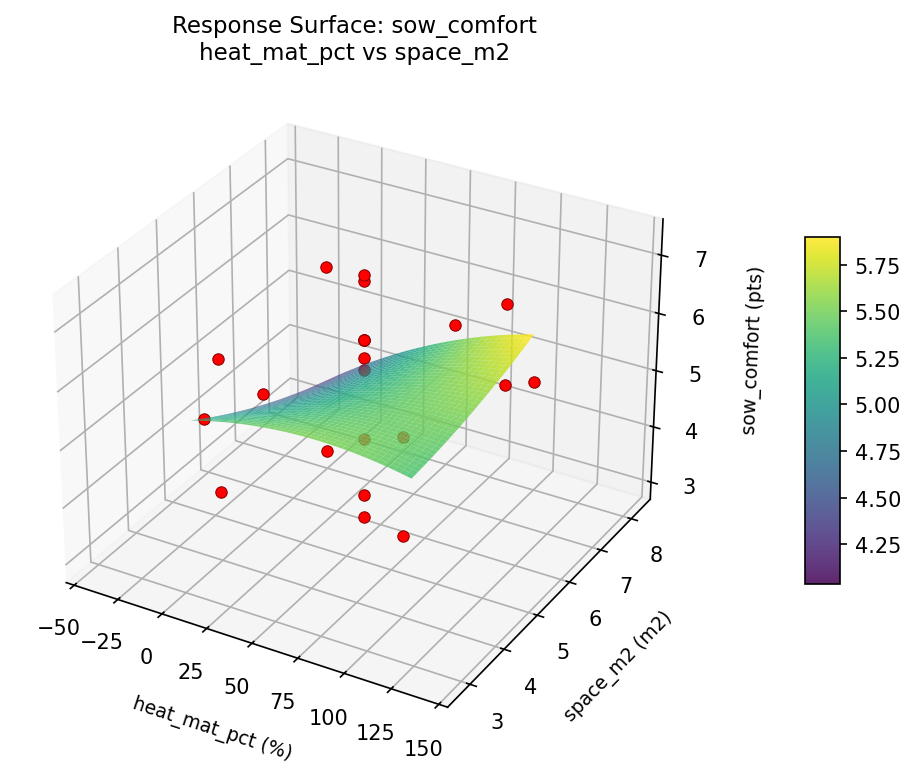

sow comfort heat mat pct vs space m2
Multi-Objective Optimization
When responses compete, Derringer–Suich desirability finds the best compromise. Each response is scaled to a 0–1 desirability, then combined via a weighted geometric mean.
Overall Desirability
D = 0.9545
Per-Response Desirability
| Response | Weight | Desirability | Predicted | Dir |
|---|---|---|---|---|
piglet_survival_pct |
2.0 |
0.9545
|
91.00 0.9545 91.00 % | ↑ |
sow_comfort |
1.5 |
0.9545
|
7.30 0.9545 7.30 pts | ↑ |
Recommended Settings
| Factor | Value |
|---|---|
creep_temp_c | 31.5 C |
heat_mat_pct | 50 % |
space_m2 | 5.5 m2 |
Source: from observed run #18
Trade-off Summary
Sacrifice = how much worse than single-objective best.
| Response | Predicted | Best Observed | Sacrifice |
|---|---|---|---|
sow_comfort | 7.30 | 7.30 | +0.00 |
Top 3 Runs by Desirability
| Run | D | Factor Settings |
|---|---|---|
| #17 | 0.8481 | creep_temp_c=31.5, heat_mat_pct=50, space_m2=5.5 |
| #4 | 0.7876 | creep_temp_c=31.5, heat_mat_pct=50, space_m2=8.23861 |
Model Quality
| Response | R² | Type |
|---|---|---|
sow_comfort | 0.6186 | quadratic |
Full Multi-Objective Output
doe optimize --multi
============================================================
MULTI-OBJECTIVE OPTIMIZATION
Method: Derringer-Suich Desirability Function
============================================================
Overall desirability: D = 0.9545
Response Weight Desirability Predicted Direction
---------------------------------------------------------------------
piglet_survival_pct 2.0 0.9545 91.00 % ↑
sow_comfort 1.5 0.9545 7.30 pts ↑
Recommended settings:
creep_temp_c = 31.5 C
heat_mat_pct = 50 %
space_m2 = 5.5 m2
(from observed run #18)
Trade-off summary:
piglet_survival_pct: 91.00 (best observed: 91.00, sacrifice: +0.00)
sow_comfort: 7.30 (best observed: 7.30, sacrifice: +0.00)
Model quality:
piglet_survival_pct: R² = 0.6385 (quadratic)
sow_comfort: R² = 0.6186 (quadratic)
Top 3 observed runs by overall desirability:
1. Run #18 (D=0.9545): creep_temp_c=31.5, heat_mat_pct=50, space_m2=5.5
2. Run #17 (D=0.8481): creep_temp_c=31.5, heat_mat_pct=50, space_m2=5.5
3. Run #4 (D=0.7876): creep_temp_c=31.5, heat_mat_pct=50, space_m2=8.23861
Full Analysis Output
doe analyze
