Summary
This experiment investigates firewall rule ordering. Plackett-Burman screening of 6 iptables/nftables parameters for packet processing throughput.
The design varies 6 factors: rule count (rules), ranging from 100 to 5000, conntrack max (entries), ranging from 65536 to 1048576, rule ordering, ranging from frequency to sequential, hashlimit burst (packets), ranging from 5 to 100, nf tables, ranging from iptables to nftables, and batch verdict, ranging from off to on. The goal is to optimize 2 responses: throughput mpps (Mpps) (maximize) and latency us (us) (minimize). Fixed conditions held constant across all runs include interface = eth0, protocol mix = 80_tcp_20_udp.
A Plackett-Burman screening design was used to efficiently test 6 factors in only 8 runs. This design assumes interactions are negligible and focuses on identifying the most influential main effects.
Key Findings
For throughput mpps, the most influential factors were rule count (42.1%), nf tables (21.1%), batch verdict (14.3%). The best observed value was 4.53 (at rule count = 100, conntrack max = 1048576, rule ordering = frequency).
For latency us, the most influential factors were rule count (55.1%), nf tables (16.6%), batch verdict (14.3%). The best observed value was 0.4 (at rule count = 100, conntrack max = 1048576, rule ordering = frequency).
Recommended Next Steps
- Follow up with a response surface design (CCD or Box-Behnken) on the top 3–4 factors to model curvature and find the true optimum.
- Consider whether any fixed factors should be varied in a future study.
- The screening results can guide factor reduction — drop factors contributing less than 5% and re-run with a smaller, more focused design.
Experimental Setup
Factors
| Factor | Low | High | Unit |
|---|---|---|---|
rule_count | 100 | 5000 | rules |
conntrack_max | 65536 | 1048576 | entries |
rule_ordering | frequency | sequential | |
hashlimit_burst | 5 | 100 | packets |
nf_tables | iptables | nftables | |
batch_verdict | off | on |
Fixed: interface = eth0, protocol_mix = 80_tcp_20_udp
Responses
| Response | Direction | Unit |
|---|---|---|
throughput_mpps | ↑ maximize | Mpps |
latency_us | ↓ minimize | us |
Configuration
use_cases/49_firewall_rule_ordering/config.json
{
"metadata": {
"name": "Firewall Rule Ordering",
"description": "Plackett-Burman screening of 6 iptables/nftables parameters for packet processing throughput"
},
"factors": [
{
"name": "rule_count",
"levels": [
"100",
"5000"
],
"type": "continuous",
"unit": "rules"
},
{
"name": "conntrack_max",
"levels": [
"65536",
"1048576"
],
"type": "continuous",
"unit": "entries"
},
{
"name": "rule_ordering",
"levels": [
"frequency",
"sequential"
],
"type": "categorical",
"unit": ""
},
{
"name": "hashlimit_burst",
"levels": [
"5",
"100"
],
"type": "continuous",
"unit": "packets"
},
{
"name": "nf_tables",
"levels": [
"iptables",
"nftables"
],
"type": "categorical",
"unit": ""
},
{
"name": "batch_verdict",
"levels": [
"off",
"on"
],
"type": "categorical",
"unit": ""
}
],
"fixed_factors": {
"interface": "eth0",
"protocol_mix": "80_tcp_20_udp"
},
"responses": [
{
"name": "throughput_mpps",
"optimize": "maximize",
"unit": "Mpps"
},
{
"name": "latency_us",
"optimize": "minimize",
"unit": "us"
}
],
"settings": {
"operation": "plackett_burman",
"test_script": "use_cases/49_firewall_rule_ordering/sim.sh"
}
}
Experimental Matrix
The Plackett-Burman Design produces 8 runs. Each row is one experiment with specific factor settings.
| Run | rule_count | conntrack_max | rule_ordering | hashlimit_burst | nf_tables | batch_verdict |
|---|---|---|---|---|---|---|
| 1 | 5000 | 1048576 | sequential | 5 | iptables | off |
| 2 | 100 | 65536 | sequential | 100 | iptables | off |
| 3 | 100 | 1048576 | frequency | 100 | iptables | on |
| 4 | 5000 | 1048576 | sequential | 100 | nftables | on |
| 5 | 100 | 1048576 | frequency | 5 | nftables | off |
| 6 | 5000 | 65536 | frequency | 100 | nftables | off |
| 7 | 100 | 65536 | sequential | 5 | nftables | on |
| 8 | 5000 | 65536 | frequency | 5 | iptables | on |
Step-by-Step Workflow
1
Preview the design
Terminal
$ doe info --config use_cases/49_firewall_rule_ordering/config.json
2
Generate the runner script
Terminal
$ doe generate --config use_cases/49_firewall_rule_ordering/config.json \
--output use_cases/49_firewall_rule_ordering/results/run.sh --seed 42
3
Execute the experiments
Terminal
$ bash use_cases/49_firewall_rule_ordering/results/run.sh
4
Analyze results
Terminal
$ doe analyze --config use_cases/49_firewall_rule_ordering/config.json
5
Get optimization recommendations
Terminal
$ doe optimize --config use_cases/49_firewall_rule_ordering/config.json
6
Multi-objective optimization
With 2 competing responses, use --multi to find the best compromise via Derringer–Suich desirability.
Terminal
$ doe optimize --config use_cases/49_firewall_rule_ordering/config.json --multi
7
Generate the HTML report
Terminal
$ doe report --config use_cases/49_firewall_rule_ordering/config.json \
--output use_cases/49_firewall_rule_ordering/results/report.html
Features Exercised
| Feature | Value |
|---|---|
| Design type | plackett_burman |
| Factor types | continuous (3), categorical (3) |
| Arg style | double-dash |
| Responses | 2 (throughput_mpps ↑, latency_us ↓) |
| Total runs | 8 |
Analysis Results
Generated from actual experiment runs using the DOE Helper Tool.
Response: throughput_mpps
Top factors: rule_count (42.1%), nf_tables (21.1%), batch_verdict (14.3%).
ANOVA
| Source | DF | SS | MS | F | p-value |
|---|---|---|---|---|---|
| Source | DF | SS | MS | F | p-value |
| rule_count | 1 | 6.3546 | 6.3546 | 7.039 | 0.0328 |
| conntrack_max | 1 | 0.4656 | 0.4656 | 0.516 | 0.4959 |
| rule_ordering | 1 | 0.1225 | 0.1225 | 0.136 | 0.7235 |
| hashlimit_burst | 1 | 0.0990 | 0.0990 | 0.110 | 0.7502 |
| nf_tables | 1 | 1.5931 | 1.5931 | 1.765 | 0.2257 |
| batch_verdict | 1 | 0.7381 | 0.7381 | 0.818 | 0.3959 |
| rule_count*conntrack_max | 1 | 0.1225 | 0.1225 | 0.136 | 0.7235 |
| rule_count*rule_ordering | 1 | 0.4656 | 0.4656 | 0.516 | 0.4959 |
| rule_count*hashlimit_burst | 1 | 1.5931 | 1.5931 | 1.765 | 0.2257 |
| rule_count*nf_tables | 1 | 0.0990 | 0.0990 | 0.110 | 0.7502 |
| rule_count*batch_verdict | 1 | 1.0878 | 1.0878 | 1.205 | 0.3087 |
| conntrack_max*rule_ordering | 1 | 6.3546 | 6.3546 | 7.039 | 0.0328 |
| conntrack_max*hashlimit_burst | 1 | 0.7381 | 0.7381 | 0.818 | 0.3959 |
| conntrack_max*nf_tables | 1 | 1.0878 | 1.0878 | 1.205 | 0.3087 |
| conntrack_max*batch_verdict | 1 | 0.0990 | 0.0990 | 0.110 | 0.7502 |
| rule_ordering*hashlimit_burst | 1 | 1.0878 | 1.0878 | 1.205 | 0.3087 |
| rule_ordering*nf_tables | 1 | 0.7381 | 0.7381 | 0.818 | 0.3959 |
| rule_ordering*batch_verdict | 1 | 1.5931 | 1.5931 | 1.765 | 0.2257 |
| hashlimit_burst*nf_tables | 1 | 6.3546 | 6.3546 | 7.039 | 0.0328 |
| hashlimit_burst*batch_verdict | 1 | 0.4656 | 0.4656 | 0.516 | 0.4959 |
| nf_tables*batch_verdict | 1 | 0.1225 | 0.1225 | 0.136 | 0.7235 |
| Error | (Lenth | PSE) | 7 | 6.3196 | 0.9028 |
| Total | 7 | 10.4608 | 1.4944 |

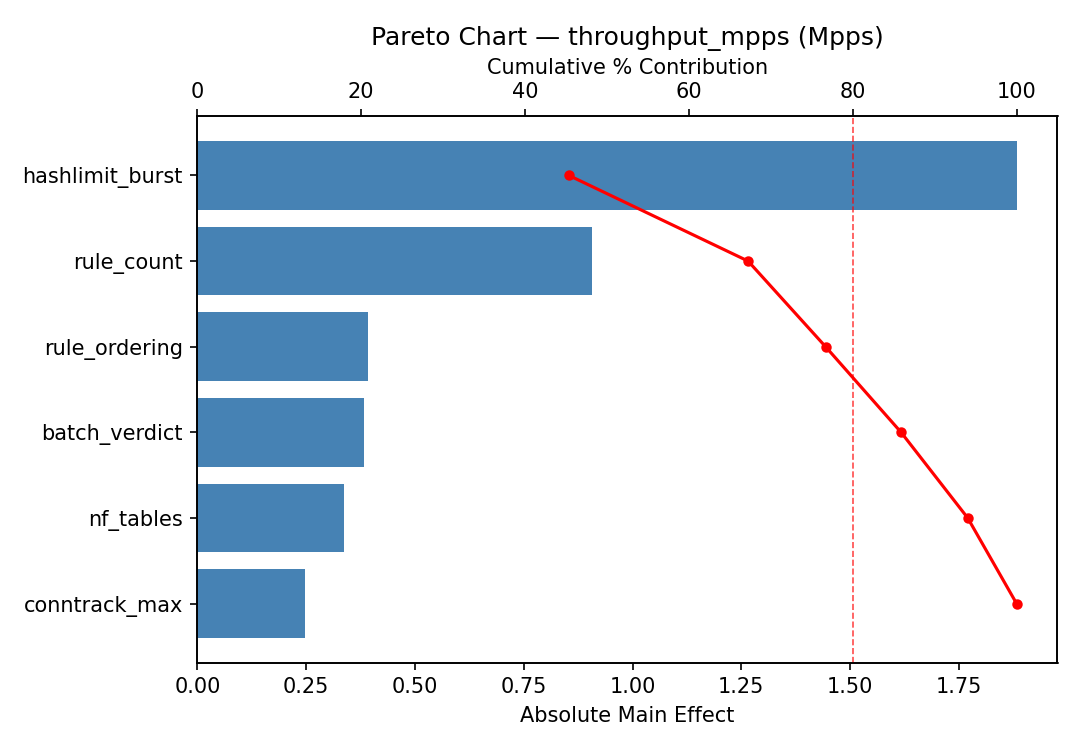

Pareto Chart

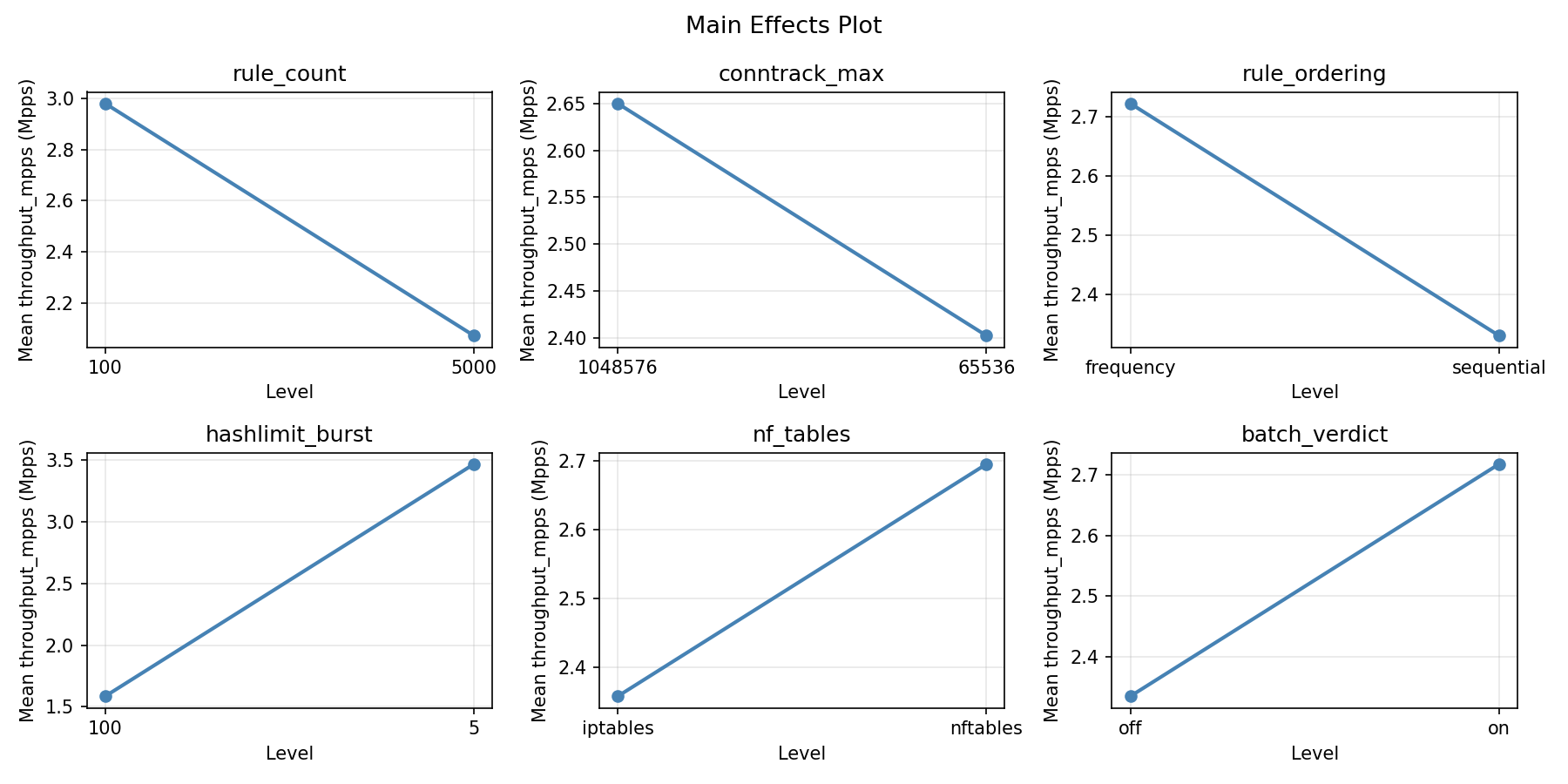

Main Effects Plot

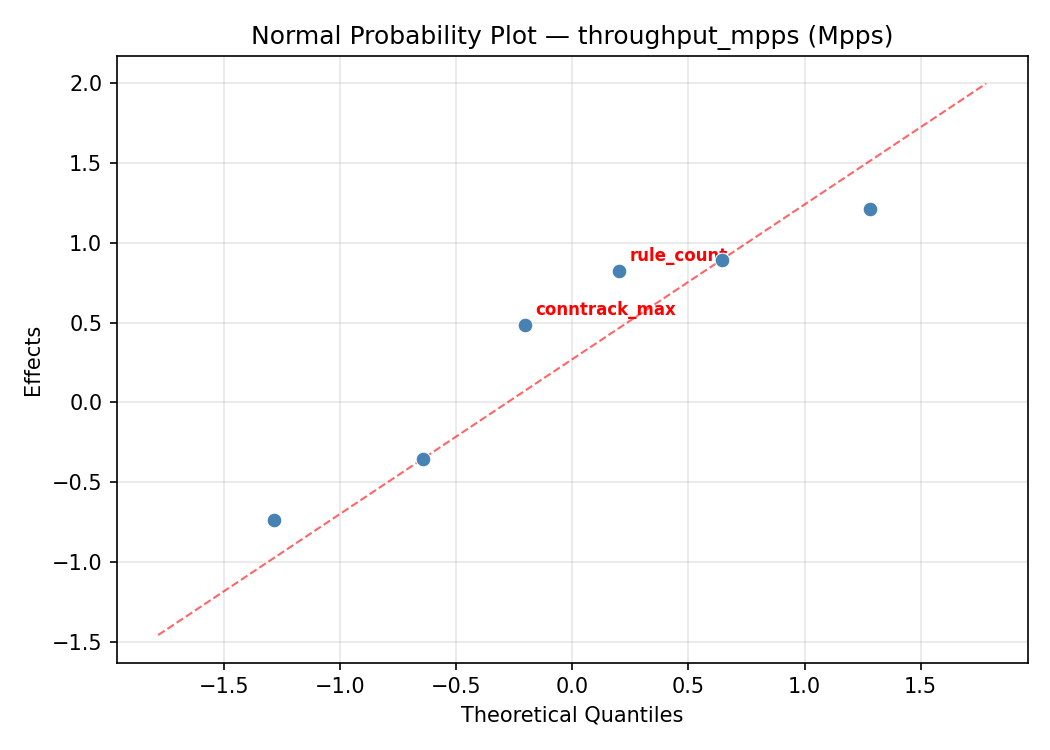

Normal Probability Plot of Effects

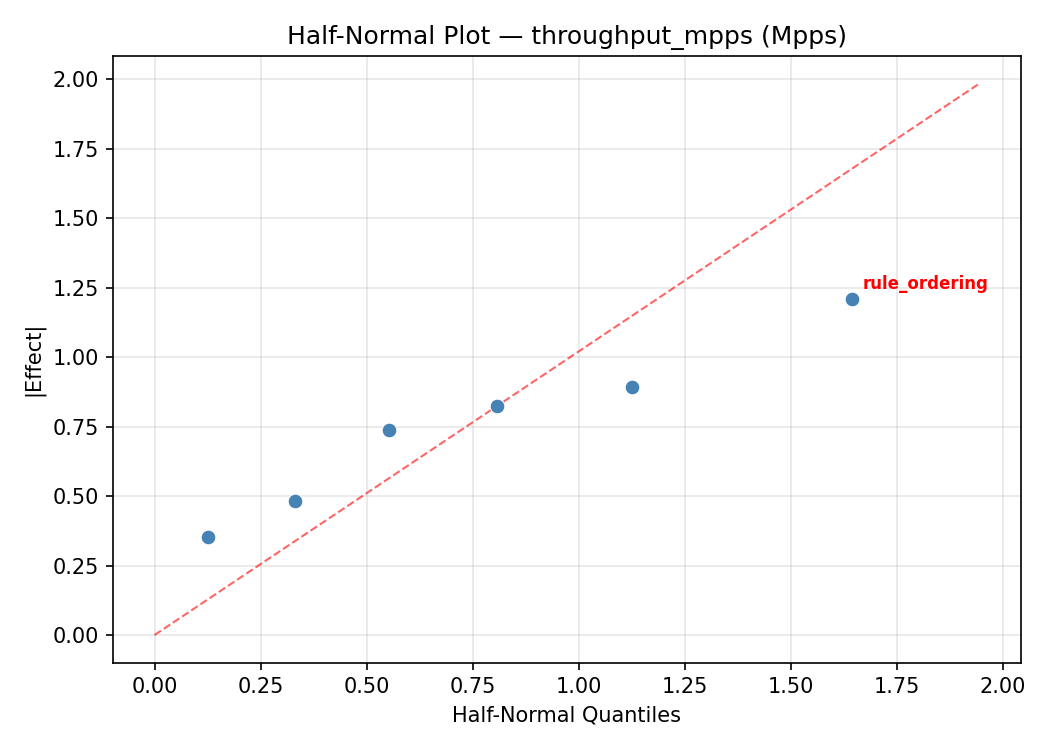

Half-Normal Plot of Effects
Model Diagnostics
Response: latency_us
Top factors: rule_count (55.1%), nf_tables (16.6%), batch_verdict (14.3%).
ANOVA
| Source | DF | SS | MS | F | p-value |
|---|---|---|---|---|---|
| Source | DF | SS | MS | F | p-value |
| rule_count | 1 | 664.3012 | 664.3012 | 11.257 | 0.0122 |
| conntrack_max | 1 | 34.0313 | 34.0313 | 0.577 | 0.4724 |
| rule_ordering | 1 | 0.1012 | 0.1012 | 0.002 | 0.9681 |
| hashlimit_burst | 1 | 0.1513 | 0.1513 | 0.003 | 0.9610 |
| nf_tables | 1 | 59.9512 | 59.9512 | 1.016 | 0.3471 |
| batch_verdict | 1 | 44.6512 | 44.6512 | 0.757 | 0.4132 |
| rule_count*conntrack_max | 1 | 0.1013 | 0.1013 | 0.002 | 0.9681 |
| rule_count*rule_ordering | 1 | 34.0313 | 34.0313 | 0.577 | 0.4724 |
| rule_count*hashlimit_burst | 1 | 59.9513 | 59.9513 | 1.016 | 0.3471 |
| rule_count*nf_tables | 1 | 0.1513 | 0.1513 | 0.003 | 0.9610 |
| rule_count*batch_verdict | 1 | 95.9113 | 95.9113 | 1.625 | 0.2430 |
| conntrack_max*rule_ordering | 1 | 664.3012 | 664.3012 | 11.257 | 0.0122 |
| conntrack_max*hashlimit_burst | 1 | 44.6512 | 44.6512 | 0.757 | 0.4132 |
| conntrack_max*nf_tables | 1 | 95.9113 | 95.9113 | 1.625 | 0.2430 |
| conntrack_max*batch_verdict | 1 | 0.1513 | 0.1513 | 0.003 | 0.9610 |
| rule_ordering*hashlimit_burst | 1 | 95.9113 | 95.9113 | 1.625 | 0.2430 |
| rule_ordering*nf_tables | 1 | 44.6513 | 44.6513 | 0.757 | 0.4132 |
| rule_ordering*batch_verdict | 1 | 59.9513 | 59.9513 | 1.016 | 0.3471 |
| hashlimit_burst*nf_tables | 1 | 664.3012 | 664.3012 | 11.257 | 0.0122 |
| hashlimit_burst*batch_verdict | 1 | 34.0313 | 34.0313 | 0.577 | 0.4724 |
| nf_tables*batch_verdict | 1 | 0.1013 | 0.1013 | 0.002 | 0.9681 |
| Error | (Lenth | PSE) | 7 | 413.0831 | 59.0119 |
| Total | 7 | 899.0987 | 128.4427 |

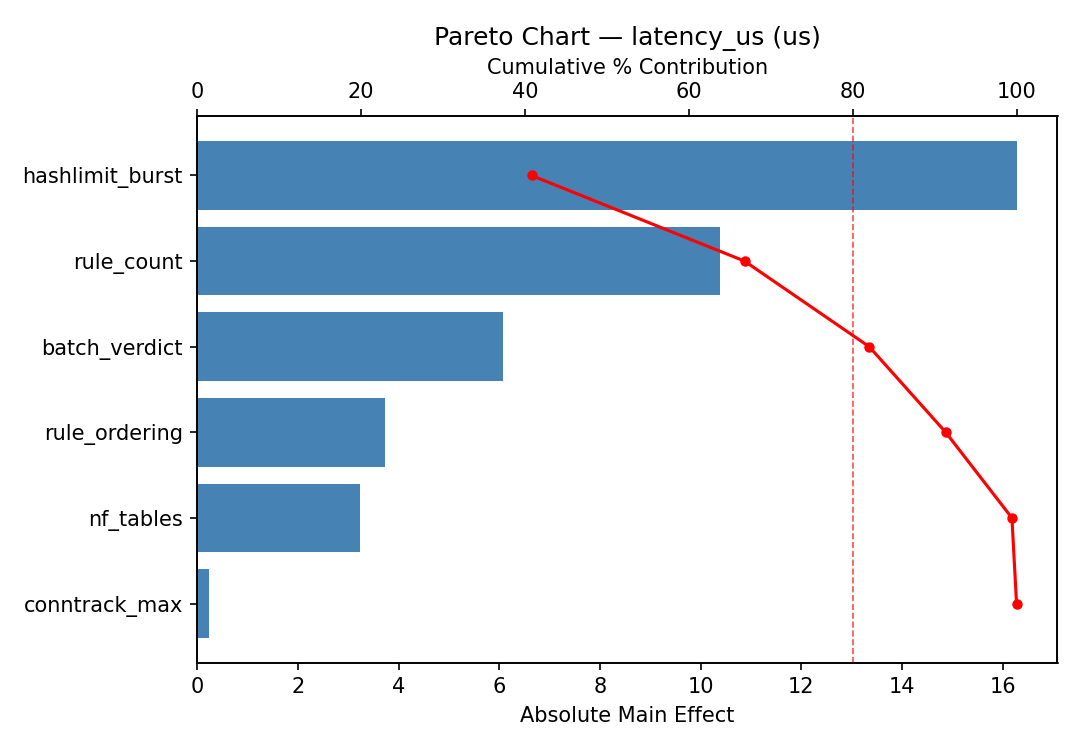

Pareto Chart

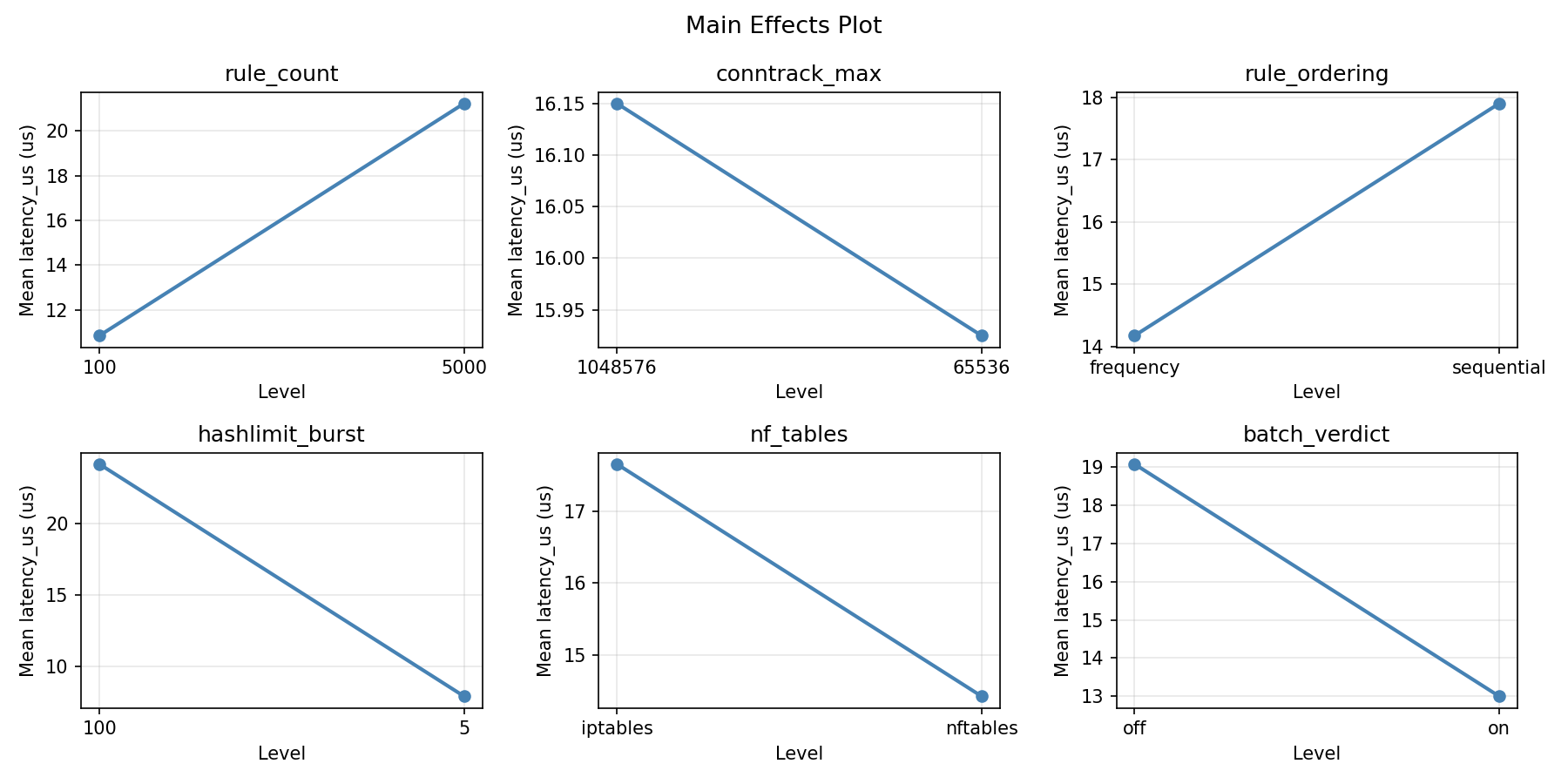

Main Effects Plot
Normal Probability Plot of Effects

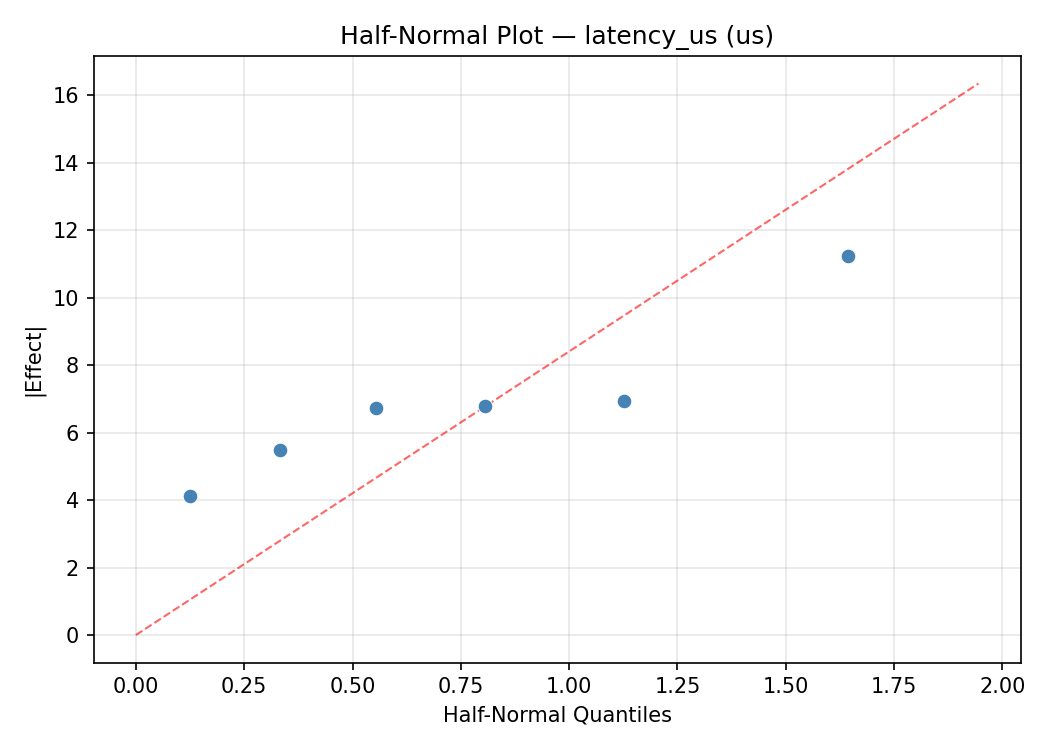

Half-Normal Plot of Effects

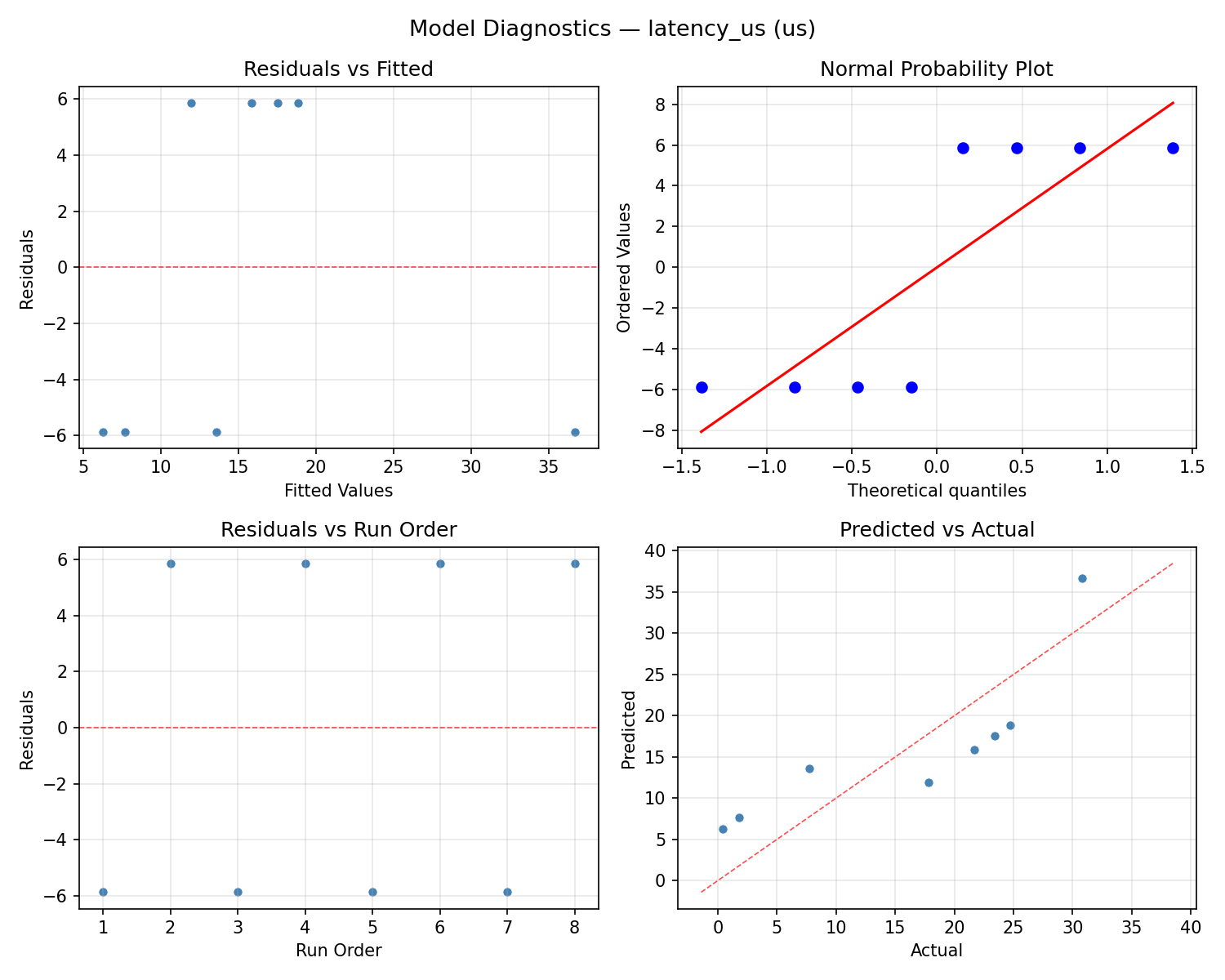

Model Diagnostics
Response Surface Plots
3D surfaces fitted with quadratic RSM. Red dots are observed data points.

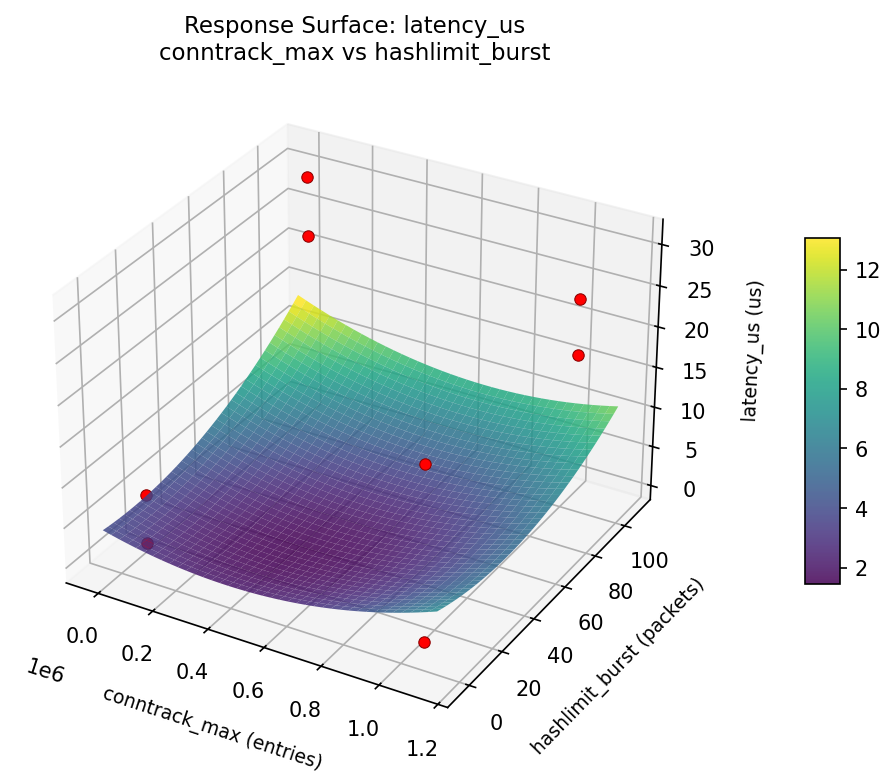

latency us conntrack max vs hashlimit burst

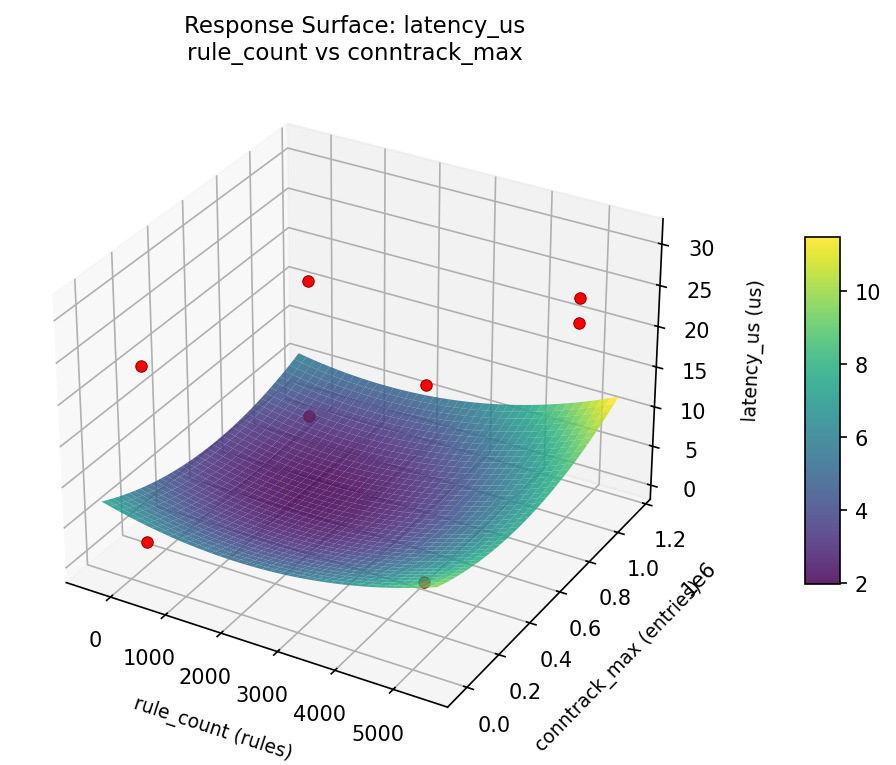

latency us rule count vs conntrack max
latency us rule count vs hashlimit burst

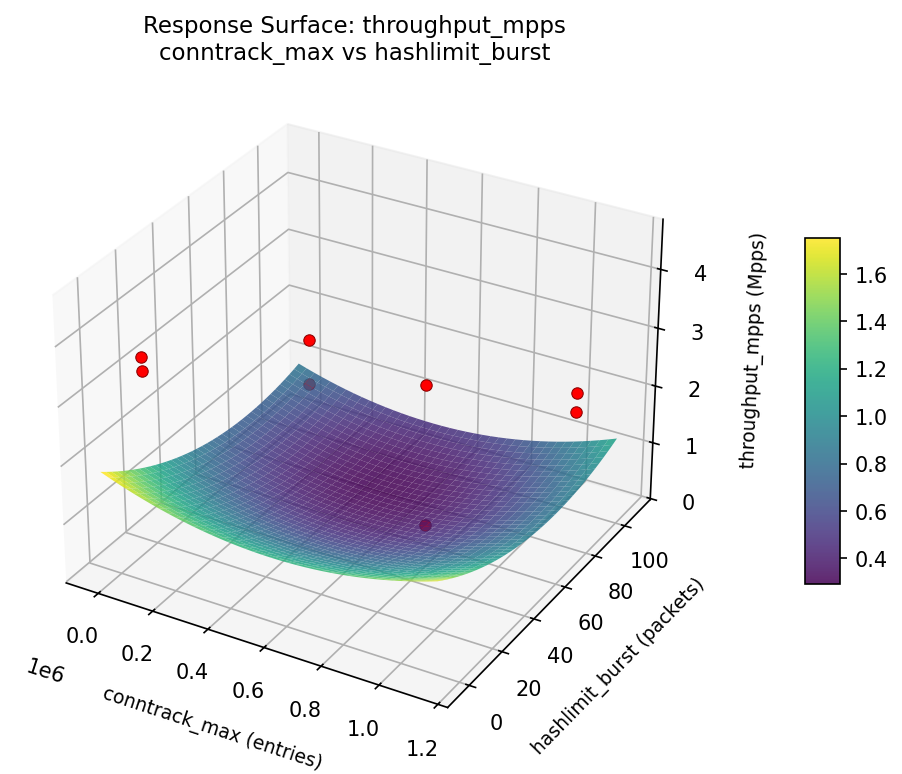

throughput mpps conntrack max vs hashlimit burst

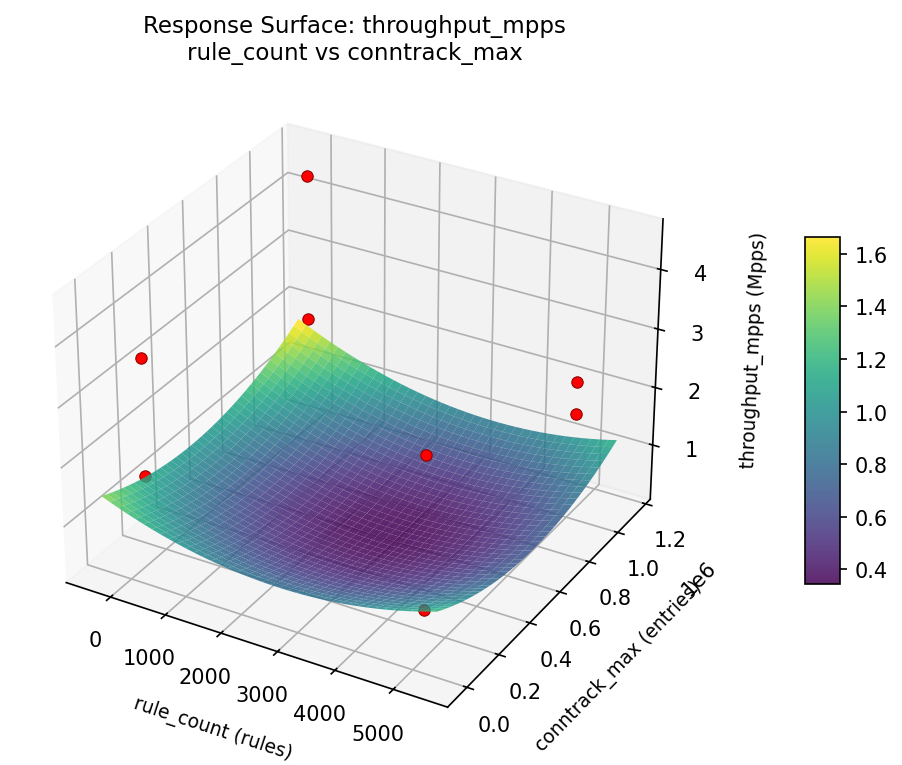

throughput mpps rule count vs conntrack max

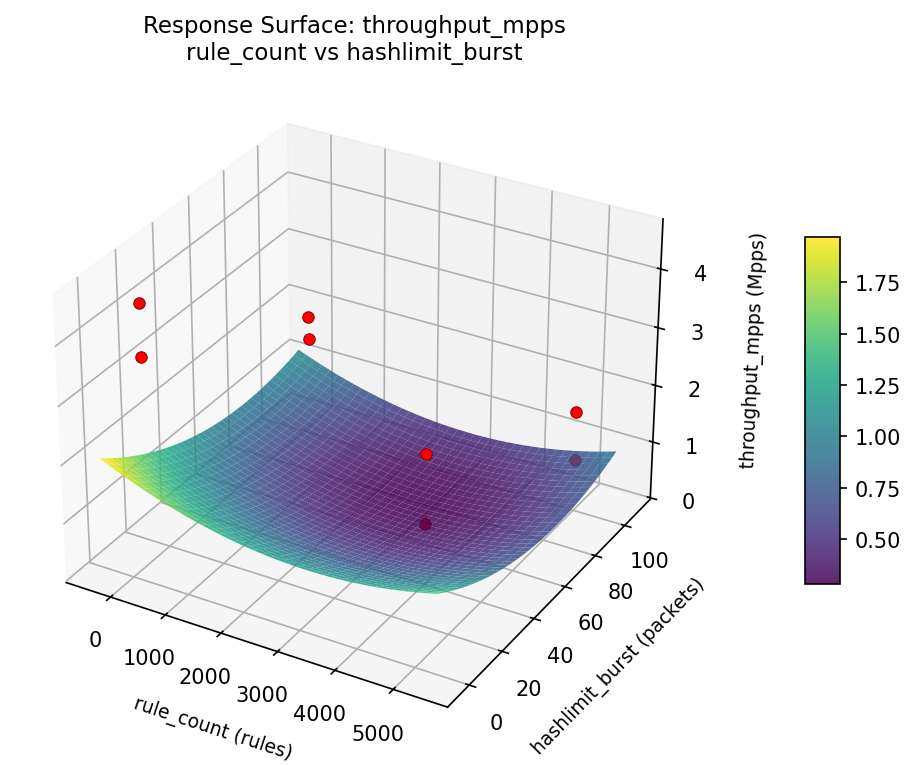

throughput mpps rule count vs hashlimit burst
Multi-Objective Optimization
When responses compete, Derringer–Suich desirability finds the best compromise. Each response is scaled to a 0–1 desirability, then combined via a weighted geometric mean.
Overall Desirability
D = 0.9956
Per-Response Desirability
| Response | Weight | Desirability | Predicted | Dir |
|---|---|---|---|---|
throughput_mpps |
1.5 |
0.9926
|
4.68 0.9926 4.68 Mpps | ↑ |
latency_us |
1.0 |
1.0000
|
-5.06 1.0000 -5.06 us | ↓ |
Recommended Settings
| Factor | Value |
|---|---|
rule_count | 4788 rules |
conntrack_max | 1.107e+05 entries |
rule_ordering | frequency |
hashlimit_burst | 92.27 packets |
nf_tables | nftables |
batch_verdict | on |
Source: from RSM model prediction
Trade-off Summary
Sacrifice = how much worse than single-objective best.
| Response | Predicted | Best Observed | Sacrifice |
|---|---|---|---|
latency_us | -5.06 | 0.40 | -5.46 |
Top 3 Runs by Desirability
| Run | D | Factor Settings |
|---|---|---|
| #3 | 0.8021 | rule_count=5000, conntrack_max=65536, rule_ordering=frequency, hashlimit_burst=100, nf_tables=nftables, batch_verdict=off |
| #7 | 0.7012 | rule_count=5000, conntrack_max=1048576, rule_ordering=sequential, hashlimit_burst=100, nf_tables=nftables, batch_verdict=on |
Model Quality
| Response | R² | Type |
|---|---|---|
latency_us | 0.8477 | linear |
Full Multi-Objective Output
doe optimize --multi
============================================================
MULTI-OBJECTIVE OPTIMIZATION
Method: Derringer-Suich Desirability Function
============================================================
Overall desirability: D = 0.9956
Response Weight Desirability Predicted Direction
---------------------------------------------------------------------
throughput_mpps 1.5 0.9926 4.68 Mpps ↑
latency_us 1.0 1.0000 -5.06 us ↓
Recommended settings:
rule_count = 4788 rules
conntrack_max = 1.107e+05 entries
rule_ordering = frequency
hashlimit_burst = 92.27 packets
nf_tables = nftables
batch_verdict = on
(from RSM model prediction)
Trade-off summary:
throughput_mpps: 4.68 (best observed: 4.53, sacrifice: -0.15)
latency_us: -5.06 (best observed: 0.40, sacrifice: -5.46)
Model quality:
throughput_mpps: R² = 0.7718 (linear)
latency_us: R² = 0.8477 (linear)
Top 3 observed runs by overall desirability:
1. Run #5 (D=0.9545): rule_count=5000, conntrack_max=65536, rule_ordering=frequency, hashlimit_burst=5, nf_tables=iptables, batch_verdict=on
2. Run #3 (D=0.8021): rule_count=5000, conntrack_max=65536, rule_ordering=frequency, hashlimit_burst=100, nf_tables=nftables, batch_verdict=off
3. Run #7 (D=0.7012): rule_count=5000, conntrack_max=1048576, rule_ordering=sequential, hashlimit_burst=100, nf_tables=nftables, batch_verdict=on
Full Analysis Output
doe analyze
=== Main Effects: throughput_mpps ===
Factor Effect Std Error % Contribution
--------------------------------------------------------------
rule_count 1.7825 0.4322 42.1%
nf_tables -0.8925 0.4322 21.1%
batch_verdict 0.6075 0.4322 14.3%
conntrack_max -0.4825 0.4322 11.4%
rule_ordering -0.2475 0.4322 5.8%
hashlimit_burst 0.2225 0.4322 5.3%
=== ANOVA Table: throughput_mpps ===
Source DF SS MS F p-value
-----------------------------------------------------------------------------
rule_count 1 6.3546 6.3546 7.039 0.0328
conntrack_max 1 0.4656 0.4656 0.516 0.4959
rule_ordering 1 0.1225 0.1225 0.136 0.7235
hashlimit_burst 1 0.0990 0.0990 0.110 0.7502
nf_tables 1 1.5931 1.5931 1.765 0.2257
batch_verdict 1 0.7381 0.7381 0.818 0.3959
rule_count*conntrack_max 1 0.1225 0.1225 0.136 0.7235
rule_count*rule_ordering 1 0.4656 0.4656 0.516 0.4959
rule_count*hashlimit_burst 1 1.5931 1.5931 1.765 0.2257
rule_count*nf_tables 1 0.0990 0.0990 0.110 0.7502
rule_count*batch_verdict 1 1.0878 1.0878 1.205 0.3087
conntrack_max*rule_ordering 1 6.3546 6.3546 7.039 0.0328
conntrack_max*hashlimit_burst 1 0.7381 0.7381 0.818 0.3959
conntrack_max*nf_tables 1 1.0878 1.0878 1.205 0.3087
conntrack_max*batch_verdict 1 0.0990 0.0990 0.110 0.7502
rule_ordering*hashlimit_burst 1 1.0878 1.0878 1.205 0.3087
rule_ordering*nf_tables 1 0.7381 0.7381 0.818 0.3959
rule_ordering*batch_verdict 1 1.5931 1.5931 1.765 0.2257
hashlimit_burst*nf_tables 1 6.3546 6.3546 7.039 0.0328
hashlimit_burst*batch_verdict 1 0.4656 0.4656 0.516 0.4959
nf_tables*batch_verdict 1 0.1225 0.1225 0.136 0.7235
Error (Lenth PSE) 7 6.3196 0.9028
Total 7 10.4608 1.4944
Note: Error estimated using Lenth's pseudo-standard-error (unreplicated design)
=== Interaction Effects: throughput_mpps ===
Factor A Factor B Interaction % Contribution
------------------------------------------------------------------------
conntrack_max rule_ordering -1.7825 16.7%
hashlimit_burst nf_tables -1.7825 16.7%
rule_count hashlimit_burst 0.8925 8.4%
rule_ordering batch_verdict -0.8925 8.4%
rule_count batch_verdict 0.7375 6.9%
conntrack_max nf_tables -0.7375 6.9%
rule_ordering hashlimit_burst -0.7375 6.9%
conntrack_max hashlimit_burst 0.6075 5.7%
rule_ordering nf_tables 0.6075 5.7%
rule_count rule_ordering 0.4825 4.5%
hashlimit_burst batch_verdict -0.4825 4.5%
rule_count conntrack_max 0.2475 2.3%
nf_tables batch_verdict -0.2475 2.3%
rule_count nf_tables -0.2225 2.1%
conntrack_max batch_verdict 0.2225 2.1%
=== Summary Statistics: throughput_mpps ===
rule_count:
Level N Mean Std Min Max
------------------------------------------------------------
100 4 1.6350 0.5770 0.8700 2.2700
5000 4 3.4175 1.0178 2.0700 4.5300
conntrack_max:
Level N Mean Std Min Max
------------------------------------------------------------
1048576 4 2.7675 0.9181 1.7300 3.6500
65536 4 2.2850 1.5776 0.8700 4.5300
rule_ordering:
Level N Mean Std Min Max
------------------------------------------------------------
frequency 4 2.6500 1.2730 1.7300 4.5300
sequential 4 2.4025 1.3511 0.8700 3.6500
hashlimit_burst:
Level N Mean Std Min Max
------------------------------------------------------------
100 4 2.4150 0.8603 1.6700 3.6500
5 4 2.6375 1.6474 0.8700 4.5300
nf_tables:
Level N Mean Std Min Max
------------------------------------------------------------
iptables 4 2.9725 1.2670 1.6700 4.5300
nftables 4 2.0800 1.1621 0.8700 3.6500
batch_verdict:
Level N Mean Std Min Max
------------------------------------------------------------
off 4 2.2225 0.8175 1.6700 3.4200
on 4 2.8300 1.6039 0.8700 4.5300
=== Main Effects: latency_us ===
Factor Effect Std Error % Contribution
--------------------------------------------------------------
rule_count -18.2250 4.0069 55.1%
nf_tables 5.4750 4.0069 16.6%
batch_verdict -4.7250 4.0069 14.3%
conntrack_max 4.1250 4.0069 12.5%
hashlimit_burst -0.2750 4.0069 0.8%
rule_ordering -0.2250 4.0069 0.7%
=== ANOVA Table: latency_us ===
Source DF SS MS F p-value
-----------------------------------------------------------------------------
rule_count 1 664.3012 664.3012 11.257 0.0122
conntrack_max 1 34.0313 34.0313 0.577 0.4724
rule_ordering 1 0.1012 0.1012 0.002 0.9681
hashlimit_burst 1 0.1513 0.1513 0.003 0.9610
nf_tables 1 59.9512 59.9512 1.016 0.3471
batch_verdict 1 44.6512 44.6512 0.757 0.4132
rule_count*conntrack_max 1 0.1013 0.1013 0.002 0.9681
rule_count*rule_ordering 1 34.0313 34.0313 0.577 0.4724
rule_count*hashlimit_burst 1 59.9513 59.9513 1.016 0.3471
rule_count*nf_tables 1 0.1513 0.1513 0.003 0.9610
rule_count*batch_verdict 1 95.9113 95.9113 1.625 0.2430
conntrack_max*rule_ordering 1 664.3012 664.3012 11.257 0.0122
conntrack_max*hashlimit_burst 1 44.6512 44.6512 0.757 0.4132
conntrack_max*nf_tables 1 95.9113 95.9113 1.625 0.2430
conntrack_max*batch_verdict 1 0.1513 0.1513 0.003 0.9610
rule_ordering*hashlimit_burst 1 95.9113 95.9113 1.625 0.2430
rule_ordering*nf_tables 1 44.6513 44.6513 0.757 0.4132
rule_ordering*batch_verdict 1 59.9513 59.9513 1.016 0.3471
hashlimit_burst*nf_tables 1 664.3012 664.3012 11.257 0.0122
hashlimit_burst*batch_verdict 1 34.0313 34.0313 0.577 0.4724
nf_tables*batch_verdict 1 0.1013 0.1013 0.002 0.9681
Error (Lenth PSE) 7 413.0831 59.0119
Total 7 899.0987 128.4427
Note: Error estimated using Lenth's pseudo-standard-error (unreplicated design)
=== Interaction Effects: latency_us ===
Factor A Factor B Interaction % Contribution
------------------------------------------------------------------------
conntrack_max rule_ordering 18.2250 21.0%
hashlimit_burst nf_tables 18.2250 21.0%
rule_count batch_verdict -6.9250 8.0%
conntrack_max nf_tables 6.9250 8.0%
rule_ordering hashlimit_burst 6.9250 8.0%
rule_count hashlimit_burst -5.4750 6.3%
rule_ordering batch_verdict 5.4750 6.3%
conntrack_max hashlimit_burst -4.7250 5.4%
rule_ordering nf_tables -4.7250 5.4%
rule_count rule_ordering -4.1250 4.7%
hashlimit_burst batch_verdict 4.1250 4.7%
rule_count nf_tables 0.2750 0.3%
conntrack_max batch_verdict -0.2750 0.3%
rule_count conntrack_max 0.2250 0.3%
nf_tables batch_verdict -0.2250 0.3%
=== Summary Statistics: latency_us ===
rule_count:
Level N Mean Std Min Max
------------------------------------------------------------
100 4 25.1500 3.9619 21.7000 30.8000
5000 4 6.9250 7.9101 0.4000 17.8000
conntrack_max:
Level N Mean Std Min Max
------------------------------------------------------------
1048576 4 13.9750 10.9895 1.8000 24.7000
65536 4 18.1000 12.9455 0.4000 30.8000
rule_ordering:
Level N Mean Std Min Max
------------------------------------------------------------
frequency 4 16.1500 10.8734 0.4000 24.7000
sequential 4 15.9250 13.4698 1.8000 30.8000
hashlimit_burst:
Level N Mean Std Min Max
------------------------------------------------------------
100 4 16.1750 9.8659 1.8000 23.4000
5 4 15.9000 14.2237 0.4000 30.8000
nf_tables:
Level N Mean Std Min Max
------------------------------------------------------------
iptables 4 13.3000 11.1107 0.4000 23.4000
nftables 4 18.7750 12.5008 1.8000 30.8000
batch_verdict:
Level N Mean Std Min Max
------------------------------------------------------------
off 4 18.4000 7.7361 7.7000 24.7000
on 4 13.6750 14.9990 0.4000 30.8000
Optimization Recommendations
doe optimize
=== Optimization: throughput_mpps ===
Direction: maximize
Best observed run: #5
rule_count = 100
conntrack_max = 1048576
rule_ordering = frequency
hashlimit_burst = 100
nf_tables = iptables
batch_verdict = on
Value: 4.53
RSM Model (linear, R² = 0.7718, Adj R² = -0.5974):
Coefficients:
intercept +2.5263
rule_count -0.3038
conntrack_max -0.2413
rule_ordering -0.1113
hashlimit_burst +0.7912
nf_tables -0.4688
batch_verdict +0.0237
Predicted optimum (from linear model, at observed points):
rule_count = 100
conntrack_max = 65536
rule_ordering = sequential
hashlimit_burst = 100
nf_tables = iptables
batch_verdict = off
Predicted value: 4.1963
Surface optimum (via L-BFGS-B, linear model):
rule_count = 100
conntrack_max = 65536
rule_ordering = frequency
hashlimit_burst = 100
nf_tables = iptables
batch_verdict = on
Predicted value: 4.4662
Model quality: Good fit — general trends are captured, some noise remains.
Factor importance:
1. hashlimit_burst (effect: -1.6, contribution: 40.8%)
2. nf_tables (effect: -0.9, contribution: 24.2%)
3. rule_count (effect: -0.6, contribution: 15.7%)
4. conntrack_max (effect: 0.5, contribution: 12.4%)
5. rule_ordering (effect: -0.2, contribution: 5.7%)
6. batch_verdict (effect: 0.0, contribution: 1.2%)
=== Optimization: latency_us ===
Direction: minimize
Best observed run: #5
rule_count = 100
conntrack_max = 1048576
rule_ordering = frequency
hashlimit_burst = 100
nf_tables = iptables
batch_verdict = on
Value: 0.4
RSM Model (linear, R² = 0.8477, Adj R² = -0.0662):
Coefficients:
intercept +16.0375
rule_count +2.3625
conntrack_max +2.0625
rule_ordering +0.1375
hashlimit_burst -7.7125
nf_tables +4.8625
batch_verdict +1.5125
Predicted optimum (from linear model, at observed points):
rule_count = 100
conntrack_max = 1048576
rule_ordering = frequency
hashlimit_burst = 5
nf_tables = nftables
batch_verdict = off
Predicted value: 26.6625
Surface optimum (via L-BFGS-B, linear model):
rule_count = 100
conntrack_max = 65536
rule_ordering = frequency
hashlimit_burst = 100
nf_tables = iptables
batch_verdict = off
Predicted value: -2.6125
Model quality: Good fit — general trends are captured, some noise remains.
Factor importance:
1. hashlimit_burst (effect: 15.4, contribution: 41.4%)
2. nf_tables (effect: 9.7, contribution: 26.1%)
3. rule_count (effect: 4.7, contribution: 12.7%)
4. conntrack_max (effect: -4.1, contribution: 11.1%)
5. batch_verdict (effect: 3.0, contribution: 8.1%)
6. rule_ordering (effect: 0.3, contribution: 0.7%)
