Summary
This experiment investigates studio portrait lighting. Central composite design to maximize skin tone accuracy and minimize harsh shadows by tuning key light power, fill ratio, and modifier size.
The design varies 3 factors: key power ws (Ws), ranging from 100 to 500, fill ratio (ratio), ranging from 2 to 8, and modifier cm (cm), ranging from 60 to 150. The goal is to optimize 2 responses: skin accuracy (pts) (maximize) and shadow harshness (pts) (minimize). Fixed conditions held constant across all runs include background = grey, distance m = 2.
A Central Composite Design (CCD) was selected to fit a full quadratic response surface model, including curvature and interaction effects. With 3 factors this produces 22 runs including center points and axial (star) points that extend beyond the factorial range.
Quadratic response surface models were fitted to capture potential curvature and factor interactions. The RSM contour plots below visualize how pairs of factors jointly affect each response.
Key Findings
For skin accuracy, the most influential factors were fill ratio (41.0%), key power ws (37.1%), modifier cm (22.0%). The best observed value was 8.2 (at key power ws = 100, fill ratio = 8, modifier cm = 60).
For shadow harshness, the most influential factors were fill ratio (66.9%), key power ws (20.8%), modifier cm (12.3%). The best observed value was 2.4 (at key power ws = 300, fill ratio = 5, modifier cm = 105).
Recommended Next Steps
- Run confirmation experiments at the predicted optimal settings to validate the model.
- Consider whether any fixed factors should be varied in a future study.
Experimental Setup
Factors
| Factor | Low | High | Unit |
|---|---|---|---|
key_power_ws | 100 | 500 | Ws |
fill_ratio | 2 | 8 | ratio |
modifier_cm | 60 | 150 | cm |
Fixed: background = grey, distance_m = 2
Responses
| Response | Direction | Unit |
|---|---|---|
skin_accuracy | ↑ maximize | pts |
shadow_harshness | ↓ minimize | pts |
Configuration
use_cases/148_studio_lighting/config.json
{
"metadata": {
"name": "Studio Portrait Lighting",
"description": "Central composite design to maximize skin tone accuracy and minimize harsh shadows by tuning key light power, fill ratio, and modifier size"
},
"factors": [
{
"name": "key_power_ws",
"levels": [
"100",
"500"
],
"type": "continuous",
"unit": "Ws"
},
{
"name": "fill_ratio",
"levels": [
"2",
"8"
],
"type": "continuous",
"unit": "ratio"
},
{
"name": "modifier_cm",
"levels": [
"60",
"150"
],
"type": "continuous",
"unit": "cm"
}
],
"fixed_factors": {
"background": "grey",
"distance_m": "2"
},
"responses": [
{
"name": "skin_accuracy",
"optimize": "maximize",
"unit": "pts"
},
{
"name": "shadow_harshness",
"optimize": "minimize",
"unit": "pts"
}
],
"settings": {
"operation": "central_composite",
"test_script": "use_cases/148_studio_lighting/sim.sh"
}
}
Experimental Matrix
The Central Composite Design produces 22 runs. Each row is one experiment with specific factor settings.
| Run | key_power_ws | fill_ratio | modifier_cm |
|---|---|---|---|
| 1 | 300 | 5 | 105 |
| 2 | 500 | 2 | 150 |
| 3 | 100 | 8 | 60 |
| 4 | 300 | 10.4772 | 105 |
| 5 | 300 | 5 | 105 |
| 6 | -65.1484 | 5 | 105 |
| 7 | 300 | 5 | 22.8416 |
| 8 | 300 | 5 | 105 |
| 9 | 500 | 8 | 60 |
| 10 | 665.148 | 5 | 105 |
| 11 | 300 | 5 | 105 |
| 12 | 300 | -0.477226 | 105 |
| 13 | 300 | 5 | 105 |
| 14 | 100 | 2 | 150 |
| 15 | 300 | 5 | 105 |
| 16 | 500 | 2 | 60 |
| 17 | 300 | 5 | 187.158 |
| 18 | 500 | 8 | 150 |
| 19 | 300 | 5 | 105 |
| 20 | 100 | 2 | 60 |
| 21 | 100 | 8 | 150 |
| 22 | 300 | 5 | 105 |
Step-by-Step Workflow
1
Preview the design
Terminal
$ doe info --config use_cases/148_studio_lighting/config.json
2
Generate the runner script
Terminal
$ doe generate --config use_cases/148_studio_lighting/config.json \
--output use_cases/148_studio_lighting/results/run.sh --seed 42
3
Execute the experiments
Terminal
$ bash use_cases/148_studio_lighting/results/run.sh
4
Analyze results
Terminal
$ doe analyze --config use_cases/148_studio_lighting/config.json
5
Get optimization recommendations
Terminal
$ doe optimize --config use_cases/148_studio_lighting/config.json
6
Multi-objective optimization
With 2 competing responses, use --multi to find the best compromise via Derringer–Suich desirability.
Terminal
$ doe optimize --config use_cases/148_studio_lighting/config.json --multi
7
Generate the HTML report
Terminal
$ doe report --config use_cases/148_studio_lighting/config.json \
--output use_cases/148_studio_lighting/results/report.html
Features Exercised
| Feature | Value |
|---|---|
| Design type | central_composite |
| Factor types | continuous (all 3) |
| Arg style | double-dash |
| Responses | 2 (skin_accuracy ↑, shadow_harshness ↓) |
| Total runs | 22 |
Analysis Results
Generated from actual experiment runs using the DOE Helper Tool.
Response: skin_accuracy
Top factors: fill_ratio (41.0%), key_power_ws (37.1%), modifier_cm (22.0%).
ANOVA
| Source | DF | SS | MS | F | p-value |
|---|---|---|---|---|---|
| Source | DF | SS | MS | F | p-value |
| key_power_ws | 4 | 3.2027 | 0.8007 | 0.418 | 0.7918 |
| fill_ratio | 4 | 6.0886 | 1.5221 | 0.795 | 0.5572 |
| modifier_cm | 4 | 4.1752 | 1.0438 | 0.545 | 0.7072 |
| Lack | of | Fit | 2 | 0.2275 | 0.1137 |
| Pure | Error | 7 | 13.3987 | ||
| Error | 9 | 13.6262 | 1.9141 | ||
| Total | 21 | 27.0927 | 1.2901 |
Pareto Chart
Main Effects Plot
Normal Probability Plot of Effects
Half-Normal Plot of Effects

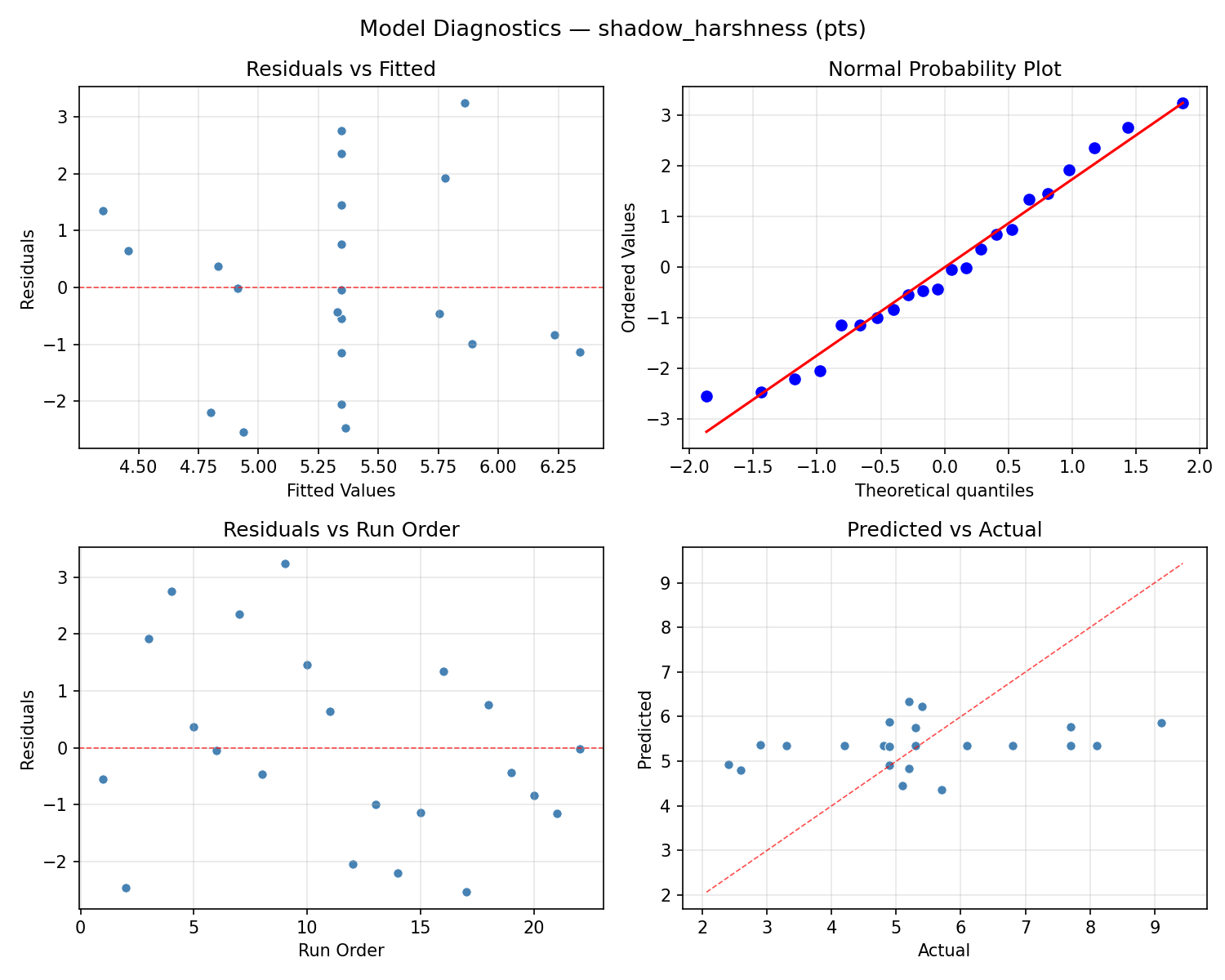

Model Diagnostics
Response: shadow_harshness
Top factors: fill_ratio (66.9%), key_power_ws (20.8%), modifier_cm (12.3%).
ANOVA
| Source | DF | SS | MS | F | p-value |
|---|---|---|---|---|---|
| Source | DF | SS | MS | F | p-value |
| key_power_ws | 4 | 6.0145 | 1.5036 | 0.423 | 0.7885 |
| fill_ratio | 4 | 17.8404 | 4.4601 | 1.255 | 0.3552 |
| modifier_cm | 4 | 2.7879 | 0.6970 | 0.196 | 0.9342 |
| Lack | of | Fit | 2 | 12.7567 | 6.3784 |
| Pure | Error | 7 | 24.8750 | ||
| Error | 9 | 37.6317 | 3.5536 | ||
| Total | 21 | 64.2745 | 3.0607 |

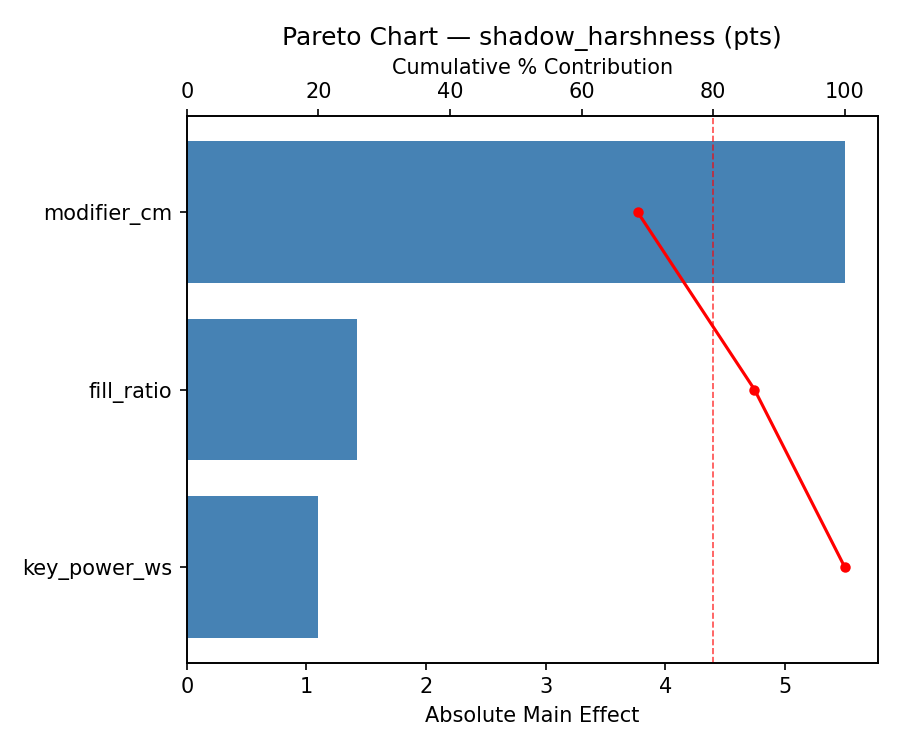

Pareto Chart

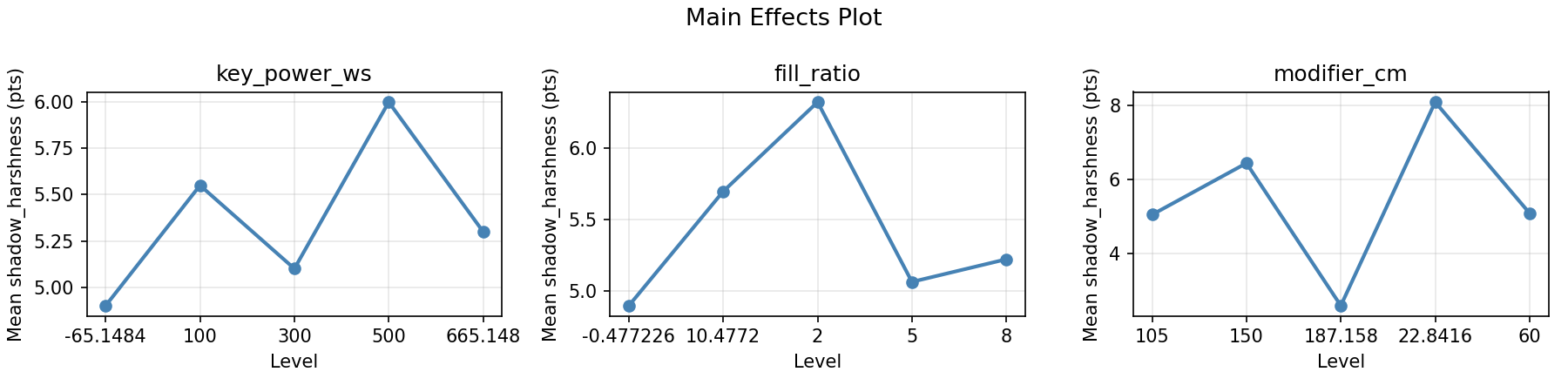

Main Effects Plot
Normal Probability Plot of Effects

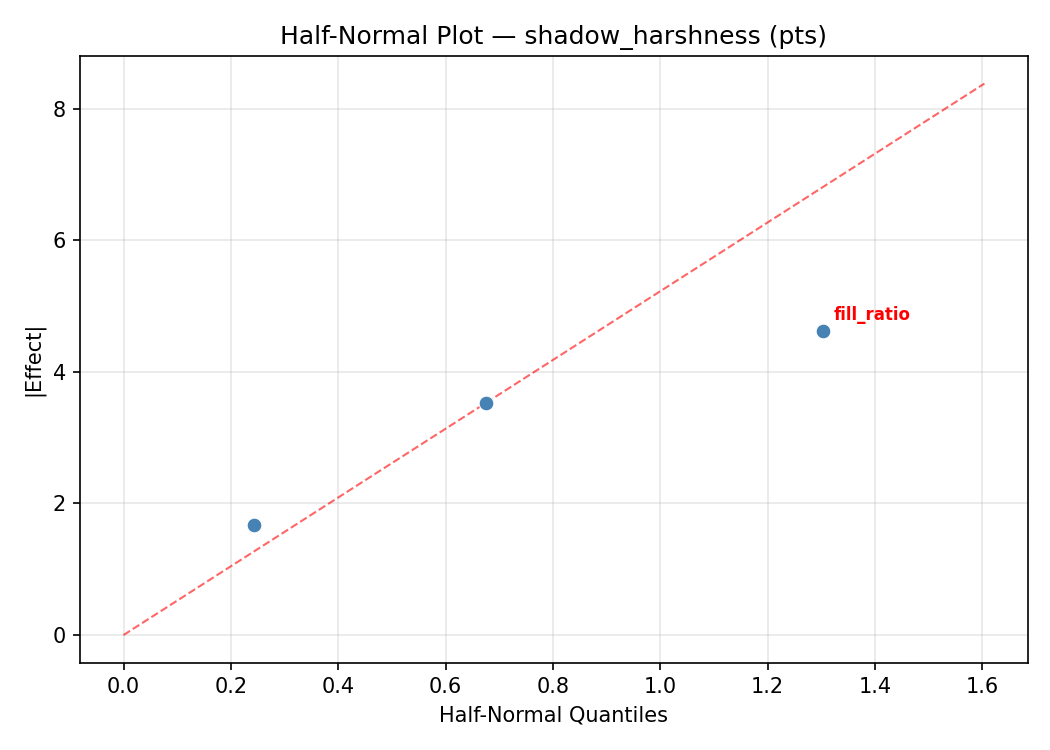

Half-Normal Plot of Effects
Model Diagnostics
Response Surface Plots
3D surfaces fitted with quadratic RSM. Red dots are observed data points.

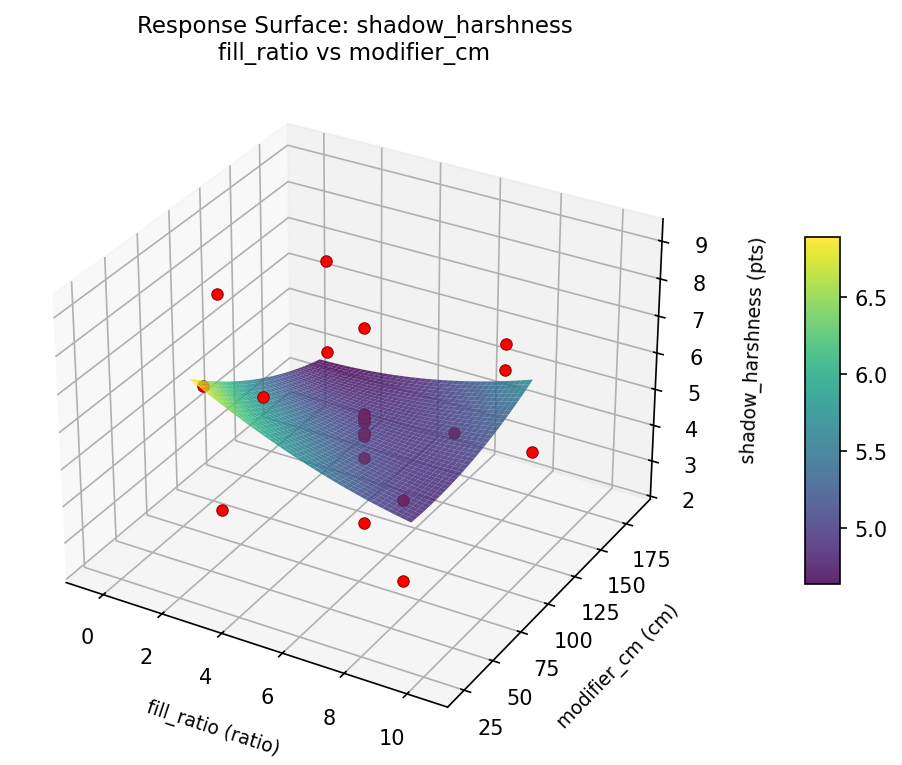

shadow harshness fill ratio vs modifier cm

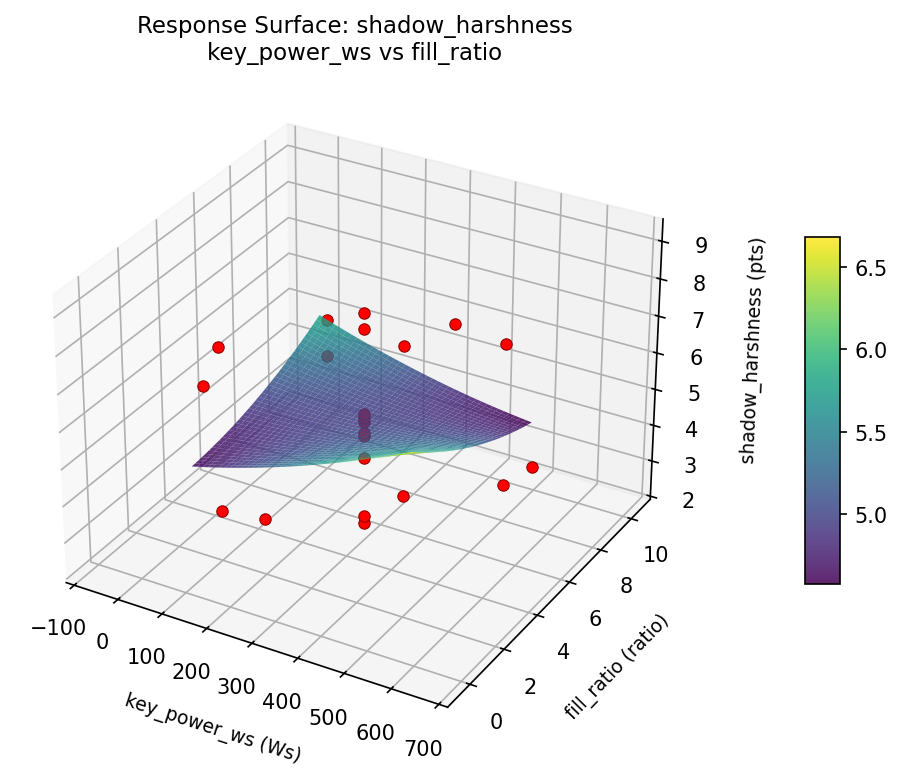

shadow harshness key power ws vs fill ratio

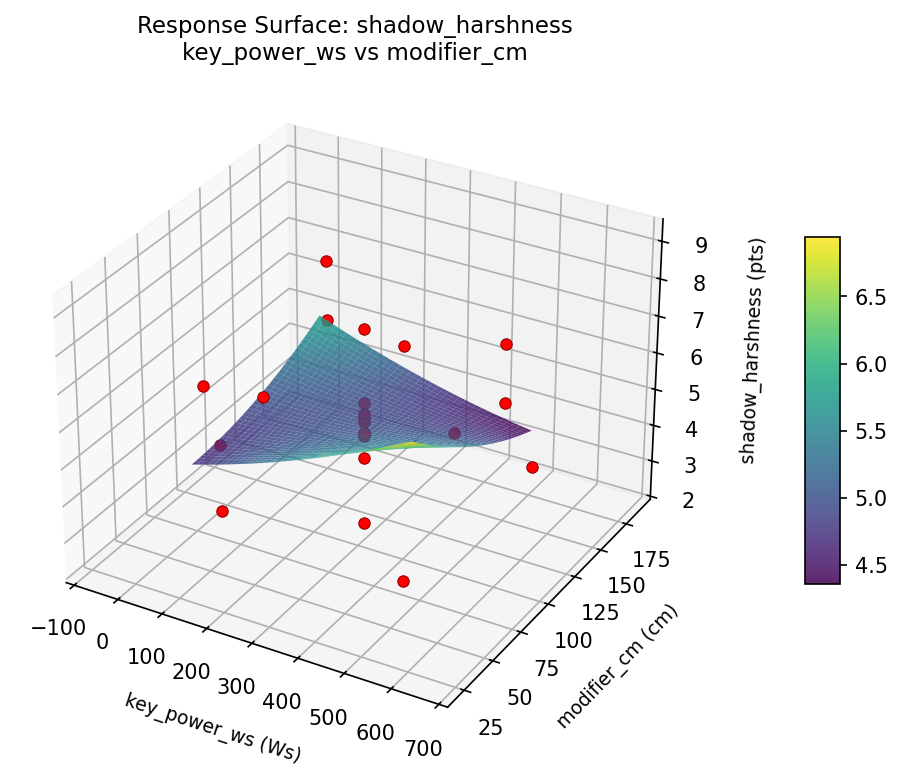

shadow harshness key power ws vs modifier cm

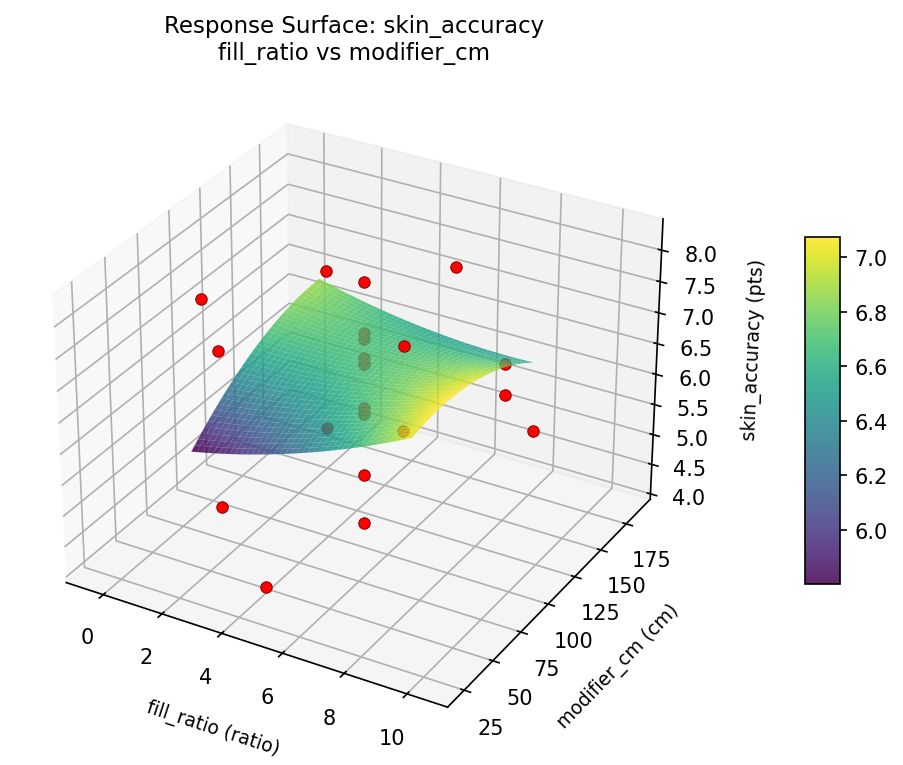

skin accuracy fill ratio vs modifier cm

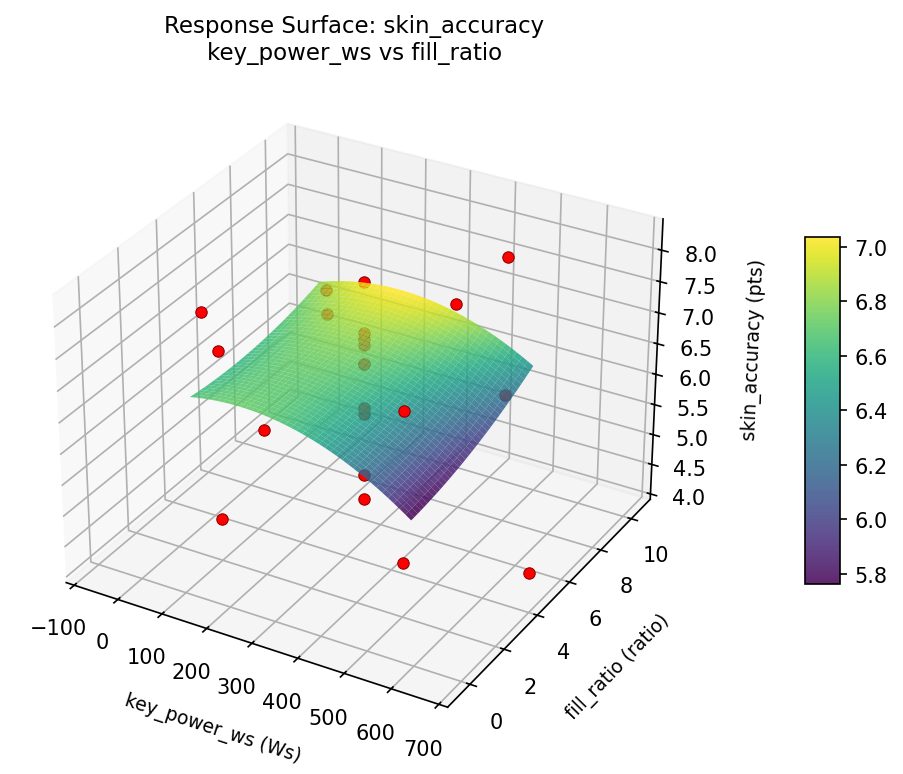

skin accuracy key power ws vs fill ratio

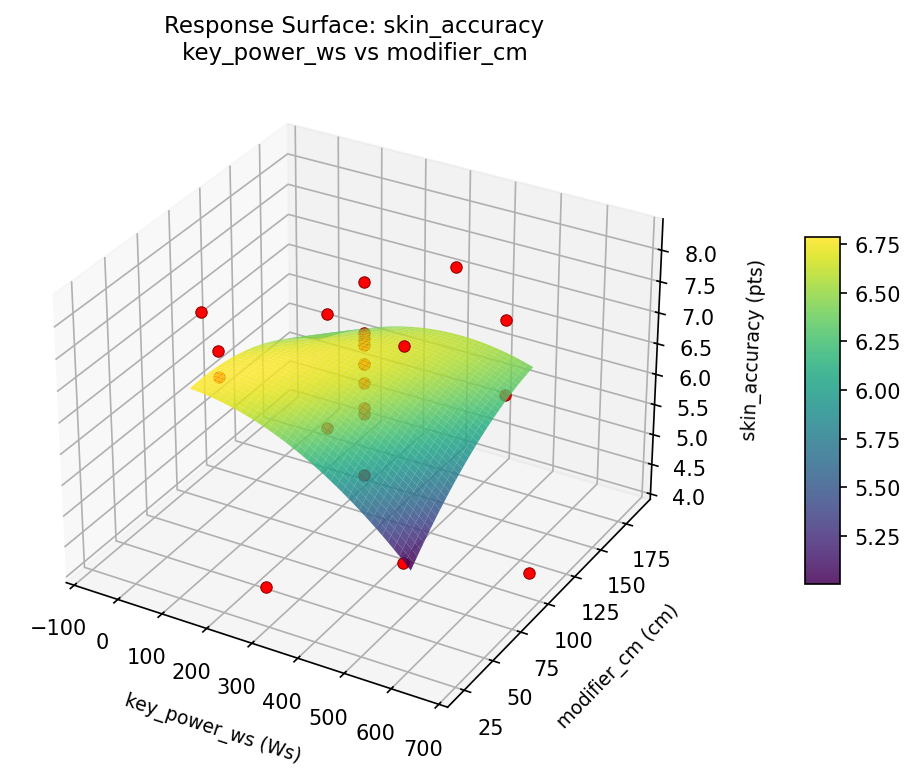

skin accuracy key power ws vs modifier cm
Multi-Objective Optimization
When responses compete, Derringer–Suich desirability finds the best compromise. Each response is scaled to a 0–1 desirability, then combined via a weighted geometric mean.
Overall Desirability
D = 0.9408
Per-Response Desirability
| Response | Weight | Desirability | Predicted | Dir |
|---|---|---|---|---|
skin_accuracy |
1.5 |
0.9318
|
8.10 0.9318 8.10 pts | ↑ |
shadow_harshness |
1.0 |
0.9545
|
2.40 0.9545 2.40 pts | ↓ |
Recommended Settings
| Factor | Value |
|---|---|
key_power_ws | 300 Ws |
fill_ratio | 5 ratio |
modifier_cm | 105 cm |
Source: from observed run #17
Trade-off Summary
Sacrifice = how much worse than single-objective best.
| Response | Predicted | Best Observed | Sacrifice |
|---|---|---|---|
shadow_harshness | 2.40 | 2.40 | +0.00 |
Top 3 Runs by Desirability
| Run | D | Factor Settings |
|---|---|---|
| #2 | 0.9268 | key_power_ws=500, fill_ratio=8, modifier_cm=60 |
| #14 | 0.7864 | key_power_ws=300, fill_ratio=10.4772, modifier_cm=105 |
Model Quality
| Response | R² | Type |
|---|---|---|
shadow_harshness | 0.1504 | linear |
Full Multi-Objective Output
doe optimize --multi
============================================================
MULTI-OBJECTIVE OPTIMIZATION
Method: Derringer-Suich Desirability Function
============================================================
Overall desirability: D = 0.9408
Response Weight Desirability Predicted Direction
---------------------------------------------------------------------
skin_accuracy 1.5 0.9318 8.10 pts ↑
shadow_harshness 1.0 0.9545 2.40 pts ↓
Recommended settings:
key_power_ws = 300 Ws
fill_ratio = 5 ratio
modifier_cm = 105 cm
(from observed run #17)
Trade-off summary:
skin_accuracy: 8.10 (best observed: 8.20, sacrifice: +0.10)
shadow_harshness: 2.40 (best observed: 2.40, sacrifice: +0.00)
Model quality:
skin_accuracy: R² = 0.2833 (linear)
shadow_harshness: R² = 0.1504 (linear)
Top 3 observed runs by overall desirability:
1. Run #17 (D=0.9408): key_power_ws=300, fill_ratio=5, modifier_cm=105
2. Run #2 (D=0.9268): key_power_ws=500, fill_ratio=8, modifier_cm=60
3. Run #14 (D=0.7864): key_power_ws=300, fill_ratio=10.4772, modifier_cm=105
