SIEM Alert Correlation — DOE Use Case

Summary

This experiment investigates siem alert correlation. Box-Behnken design to tune alert correlation window, similarity threshold, and event count for alert reduction.

The design varies 3 factors: correlation window sec (sec), ranging from 30 to 600, similarity threshold (ratio), ranging from 0.3 to 0.9, and min event count (events), ranging from 2 to 10. The goal is to optimize 2 responses: alert reduction pct (%) (maximize) and missed incident rate (%) (minimize). Fixed conditions held constant across all runs include siem platform = elastic_security, log sources = 12.

A Box-Behnken design was chosen because it efficiently fits quadratic models with 3 continuous factors while avoiding extreme corner combinations — requiring only 15 runs instead of the 8 needed for a full factorial at two levels.

Quadratic response surface models were fitted to capture potential curvature and factor interactions. The RSM contour plots below visualize how pairs of factors jointly affect each response.

Key Findings

For alert reduction pct, the most influential factors were similarity threshold (47.0%), correlation window sec (36.1%), min event count (16.9%). The best observed value was 77.0 (at correlation window sec = 315, similarity threshold = 0.3, min event count = 2).

For missed incident rate, the most influential factors were similarity threshold (38.2%), correlation window sec (32.9%), min event count (29.0%). The best observed value was 0.11 (at correlation window sec = 315, similarity threshold = 0.9, min event count = 10).

Recommended Next Steps

Run confirmation experiments at the predicted optimal settings to validate the model.
Consider whether any fixed factors should be varied in a future study.

Experimental Setup

Factors

Factor	Low	High	Unit
`correlation_window_sec`	30	600	sec
`similarity_threshold`	0.3	0.9	ratio
`min_event_count`	2	10	events

Fixed: siem_platform = elastic_security, log_sources = 12

Responses

Response	Direction	Unit
`alert_reduction_pct`	↑ maximize	%
`missed_incident_rate`	↓ minimize	%

Configuration

use_cases/59_siem_alert_correlation/config.json

{
  "metadata": {
    "name": "SIEM Alert Correlation",
    "description": "Box-Behnken design to tune alert correlation window, similarity threshold, and event count for alert reduction"
  },
  "factors": [
    {
      "name": "correlation_window_sec",
      "levels": [
        "30",
        "600"
      ],
      "type": "continuous",
      "unit": "sec"
    },
    {
      "name": "similarity_threshold",
      "levels": [
        "0.3",
        "0.9"
      ],
      "type": "continuous",
      "unit": "ratio"
    },
    {
      "name": "min_event_count",
      "levels": [
        "2",
        "10"
      ],
      "type": "continuous",
      "unit": "events"
    }
  ],
  "fixed_factors": {
    "siem_platform": "elastic_security",
    "log_sources": "12"
  },
  "responses": [
    {
      "name": "alert_reduction_pct",
      "optimize": "maximize",
      "unit": "%"
    },
    {
      "name": "missed_incident_rate",
      "optimize": "minimize",
      "unit": "%"
    }
  ],
  "settings": {
    "operation": "box_behnken",
    "test_script": "use_cases/59_siem_alert_correlation/sim.sh"
  }
}

Experimental Matrix

The Box-Behnken Design produces 15 runs. Each row is one experiment with specific factor settings.

Run	`correlation_window_sec`	`similarity_threshold`	`min_event_count`
1	315	0.3	2
2	315	0.6	6
3	600	0.6	10
4	600	0.6	2
5	315	0.6	6
6	315	0.6	6
7	30	0.6	10
8	600	0.3	6
9	315	0.3	10
10	600	0.9	6
11	30	0.6	2
12	315	0.9	10
13	30	0.3	6
14	30	0.9	6
15	315	0.9	2

Step-by-Step Workflow

1

Preview the design

Terminal

$ doe info --config use_cases/59_siem_alert_correlation/config.json

2

Generate the runner script

Terminal

$ doe generate --config use_cases/59_siem_alert_correlation/config.json \
    --output use_cases/59_siem_alert_correlation/results/run.sh --seed 42

3

Execute the experiments

Terminal

$ bash use_cases/59_siem_alert_correlation/results/run.sh

4

Analyze results

Terminal

$ doe analyze --config use_cases/59_siem_alert_correlation/config.json

5

Get optimization recommendations

Terminal

$ doe optimize --config use_cases/59_siem_alert_correlation/config.json

6

Multi-objective optimization

With 2 competing responses, use --multi to find the best compromise via Derringer–Suich desirability.

Terminal

$ doe optimize --config use_cases/59_siem_alert_correlation/config.json --multi

7

Generate the HTML report

Terminal

$ doe report --config use_cases/59_siem_alert_correlation/config.json \
    --output use_cases/59_siem_alert_correlation/results/report.html

Features Exercised

Feature	Value
Design type	`box_behnken`
Factor types	`continuous` (all 3)
Arg style	`double-dash`
Responses	2 (alert_reduction_pct ↑, missed_incident_rate ↓)
Total runs	15

Analysis Results

Generated from actual experiment runs using the DOE Helper Tool.

Response: alert_reduction_pct

Top factors: similarity_threshold (47.0%), correlation_window_sec (36.1%), min_event_count (16.9%).

ANOVA

Source	DF	SS	MS	F	p-value
Source	DF	SS	MS	F	p-value
correlation_window_sec	2	843.8733	421.9366	7.705	0.0136
similarity_threshold	2	1438.1000	719.0500	13.130	0.0030
min_event_count	2	198.8133	99.4066	1.815	0.2239
Lack	of	Fit	6	1219.9561	203.3260
Pure	Error	2	109.5267
Error	8	1329.4828	54.7633
Total	14	3810.2693	272.1621

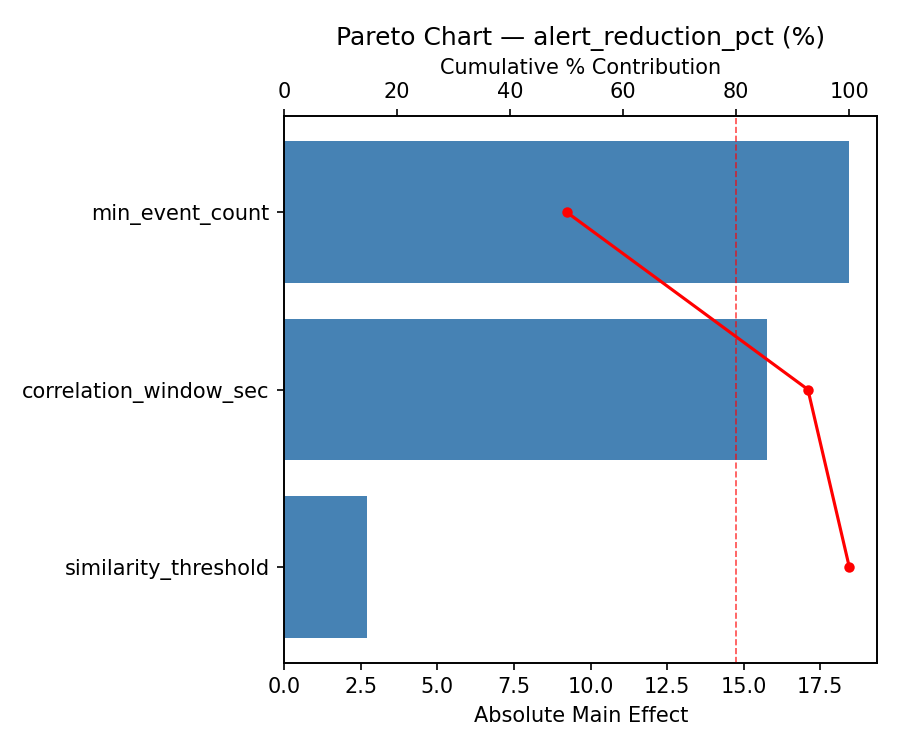

Pareto Chart

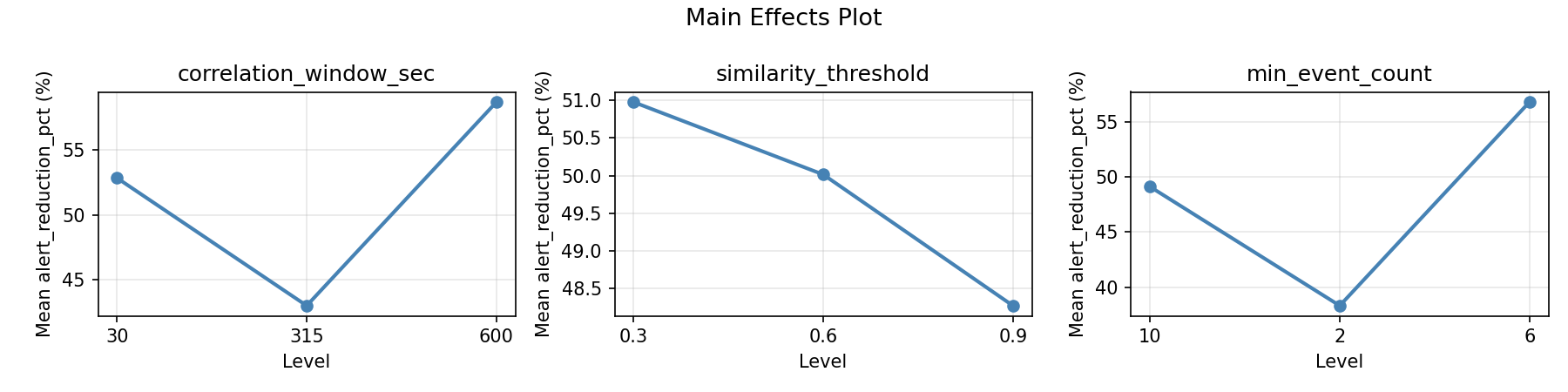

Main Effects Plot

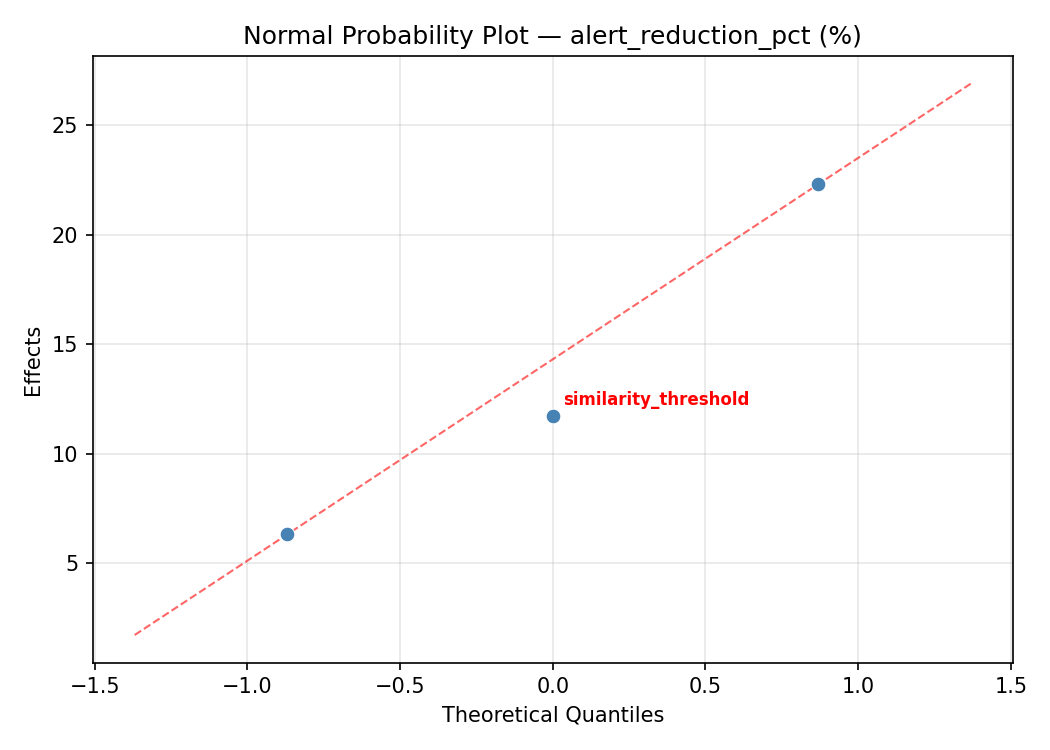

Normal Probability Plot of Effects

Normal probability plot for alert_reduction_pct

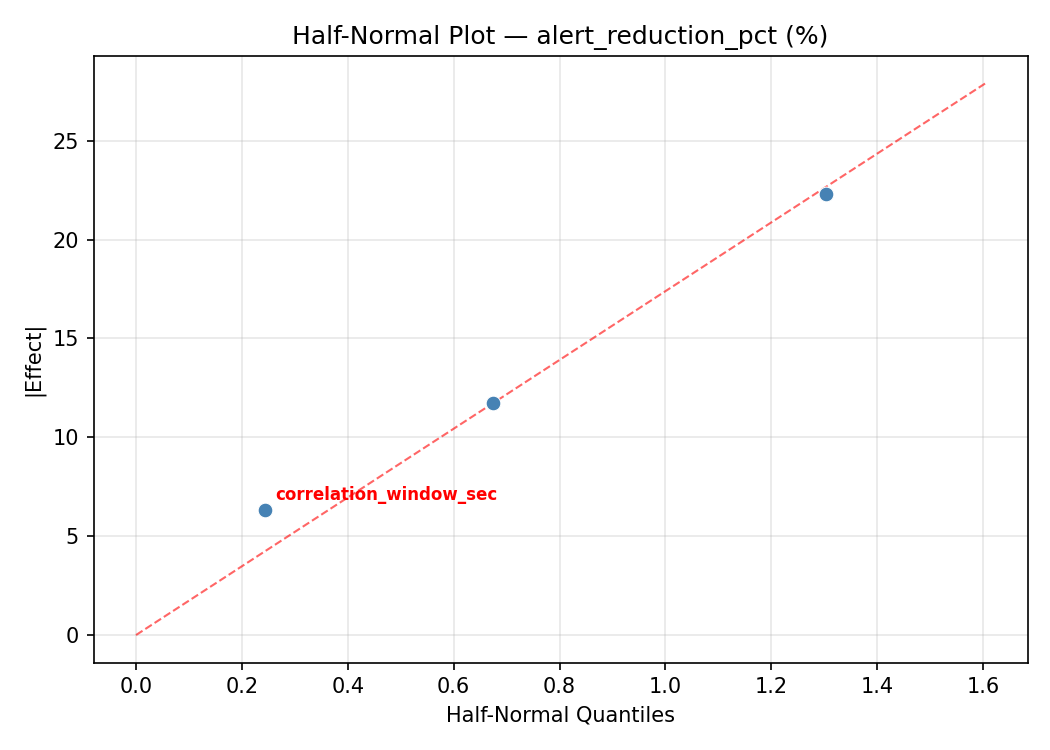

Half-Normal Plot of Effects

Half-normal plot for alert_reduction_pct

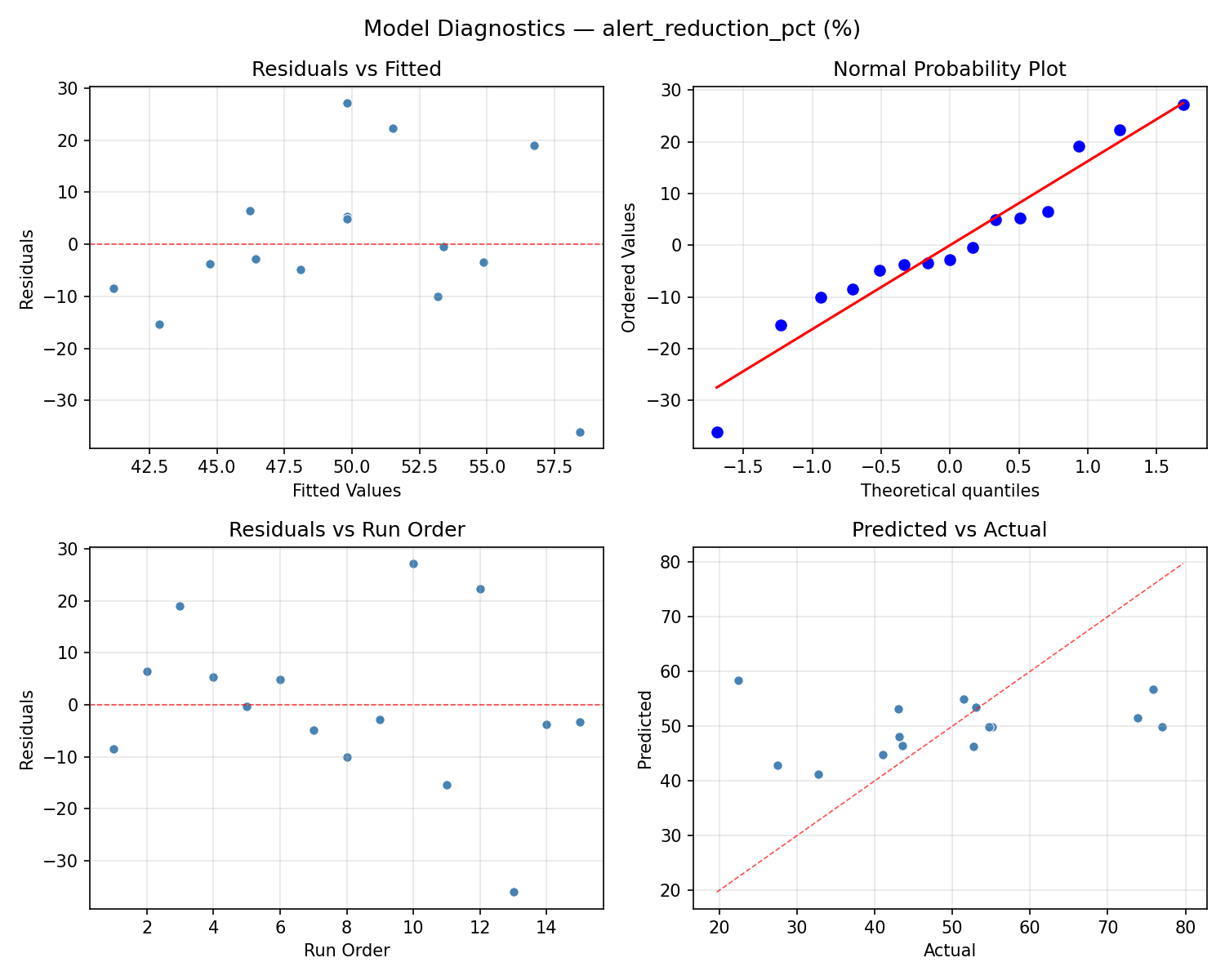

Model Diagnostics

Response: missed_incident_rate

Top factors: similarity_threshold (38.2%), correlation_window_sec (32.9%), min_event_count (29.0%).

ANOVA

Source	DF	SS	MS	F	p-value
Source	DF	SS	MS	F	p-value
correlation_window_sec	2	23.3573	11.6787	34.796	0.0001
similarity_threshold	2	32.7878	16.3939	48.845	0.0000
min_event_count	2	18.1332	9.0666	27.013	0.0003
Lack	of	Fit	6	113.6247	18.9375
Pure	Error	2	0.6713
Error	8	114.2960	0.3356
Total	14	188.5743	13.4696

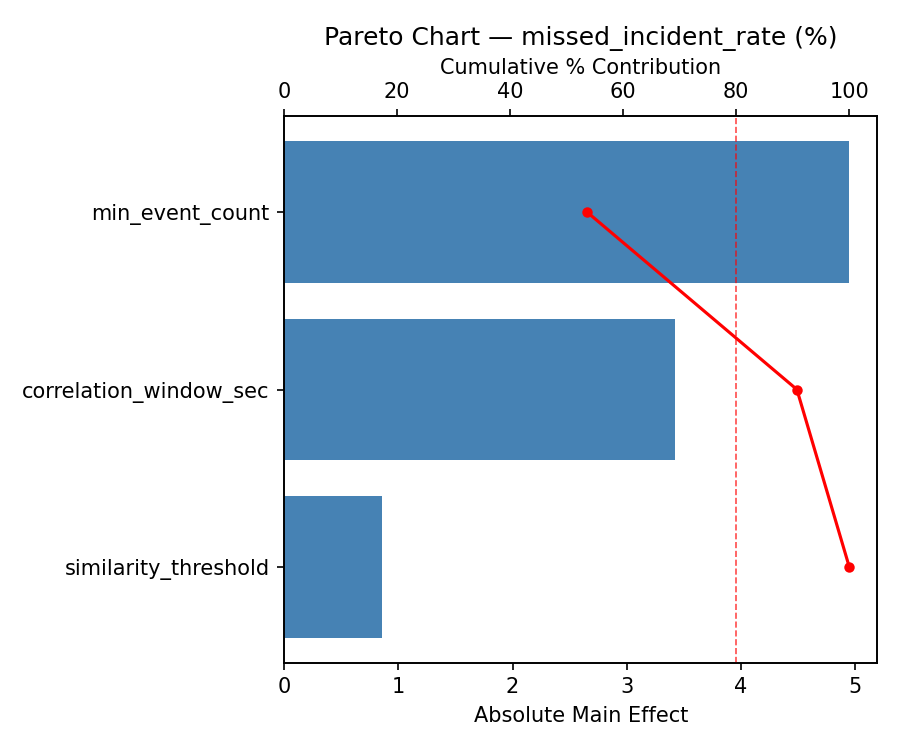

Pareto Chart

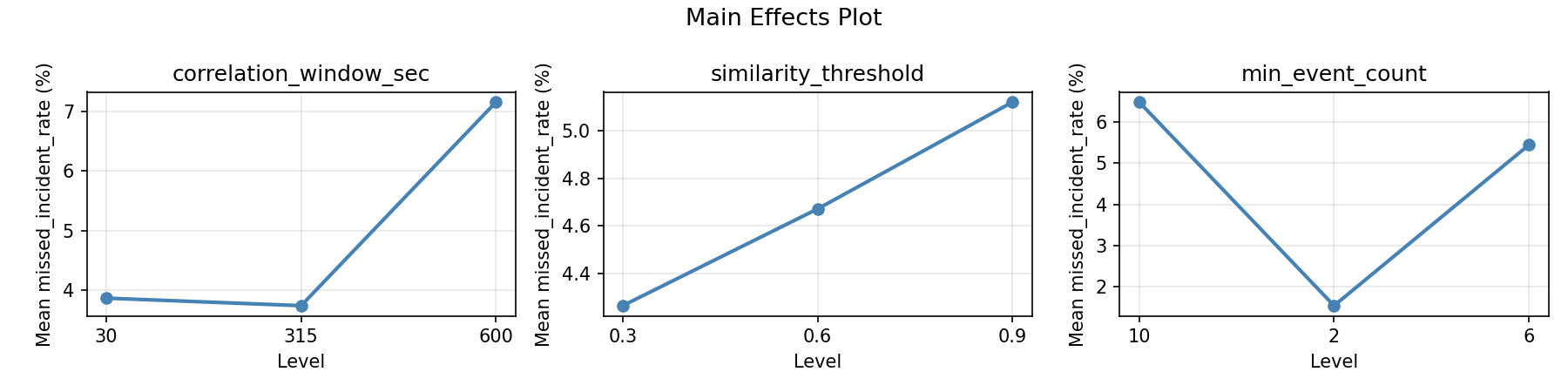

Main Effects Plot

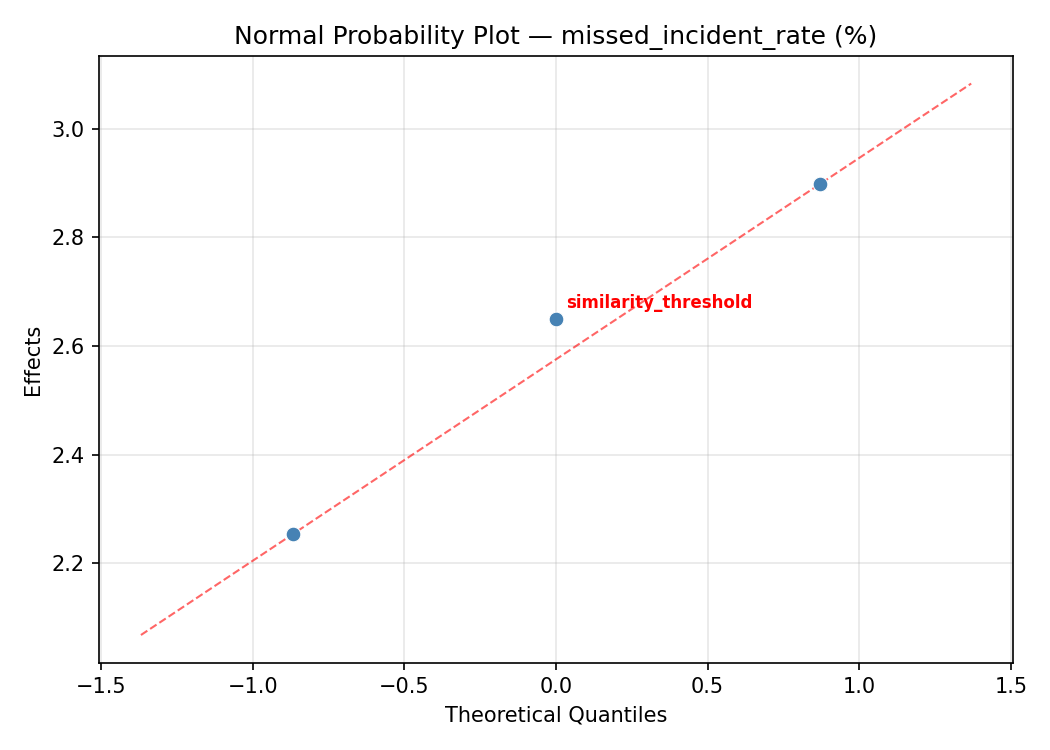

Normal Probability Plot of Effects

Normal probability plot for missed_incident_rate

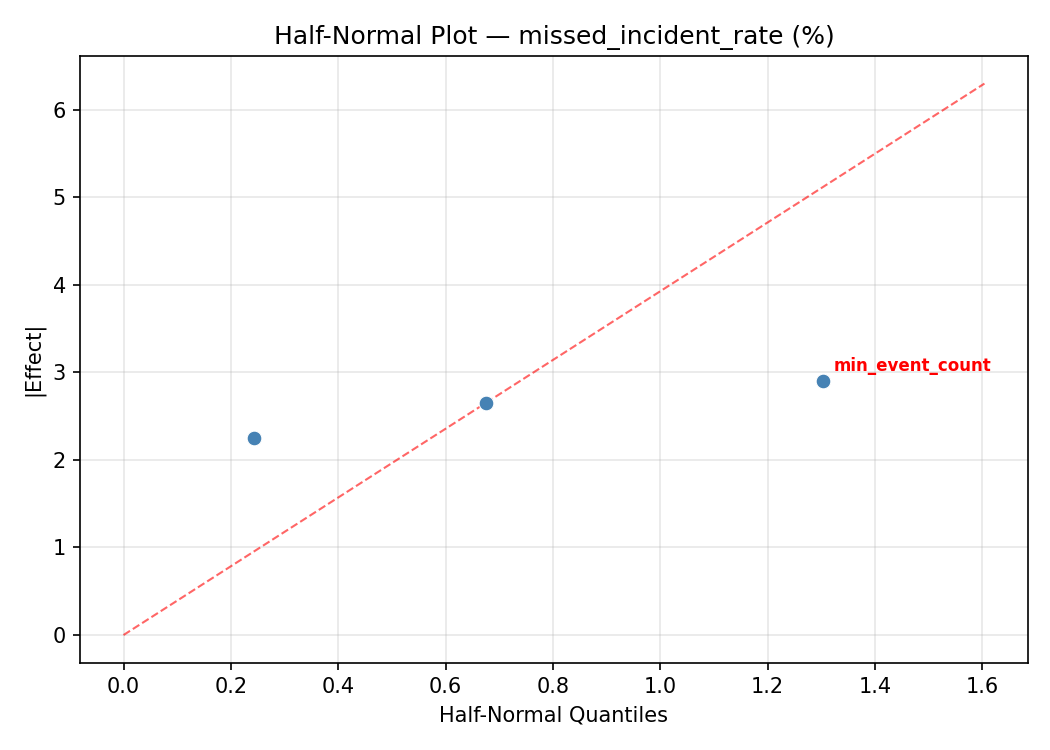

Half-Normal Plot of Effects

Half-normal plot for missed_incident_rate

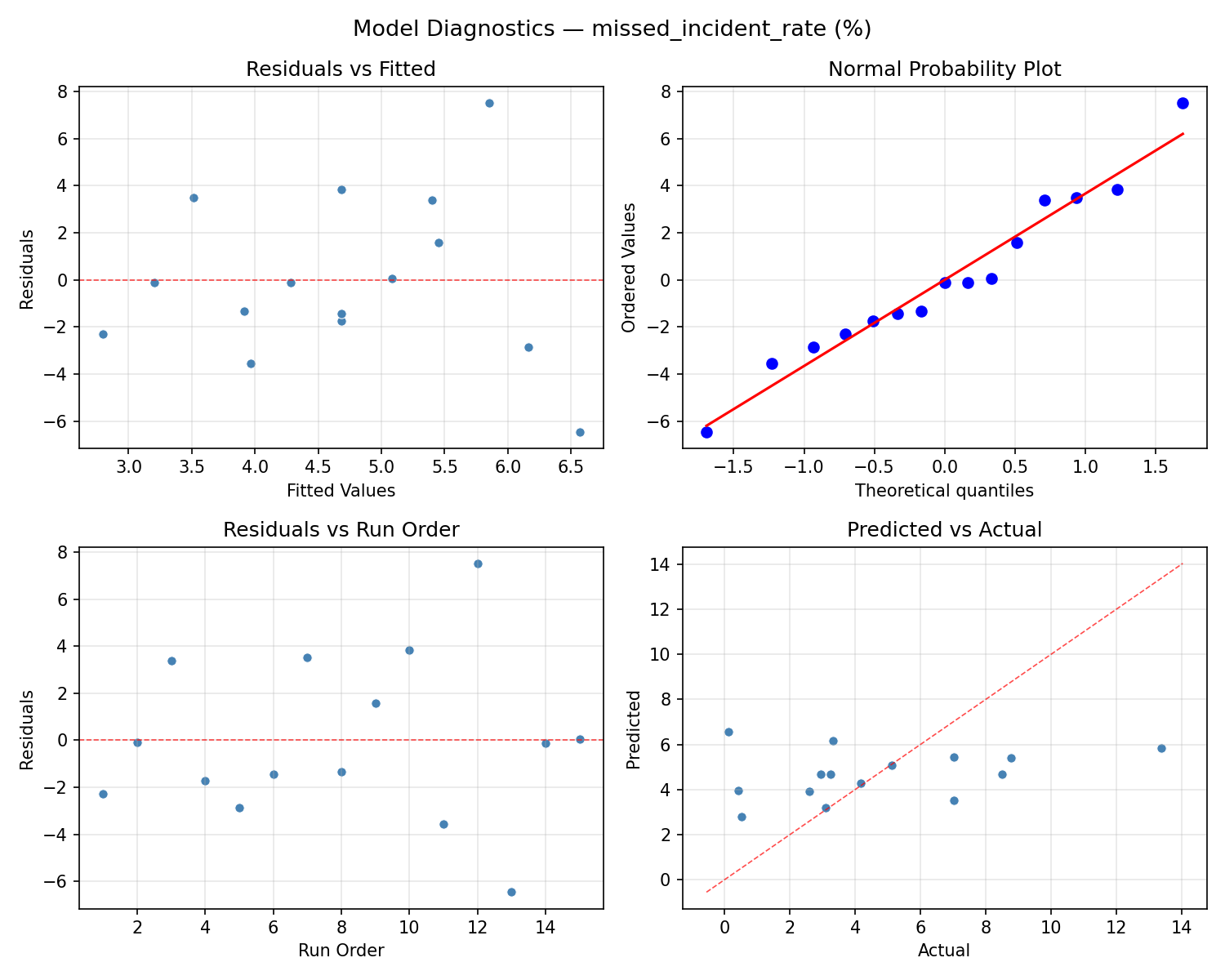

Model Diagnostics

Response Surface Plots

3D surfaces fitted with quadratic RSM. Red dots are observed data points.

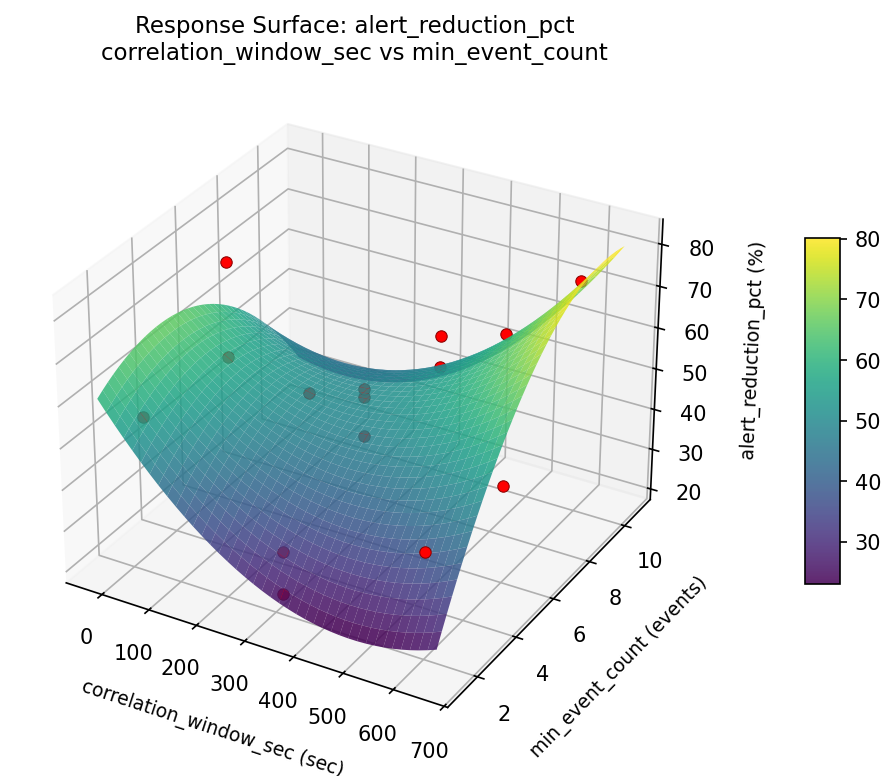

alert reduction pct correlation window sec vs min event count

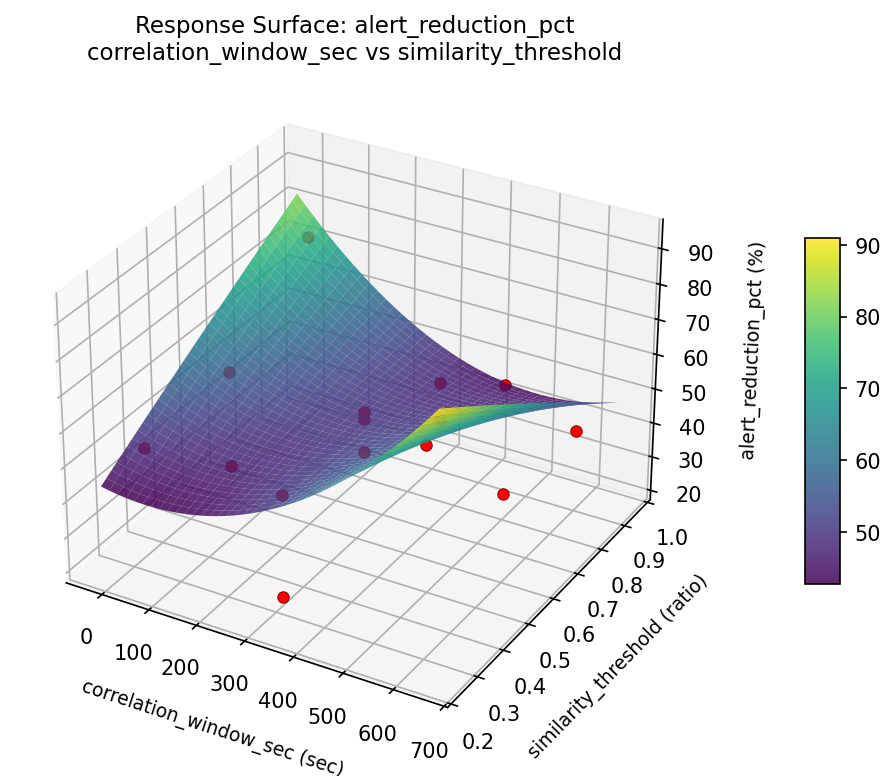

alert reduction pct correlation window sec vs similarity threshold

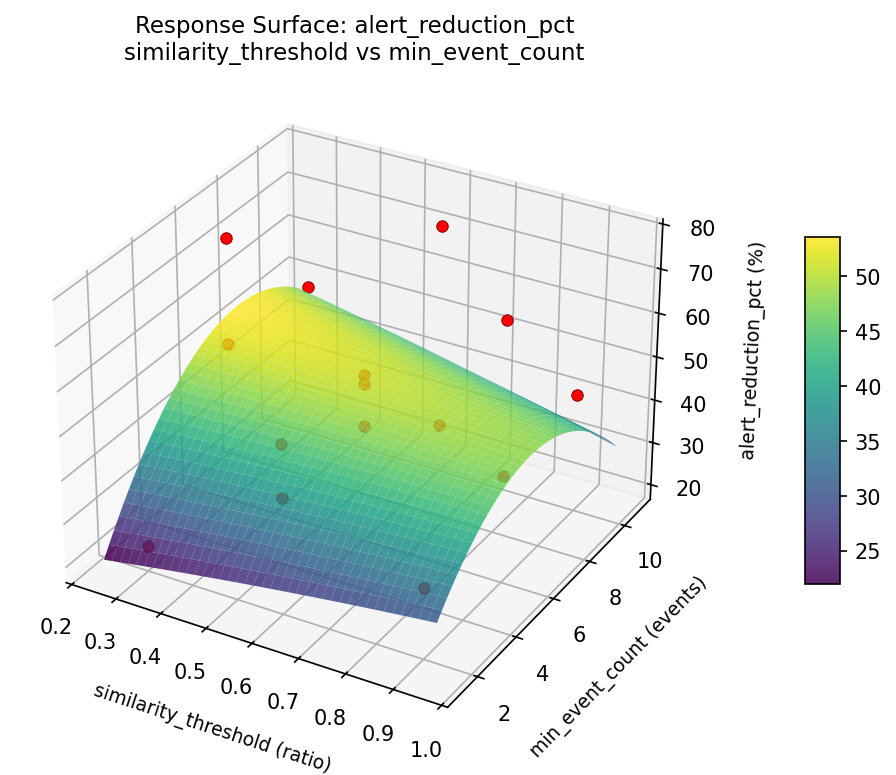

alert reduction pct similarity threshold vs min event count

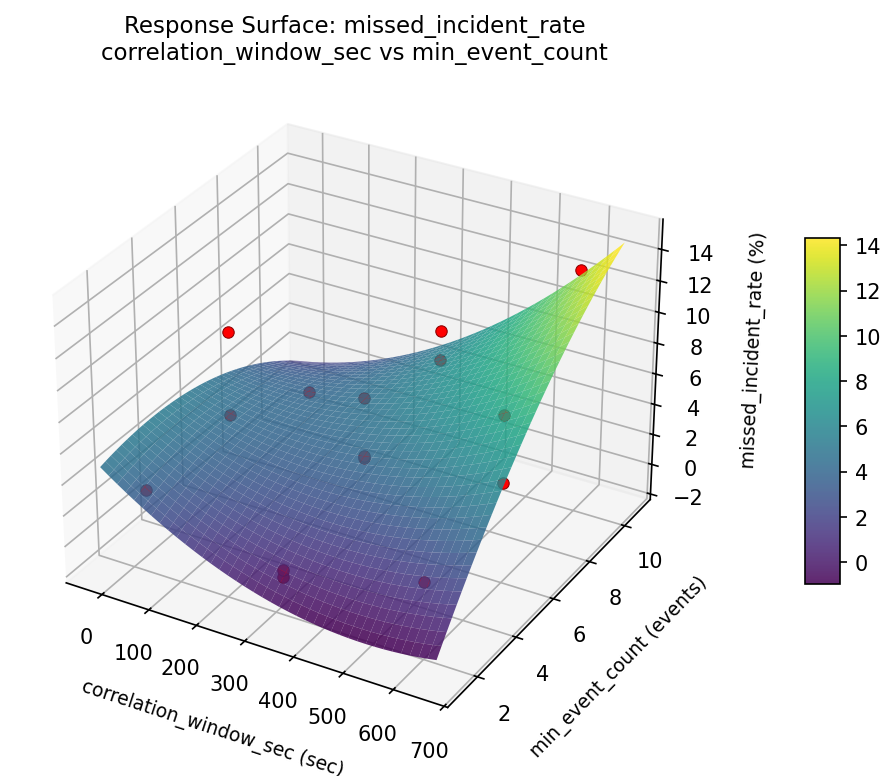

missed incident rate correlation window sec vs min event count

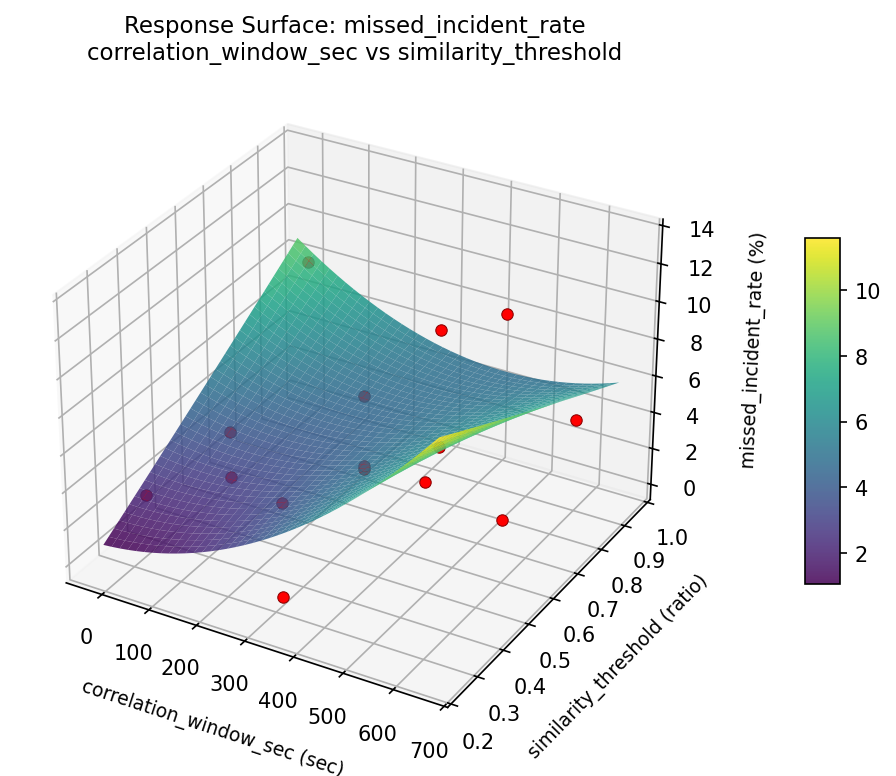

missed incident rate correlation window sec vs similarity threshold

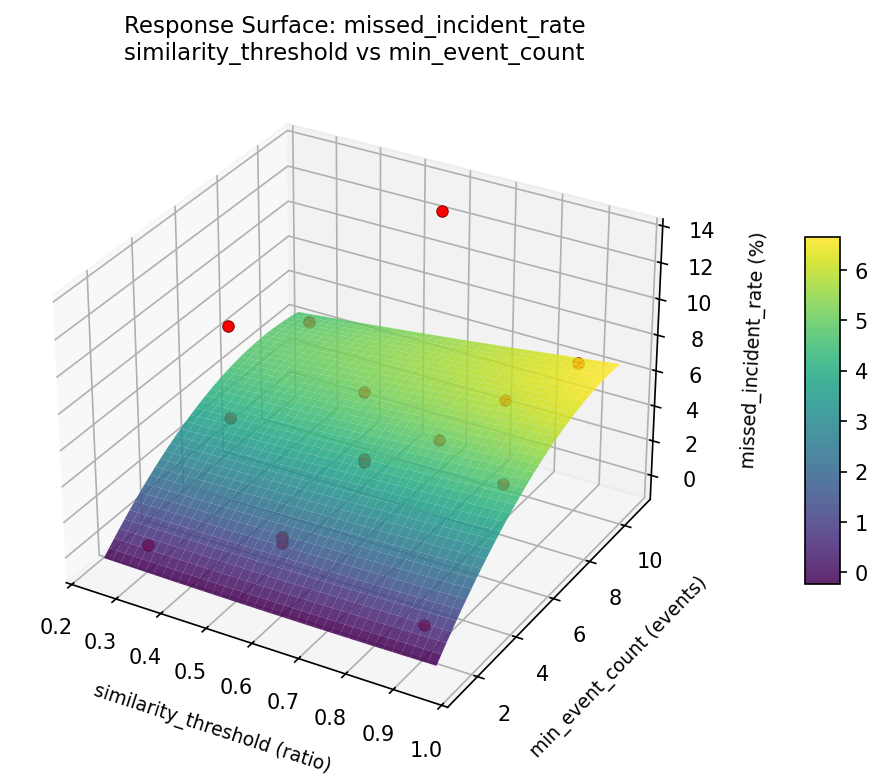

missed incident rate similarity threshold vs min event count

Multi-Objective Optimization

When responses compete, Derringer–Suich desirability finds the best compromise. Each response is scaled to a 0–1 desirability, then combined via a weighted geometric mean.

Overall Desirability

D = 0.6594

Per-Response Desirability

Response	Weight	Desirability	Predicted	Dir
`alert_reduction_pct`	1.5	0.9545	77.00 0.9545 77.00 %	↑
`missed_incident_rate`	1.0	0.3787	8.51 0.3787 8.51 %	↓

Recommended Settings

Factor	Value
`correlation_window_sec`	600 sec
`similarity_threshold`	0.3 ratio
`min_event_count`	6 events

Source: from observed run #10

Trade-off Summary

Sacrifice = how much worse than single-objective best.

Response	Predicted	Best Observed	Sacrifice
`missed_incident_rate`	8.51	0.11	+8.40

Top 3 Runs by Desirability

Run	D	Factor Settings
#4	0.6528	correlation_window_sec=315, similarity_threshold=0.9, min_event_count=10
#6	0.6413	correlation_window_sec=30, similarity_threshold=0.3, min_event_count=6

Model Quality

Response	R²	Type
`missed_incident_rate`	0.3289	linear

Full Multi-Objective Output

doe optimize --multi
============================================================
MULTI-OBJECTIVE OPTIMIZATION
Method: Derringer-Suich Desirability Function
============================================================

Overall desirability: D = 0.6594

Response                  Weight Desirability    Predicted  Direction
---------------------------------------------------------------------
alert_reduction_pct          1.5       0.9545       77.00 %   ↑
missed_incident_rate         1.0       0.3787        8.51 %   ↓

Recommended settings:
  correlation_window_sec = 600 sec
  similarity_threshold = 0.3 ratio
  min_event_count = 6 events
  (from observed run #10)

Trade-off summary:
  alert_reduction_pct: 77.00 (best observed: 77.00, sacrifice: +0.00)
  missed_incident_rate: 8.51 (best observed: 0.11, sacrifice: +8.40)

Model quality:
  alert_reduction_pct: R² = 0.2435 (linear)
  missed_incident_rate: R² = 0.3289 (linear)

Top 3 observed runs by overall desirability:
  1. Run #10 (D=0.6594): correlation_window_sec=600, similarity_threshold=0.3, min_event_count=6
  2. Run #4 (D=0.6528): correlation_window_sec=315, similarity_threshold=0.9, min_event_count=10
  3. Run #6 (D=0.6413): correlation_window_sec=30, similarity_threshold=0.3, min_event_count=6

Full Analysis Output

doe analyze
=== Main Effects: alert_reduction_pct ===
Factor                   Effect    Std Error   % Contribution
--------------------------------------------------------------
similarity_threshold    23.6964       4.2596            47.0%
correlation_window_sec    18.1607       4.2596            36.1%
min_event_count          8.5143       4.2596            16.9%

=== ANOVA Table: alert_reduction_pct ===
Source                      DF           SS           MS          F    p-value
-----------------------------------------------------------------------------
correlation_window_sec       2     843.8733     421.9366      7.705     0.0136
similarity_threshold         2    1438.1000     719.0500     13.130     0.0030
min_event_count              2     198.8133      99.4066      1.815     0.2239
Lack of Fit                  6    1219.9561     203.3260      3.713     0.2273
Pure Error                   2     109.5267      54.7633
Error                        8    1329.4828      54.7633
Total                       14    3810.2693     272.1621

=== Summary Statistics: alert_reduction_pct ===

correlation_window_sec:
  Level               N       Mean        Std        Min        Max
  ------------------------------------------------------------
  30                  4    50.7000    20.8610    27.5000    77.0000
  315                 7    56.0857    13.7421    41.0000    75.8000
  600                 4    37.9250    13.2638    22.4000    53.0000

similarity_threshold:
  Level               N       Mean        Std        Min        Max
  ------------------------------------------------------------
  0.3                 4    51.0750    18.9167    32.7000    77.0000
  0.6                 7    40.7286    11.9991    22.4000    54.7000
  0.9                 4    64.4250    12.0384    53.0000    75.8000

min_event_count:
  Level               N       Mean        Std        Min        Max
  ------------------------------------------------------------
  10                  4    43.8000    23.6850    22.4000    73.8000
  2                   4    51.4250    16.2514    43.1000    75.8000
  6                   7    52.3143    13.7610    32.7000    77.0000

=== Main Effects: missed_incident_rate ===
Factor                   Effect    Std Error   % Contribution
--------------------------------------------------------------
similarity_threshold     3.5143       0.9476            38.2%
correlation_window_sec     3.0286       0.9476            32.9%
min_event_count          2.6668       0.9476            29.0%

=== ANOVA Table: missed_incident_rate ===
Source                      DF           SS           MS          F    p-value
-----------------------------------------------------------------------------
correlation_window_sec       2      23.3573      11.6787     34.796     0.0001
similarity_threshold         2      32.7878      16.3939     48.845     0.0000
min_event_count              2      18.1332       9.0666     27.013     0.0003
Lack of Fit                  6     113.6247      18.9375     56.423     0.0175
Pure Error                   2       0.6713       0.3356
Error                        8     114.2960       0.3356
Total                       14     188.5743      13.4696

=== Summary Statistics: missed_incident_rate ===

correlation_window_sec:
  Level               N       Mean        Std        Min        Max
  ------------------------------------------------------------
  30                  4     4.7250     3.7093     0.4200     8.5100
  315                 7     5.7686     3.9438     2.5900    13.3700
  600                 4     2.7400     3.1947     0.1100     7.0300

similarity_threshold:
  Level               N       Mean        Std        Min        Max
  ------------------------------------------------------------
  0.3                 4     4.1850     3.4471     0.5100     8.5100
  0.6                 7     3.5857     2.7824     0.1100     7.0300
  0.9                 4     7.1000     4.9561     2.9500    13.3700

min_event_count:
  Level               N       Mean        Std        Min        Max
  ------------------------------------------------------------
  10                  4     4.7575     6.1840     0.1100    13.3700
  2                   4     6.3525     2.6398     2.5900     8.7700
  6                   7     3.6857     2.4086     0.5100     8.5100

Optimization Recommendations

doe optimize
=== Optimization: alert_reduction_pct ===
Direction: maximize

Best observed run: #10
  correlation_window_sec = 315
  similarity_threshold = 0.3
  min_event_count = 2
  Value: 77.0

RSM Model (linear, R² = 0.1508, Adj R² = -0.0808):
  Coefficients:
    intercept                      +49.8067
    correlation_window_sec         +1.9375
    similarity_threshold           -3.4375
    min_event_count                -7.5000

RSM Model (quadratic, R² = 0.5383, Adj R² = -0.2929):
  Coefficients:
    intercept                      +57.3000
    correlation_window_sec         +1.9375
    similarity_threshold           -3.4375
    min_event_count                -7.5000
    correlation_window_sec*similarity_threshold +8.4500
    correlation_window_sec*min_event_count +6.6250
    similarity_threshold*min_event_count -1.5750
    correlation_window_sec^2       -8.0250
    similarity_threshold^2         +6.5250
    min_event_count^2              -12.5500

  Curvature analysis:
    min_event_count                coef=-12.5500  concave (has a maximum)
    correlation_window_sec         coef=-8.0250  concave (has a maximum)
    similarity_threshold           coef=+6.5250  convex (has a minimum)

  Notable interactions:
    correlation_window_sec*similarity_threshold coef=+8.4500  (synergistic)
    correlation_window_sec*min_event_count coef=+6.6250  (synergistic)
    similarity_threshold*min_event_count coef=-1.5750  (antagonistic)

  Predicted optimum (from linear model, at observed points):
    correlation_window_sec = 315
    similarity_threshold = 0.3
    min_event_count = 2
    Predicted value: 60.7442

  Surface optimum (via L-BFGS-B, linear model):
    correlation_window_sec = 600
    similarity_threshold = 0.3
    min_event_count = 2
    Predicted value: 62.6817

  Model quality: Weak fit — consider adding center points or using a different design.

Factor importance:
  1. min_event_count  (effect: 19.9, contribution: 48.8%)
  2. similarity_threshold  (effect: 11.4, contribution: 27.9%)
  3. correlation_window_sec  (effect: 9.5, contribution: 23.3%)

=== Optimization: missed_incident_rate ===
Direction: minimize

Best observed run: #13
  correlation_window_sec = 315
  similarity_threshold = 0.9
  min_event_count = 10
  Value: 0.11

RSM Model (linear, R² = 0.1462, Adj R² = -0.0866):
  Coefficients:
    intercept                      +4.6827
    correlation_window_sec         +0.9575
    similarity_threshold           -0.0475
    min_event_count                -1.5900

RSM Model (quadratic, R² = 0.5258, Adj R² = -0.3277):
  Coefficients:
    intercept                      +5.2967
    correlation_window_sec         +0.9575
    similarity_threshold           -0.0475
    min_event_count                -1.5900
    correlation_window_sec*similarity_threshold +1.1175
    correlation_window_sec*min_event_count +2.1725
    similarity_threshold*min_event_count +0.5525
    correlation_window_sec^2       +0.3879
    similarity_threshold^2         +1.5079
    min_event_count^2              -3.0471

  Curvature analysis:
    min_event_count                coef=-3.0471  concave (has a maximum)
    similarity_threshold           coef=+1.5079  convex (has a minimum)
    correlation_window_sec         coef=+0.3879  convex (has a minimum)

  Notable interactions:
    correlation_window_sec*min_event_count coef=+2.1725  (synergistic)
    correlation_window_sec*similarity_threshold coef=+1.1175  (synergistic)
    similarity_threshold*min_event_count coef=+0.5525  (synergistic)

  Predicted optimum (from linear model, at observed points):
    correlation_window_sec = 600
    similarity_threshold = 0.6
    min_event_count = 2
    Predicted value: 7.2302

  Surface optimum (via L-BFGS-B, linear model):
    correlation_window_sec = 30
    similarity_threshold = 0.9
    min_event_count = 10
    Predicted value: 2.0877

  Model quality: Weak fit — consider adding center points or using a different design.

Factor importance:
  1. min_event_count  (effect: 4.8, contribution: 56.6%)
  2. correlation_window_sec  (effect: 1.9, contribution: 22.7%)
  3. similarity_threshold  (effect: 1.7, contribution: 20.7%)

Run	`correlation_window_sec`	`similarity_threshold`	`min_event_count`
1	315	0.3	2
2	315	0.6	6
3	600	0.6	10
4	600	0.6	2
5	315	0.6	6
6	315	0.6	6
7	30	0.6	10
8	600	0.3	6
9	315	0.3	10
10	600	0.9	6
11	30	0.6	2
12	315	0.9	10
13	30	0.3	6
14	30	0.9	6
15	315	0.9	2

Run	`correlation_window_sec`	`similarity_threshold`	`min_event_count`
1	315	0.3	2
2	315	0.6	6
3	600	0.6	10
4	600	0.6	2
5	315	0.6	6
6	315	0.6	6
7	30	0.6	10
8	600	0.3	6
9	315	0.3	10
10	600	0.9	6
11	30	0.6	2
12	315	0.9	10
13	30	0.3	6
14	30	0.9	6
15	315	0.9	2

Run	`correlation_window_sec`	`similarity_threshold`	`min_event_count`
1	315	0.3	2
2	315	0.6	6
3	600	0.6	10
4	600	0.6	2
5	315	0.6	6
6	315	0.6	6
7	30	0.6	10
8	600	0.3	6
9	315	0.3	10
10	600	0.9	6
11	30	0.6	2
12	315	0.9	10
13	30	0.3	6
14	30	0.9	6
15	315	0.9	2
