Summary
This experiment investigates compiler optimization flags screening. Screen GCC 13 compiler flags to minimize execution time and binary size for NPB BT benchmark.
The design varies 7 factors: opt level, ranging from O2 to O3, vectorize, ranging from off to avx512, lto, ranging from off to on, march, ranging from native to znver3, unroll, ranging from off to on, fast math, ranging from off to on, and pgo, ranging from off to on. The goal is to optimize 2 responses: exec time (sec) (maximize) and binary size (MB) (maximize).
A Plackett-Burman screening design was used to efficiently test 7 factors in only 8 runs. This design assumes interactions are negligible and focuses on identifying the most influential main effects.
Key Findings
For exec time, the most influential factors were vectorize (30.0%), fast math (24.6%), pgo (18.2%). The best observed value was 103.48 (at opt level = O2, vectorize = avx512, lto = off).
For binary size, the most influential factors were vectorize (32.3%), lto (26.3%), march (20.6%). The best observed value was 28.13 (at opt level = O3, vectorize = off, lto = off).
Recommended Next Steps
- Follow up with a response surface design (CCD or Box-Behnken) on the top 3–4 factors to model curvature and find the true optimum.
- Consider whether any fixed factors should be varied in a future study.
- The screening results can guide factor reduction — drop factors contributing less than 5% and re-run with a smaller, more focused design.
Experimental Setup
Factors
| Factor | Levels | Type | Unit |
|---|---|---|---|
opt_level | O2, O3 | categorical | |
vectorize | off, avx512 | categorical | |
lto | off, on | categorical | |
march | native, znver3 | categorical | |
unroll | off, on | categorical | |
fast_math | off, on | categorical | |
pgo | off, on | categorical |
Fixed: none
Responses
| Response | Direction | Unit |
|---|---|---|
exec_time | ↑ maximize | sec |
binary_size | ↑ maximize | MB |
Experimental Matrix
The Plackett-Burman Design produces 8 runs. Each row is one experiment with specific factor settings.
| Run | opt_level | vectorize | lto | march | unroll | fast_math | pgo |
|---|---|---|---|---|---|---|---|
| 1 | O3 | avx512 | on | native | off | off | off |
| 2 | O2 | off | on | znver3 | off | off | on |
| 3 | O2 | avx512 | off | znver3 | off | on | off |
| 4 | O3 | avx512 | on | znver3 | on | on | on |
| 5 | O2 | avx512 | off | native | on | off | on |
| 6 | O3 | off | off | znver3 | on | off | off |
| 7 | O2 | off | on | native | on | on | off |
| 8 | O3 | off | off | native | off | on | on |
How to Run
terminal
$ doe info --config use_cases/13_compiler_flags/config.json
$ doe generate --config use_cases/13_compiler_flags/config.json --output results/run.sh --seed 42
$ bash results/run.sh
$ doe analyze --config use_cases/13_compiler_flags/config.json
$ doe optimize --config use_cases/13_compiler_flags/config.json
$ doe report --config use_cases/13_compiler_flags/config.json --output report.html
Analysis Results
Generated from actual experiment runs.
Response: exec_time

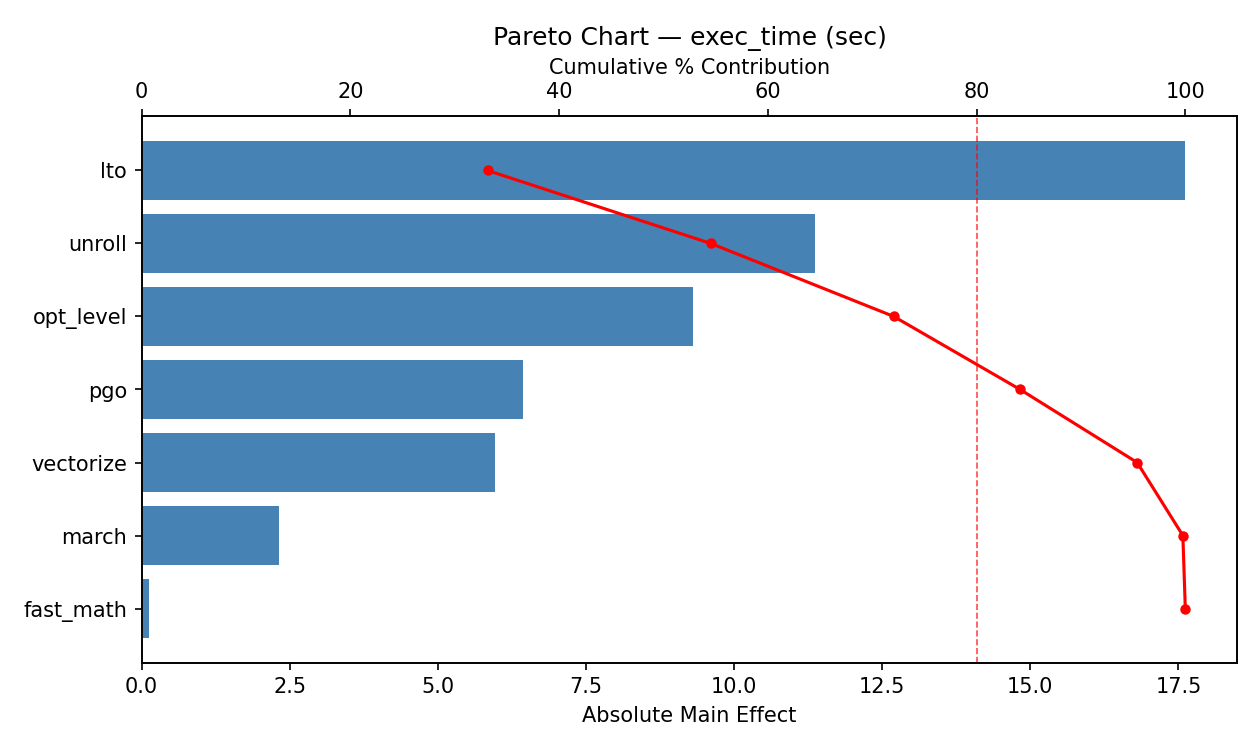

Pareto Chart

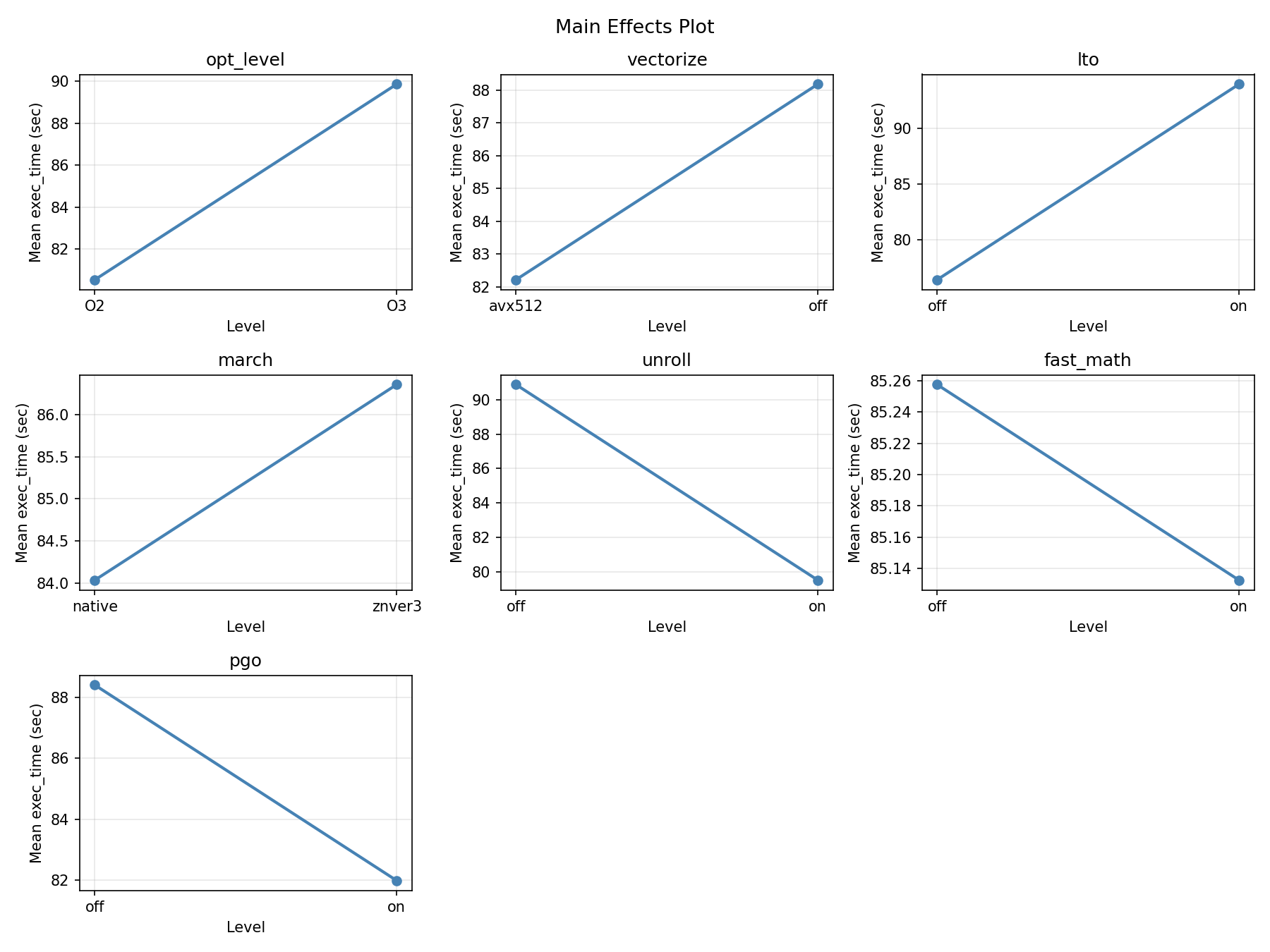

Main Effects Plot
Response: binary_size

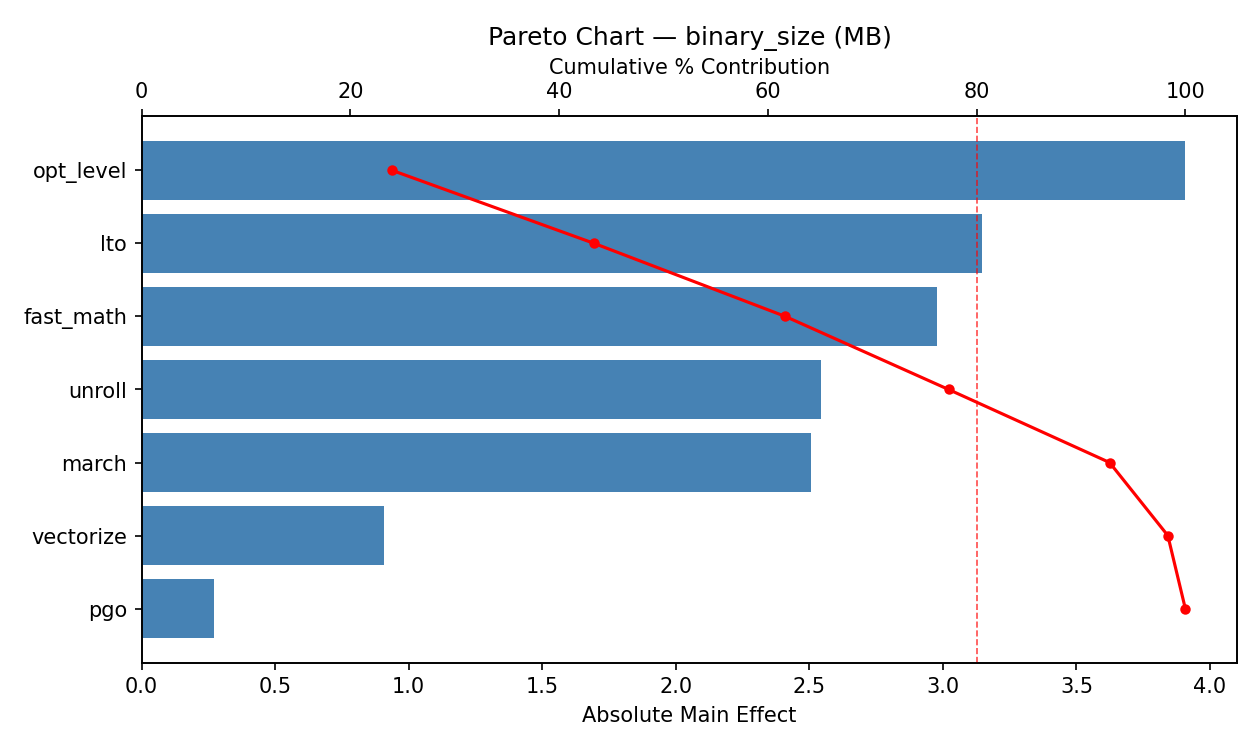

Pareto Chart

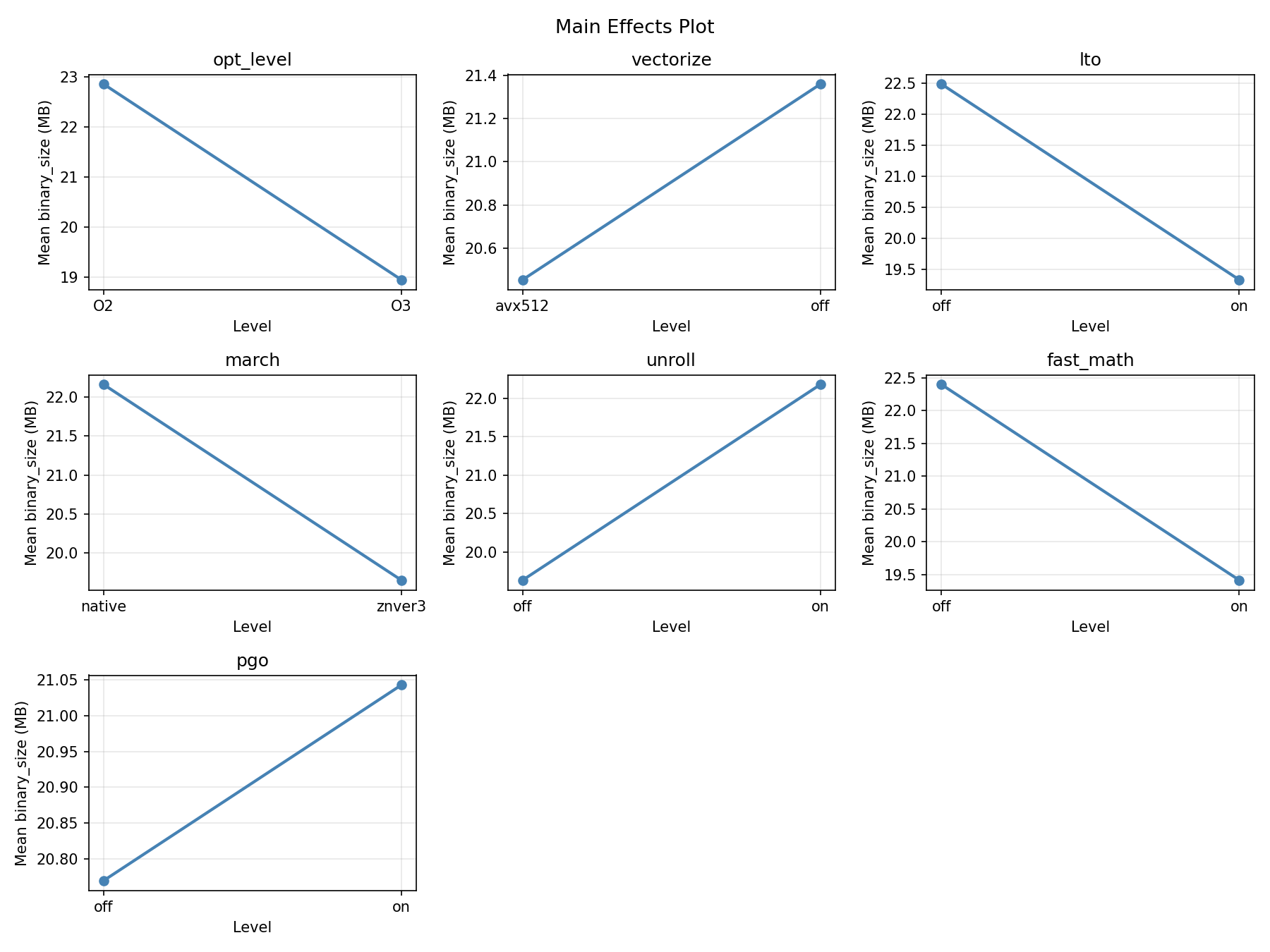

Main Effects Plot
Full Analysis Output
doe analyze
=== Main Effects: exec_time ===
Factor Effect Std Error % Contribution
--------------------------------------------------------------
march -15.0650 4.6622 25.9%
opt_level -11.3700 4.6622 19.5%
fast_math -9.3150 4.6622 16.0%
lto -8.9800 4.6622 15.4%
vectorize 8.5100 4.6622 14.6%
unroll 2.6750 4.6622 4.6%
pgo -2.3250 4.6622 4.0%
=== Interaction Effects: exec_time ===
Factor A Factor B Interaction % Contribution
------------------------------------------------------------------------
opt_level unroll -15.0650 8.6%
vectorize fast_math 15.0650 8.6%
lto pgo -15.0650 8.6%
vectorize lto 11.3700 6.5%
march unroll -11.3700 6.5%
fast_math pgo -11.3700 6.5%
opt_level pgo -9.3150 5.3%
vectorize march 9.3150 5.3%
lto unroll -9.3150 5.3%
opt_level vectorize 8.9800 5.1%
march pgo -8.9800 5.1%
unroll fast_math -8.9800 5.1%
opt_level lto -8.5100 4.9%
march fast_math -8.5100 4.9%
unroll pgo -8.5100 4.9%
opt_level march 2.6750 1.5%
vectorize pgo -2.6750 1.5%
lto fast_math 2.6750 1.5%
opt_level fast_math -2.3250 1.3%
vectorize unroll 2.3250 1.3%
lto march -2.3250 1.3%
=== Summary Statistics: exec_time ===
opt_level:
Level N Mean Std Min Max
------------------------------------------------------------
O2 4 90.8800 11.0119 78.7500 103.4800
O3 4 79.5100 14.0819 58.7500 88.6300
vectorize:
Level N Mean Std Min Max
------------------------------------------------------------
avx512 4 80.9400 18.3360 58.7500 103.4800
off 4 89.4500 4.6107 85.2700 96.0200
lto:
Level N Mean Std Min Max
------------------------------------------------------------
off 4 89.6850 10.2347 78.7500 103.4800
on 4 80.7050 15.7238 58.7500 96.0200
march:
Level N Mean Std Min Max
------------------------------------------------------------
native 4 92.7275 8.9852 82.7800 103.4800
znver3 4 77.6625 13.1800 58.7500 87.8800
unroll:
Level N Mean Std Min Max
------------------------------------------------------------
off 4 83.8575 4.1641 78.7500 88.6300
on 4 86.5325 19.5867 58.7500 103.4800
fast_math:
Level N Mean Std Min Max
------------------------------------------------------------
off 4 89.8525 9.3206 82.7800 103.4800
on 4 80.5375 16.1564 58.7500 96.0200
pgo:
Level N Mean Std Min Max
------------------------------------------------------------
off 4 86.3575 7.4466 78.7500 96.0200
on 4 84.0325 18.6197 58.7500 103.4800
=== Main Effects: binary_size ===
Factor Effect Std Error % Contribution
--------------------------------------------------------------
fast_math 3.9075 1.3051 24.9%
lto 3.6525 1.3051 23.2%
opt_level 2.5425 1.3051 16.2%
pgo 2.5075 1.3051 16.0%
vectorize -2.4725 1.3051 15.7%
unroll -0.4025 1.3051 2.6%
march -0.2325 1.3051 1.5%
=== Interaction Effects: binary_size ===
Factor A Factor B Interaction % Contribution
------------------------------------------------------------------------
opt_level pgo 3.9075 8.3%
vectorize march -3.9075 8.3%
lto unroll 3.9075 8.3%
opt_level vectorize -3.6525 7.7%
march pgo 3.6525 7.7%
unroll fast_math 3.6525 7.7%
vectorize lto -2.5425 5.4%
march unroll 2.5425 5.4%
fast_math pgo 2.5425 5.4%
opt_level fast_math 2.5075 5.3%
vectorize unroll -2.5075 5.3%
lto march 2.5075 5.3%
opt_level lto 2.4725 5.2%
march fast_math 2.4725 5.2%
unroll pgo 2.4725 5.2%
opt_level march -0.4025 0.9%
vectorize pgo 0.4025 0.9%
lto fast_math -0.4025 0.9%
opt_level unroll -0.2325 0.5%
vectorize fast_math 0.2325 0.5%
lto pgo -0.2325 0.5%
=== Summary Statistics: binary_size ===
opt_level:
Level N Mean Std Min Max
------------------------------------------------------------
O2 4 19.6350 1.0616 18.2600 20.8400
O3 4 22.1775 5.1339 15.5900 28.1300
vectorize:
Level N Mean Std Min Max
------------------------------------------------------------
avx512 4 22.1425 4.3326 18.2600 28.1300
off 4 19.6700 2.9911 15.5900 22.6400
lto:
Level N Mean Std Min Max
------------------------------------------------------------
off 4 19.0800 2.9489 15.5900 22.6400
on 4 22.7325 3.7688 19.6100 28.1300
march:
Level N Mean Std Min Max
------------------------------------------------------------
native 4 21.0225 2.0036 18.2600 22.6400
znver3 4 20.7900 5.2672 15.5900 28.1300
unroll:
Level N Mean Std Min Max
------------------------------------------------------------
off 4 21.1075 1.6090 19.6100 22.6400
on 4 20.7050 5.3941 15.5900 28.1300
fast_math:
Level N Mean Std Min Max
------------------------------------------------------------
off 4 18.9525 2.8143 15.5900 22.3500
on 4 22.8600 3.7006 19.8300 28.1300
pgo:
Level N Mean Std Min Max
------------------------------------------------------------
off 4 19.6525 2.8995 15.5900 22.3500
on 4 22.1600 4.3812 18.2600 28.1300
Optimization Recommendations
doe optimize
=== Optimization: exec_time ===
Direction: maximize
Best observed run: #6
opt_level = O2
vectorize = avx512
lto = off
march = znver3
unroll = off
fast_math = on
pgo = off
Value: 103.48
RSM Model (linear, R² = 1.00):
Coefficients:
intercept: +85.1950
opt_level: +1.9725
vectorize: -1.5250
lto: +3.6325
march: +7.9675
unroll: -4.4900
fast_math: +5.0625
pgo: -4.8450
Predicted optimum:
opt_level = O2
vectorize = avx512
lto = off
march = znver3
unroll = off
fast_math = on
pgo = off
Predicted value: 103.4800
Factor importance:
1. march (effect: 15.9, contribution: 27.0%)
2. fast_math (effect: 10.1, contribution: 17.2%)
3. pgo (effect: -9.7, contribution: 16.4%)
4. unroll (effect: -9.0, contribution: 15.2%)
5. lto (effect: 7.3, contribution: 12.3%)
6. opt_level (effect: 3.9, contribution: 6.7%)
7. vectorize (effect: -3.0, contribution: 5.2%)
=== Optimization: binary_size ===
Direction: maximize
Best observed run: #4
opt_level = O2
vectorize = avx512
lto = off
march = native
unroll = on
fast_math = off
pgo = on
Value: 28.13
RSM Model (linear, R² = 1.00):
Coefficients:
intercept: +20.9062
opt_level: -0.1763
vectorize: -1.5613
lto: -0.5512
march: -2.3313
unroll: +1.8262
fast_math: -0.5862
pgo: +0.1913
Predicted optimum:
opt_level = O2
vectorize = avx512
lto = off
march = native
unroll = on
fast_math = off
pgo = on
Predicted value: 28.1300
Factor importance:
1. march (effect: -4.7, contribution: 32.3%)
2. unroll (effect: 3.7, contribution: 25.3%)
3. vectorize (effect: -3.1, contribution: 21.6%)
4. fast_math (effect: -1.2, contribution: 8.1%)
5. lto (effect: -1.1, contribution: 7.6%)
6. pgo (effect: 0.4, contribution: 2.6%)
7. opt_level (effect: -0.4, contribution: 2.4%)
Multi-Objective Optimization
When responses compete, Derringer–Suich desirability finds the best compromise. Each response is scaled to a 0–1 desirability, then combined via a weighted geometric mean.
Overall Desirability
D = 0.7228
Per-Response Desirability
| Response | Weight | Desirability | Predicted | Dir |
|---|---|---|---|---|
exec_time |
1.5 |
0.8062
|
96.18 0.8062 96.18 sec | ↑ |
binary_size |
1.0 |
0.6136
|
23.43 0.6136 23.43 MB | ↑ |
Recommended Settings
| Factor | Value |
|---|---|
opt_level | O2 |
vectorize | off |
lto | off |
march | native |
unroll | on |
fast_math | on |
pgo | off |
Source: from RSM model prediction
Trade-off Summary
Sacrifice = how much worse than single-objective best.
| Response | Predicted | Best Observed | Sacrifice |
|---|---|---|---|
binary_size | 23.43 | 28.13 | +4.70 |
Top 3 Runs by Desirability
| Run | D | Factor Settings |
|---|---|---|
| #2 | 0.6124 | opt_level=O3, vectorize=off, lto=off, march=native, unroll=off, fast_math=on, pgo=on |
| #6 | 0.5486 | opt_level=O2, vectorize=off, lto=on, march=native, unroll=on, fast_math=on, pgo=off |
Model Quality
| Response | R² | Type |
|---|---|---|
binary_size | 1.0000 | linear |
Full Multi-Objective Output
doe optimize --multi
============================================================
MULTI-OBJECTIVE OPTIMIZATION
Method: Derringer-Suich Desirability Function
============================================================
Overall desirability: D = 0.7228
Response Weight Desirability Predicted Direction
---------------------------------------------------------------------
exec_time 1.5 0.8062 96.18 sec ↑
binary_size 1.0 0.6136 23.43 MB ↑
Recommended settings:
opt_level = O2
vectorize = off
lto = off
march = native
unroll = on
fast_math = on
pgo = off
(from RSM model prediction)
Trade-off summary:
exec_time: 96.18 (best observed: 103.48, sacrifice: +7.30)
binary_size: 23.43 (best observed: 28.13, sacrifice: +4.70)
Model quality:
exec_time: R² = 1.0000 (linear)
binary_size: R² = 1.0000 (linear)
Top 3 observed runs by overall desirability:
1. Run #7 (D=0.6231): opt_level=O3, vectorize=off, lto=off, march=znver3, unroll=on, fast_math=off, pgo=off
2. Run #2 (D=0.6124): opt_level=O3, vectorize=off, lto=off, march=native, unroll=off, fast_math=on, pgo=on
3. Run #6 (D=0.5486): opt_level=O2, vectorize=off, lto=on, march=native, unroll=on, fast_math=on, pgo=off
